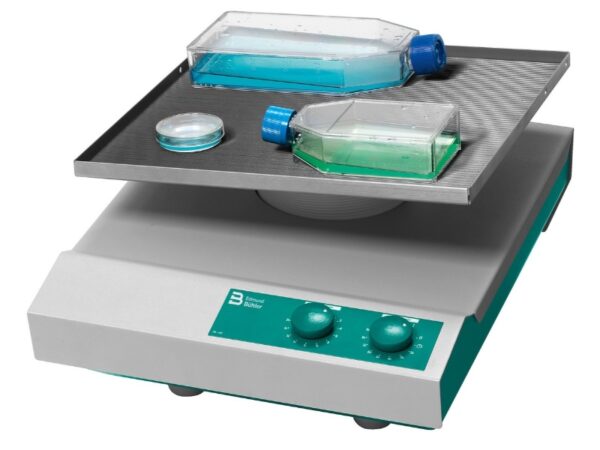

Edmund Buhler TL 10 Three-Dimensional Laboratory Shaker

three dimensional shaker for laboratory applications

Edmund Buhler TL 10 Three-Dimensional Laboratory Shaker

€2.512,00 excl. VAT

Estimated delivery time: 3-5 weeks

The TL 10 is a three-dimensional shaker from Edmund Buhler, with a slow and gentle wobbling motion. It suits labs that need to mix samples sensitive to foaming or shear, such as cell culture flasks or blotting membranes. Its 340 x 340 mm platform holds a maximum load of 10 kg, with a stepless speed range of 1 to 23 rpm. The tilt angle adjusts from 0 to 9 degrees, to match the motion amplitude to the protocol. A programmable timer from 0 to 120 minutes, or continuous operation, covers most laboratory applications. The TL 10 shares the same multi-tier rack system as the WS 10, so the setup can grow as needs change. It suits applications where a standard orbital shaker would agitate the sample too aggressively.

Edmund Buhler TL 10 Three-Dimensional Laboratory Shaker

A slow, gentle three-dimensional motion

The Edmund Buhler TL 10 produces a slow, gradual three-dimensional wobbling motion, built for samples sensitive to shear or foam formation.

This mode of agitation particularly suits cell culture flasks and Western blot protocols, where a classic orbital motion would be too energetic.

Adjustable tilt angle from 0 to 9 degrees

The platform tilt angle adjusts from 0 to 9 degrees, matching the three-dimensional motion amplitude to the vessel type and protocol.

Speed adjusts steplessly from 1 to 23 rpm, for fine control over mixing.

Platform and load capacity

The 340 x 340 mm platform holds a maximum load of 10 kg, with a programmable timer from 0 to 120 minutes or continuous operation.

Power supply of 230 V or 115 V, 50/60 Hz, to be specified at order
Ambient operating temperature from 5°C to 50°C
Maximum power consumption of 18 W, heat emission approximately 6 W

Rack system shared with the WS 10

The TL 10 uses the same multi-tier rack system (0051 247) as the WS 10: 2 trays of 340 x 340 mm with rubber mats, at a height of 200 mm.

Additional trays of 340 x 340 mm (0051 502) or 340 x 500 mm (0051 413) allow the available surface to be expanded.

Ideal Applications

The Edmund Buhler TL 10 suits the following applications.

Cell culture in flasks, sensitive to foam formation
Washing of Western blot membranes
Gentle mixing requiring minimal shear
Molecular biology and biochemistry laboratories
Protocols requiring an adjustable tilt angle

Choose the TL 10 when:

Your sample is sensitive to foam formation or shear
You need an adjustable tilt angle from 0 to 9 degrees
A classic orbital motion would agitate your sample too strongly
You want to add extra trays to the same rack over time
Your sample load stays under 10 kg

Buhler Value Proposition

The TL 10 combines a gentle three-dimensional motion with an adjustable tilt angle, for a shaker suited to the most sensitive samples.

Edmund Buhler has manufactured laboratory shakers in Germany since 1880 and remains a family-owned company.

Technical specifications – TL 10

Specification	TL 10
Product type	Three-dimensional (3D) shaker
Motion	Three-dimensional wobbling
Platform area	340 x 340 mm
Maximum load	10 kg
Shaking speed	1-23 rpm, stepless
Tilt angle	0-9 degrees, adjustable
Timer	0-120 min or continuous
Power supply	230 V or 115 V, 50/60 Hz
Power consumption	max. 18 W
Heat emission	approximately 6 W
Enclosure rating	IP 21
Ambient temperature	5°C to 50°C
Humidity tolerance	approximately 85%
Dimensions	355 x 450 x 205 mm
Weight	18.5 kg

Options and Accessories – TL 10

The TL 10 ships as standard with its platform and a rubber mat. A multi-tier rack system, shared with the WS 10, allows trays to be added as workload grows.
