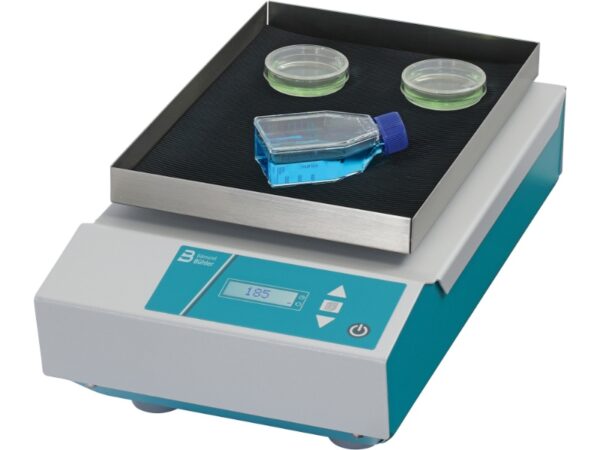

Edmund Buhler KM 2 Compact Orbital Laboratory Shaker

A compact orbital shaker for the bench

The Edmund Buhler KM 2 is a compact orbital shaker for general laboratory use. It suits small-volume samples in a reduced bench footprint.

Display and controls sit directly on the unit, with no external control box, for a simple setup.

Belt-free direct drive

The KM 2 uses a direct drive with no drive belt. This keeps maintenance low over the unit’s service life and gives a softer start suited to sensitive samples.

Platform and load capacity

The 200 x 295 mm platform holds a maximum load of 2 kg and runs from 5 to 220 rpm in steps of 5, with a 20 mm stroke.

• 9 Erlenmeyer flasks of 100 ml, or 2 flasks of 500 ml
• Runtime from 0 to 99 hours 59 minutes, or continuous
• Ambient operating temperature from 4°C to 45°C

Power supply and operating conditions

The universal 100-240 V, 50/60 Hz power supply covers most European electrical networks.

The unit tolerates ambient humidity up to approximately 95 percent, non-condensing, for standard laboratory use.

Ideal Applications

The Edmund Buhler KM 2 suits the following applications.

• Resuspension of small-volume samples
• Mixing and extraction in routine laboratory work
• General biology, chemistry, and microbiology labs
• Bench positions with limited space
• Continuous operation over long durations

Choose the KM 2 when:

• You need a compact orbital shaker for general use
• Your bench space is limited
• You want a belt-free unit with lower maintenance
• You do not need a remote external control box
• Your sample loads stay within 2 kg

Buhler Value Proposition

The KM 2 combines a belt-free drive, a compact platform, and direct on-unit controls, for a versatile orbital shaker for daily use.

Edmund Buhler has manufactured laboratory shakers in Germany since 1880 and remains a family-owned company.
