Scientz JY98-IIIDN Digital Ultrasonicator
Scientz JY98-IIIDN Digital Ultrasonicator
Original price was: €5.212,00.€4.690,80Current price is: €4.690,80. excl. VAT
The Scientz JY98-IIIDN is a high-power digital ultrasonicator for laboratories processing larger sample volumes from 50 ml to 1000 ml. With 1200 W ultrasonic power and a standard Ø20 mm probe, it is designed for more demanding homogenization, disruption, emulsification, extraction and dispersion workflows. The system combines a digital ultrasonic power supply with automatic frequency tracking and an automatic soundproof enclosure with motorized lift stage for reproducible probe positioning. Compared with the lower-power N-series models, the JY98-IIIDN is better suited for larger batches and higher energy input. Optional probes allow laboratories to adapt the system to different sample volumes and applications. It is a strong choice for laboratories that need a powerful ultrasonic homogenizer without moving to the largest 1500 W model.
High-Power Digital Ultrasonicator for Larger Laboratory Samples
The Scientz JY98-IIIDN is designed for laboratories that need a powerful digital ultrasonicator for larger-volume sample preparation. With 1200 W ultrasonic power, a standard Ø20 mm probe and compatibility with probes up to Ø25 mm, it is particularly suitable for research, biotechnology, pharmaceutical, food, environmental and materials laboratories working with higher sample volumes.
- Suitable for 50–1000 ml sample processing
- Standard Ø20 mm probe for efficient larger-volume sonication
- Ideal for homogenization, cell disruption, extraction, emulsification and dispersion
- Digital frequency tracking supports stable ultrasonic performance
- Choose this model when the JY92-IIDN range is too small, but 1500 W is not required
Scientz JY98-IIIDN Digital Ultrasonicator for Larger Sample Volumes
The Scientz JY98-IIIDN is a high-power digital ultrasonic homogenizer developed for laboratories that need to process larger sample volumes with controlled ultrasonic energy. As part of the Scientz N-series, it combines a digital ultrasonic power supply, automatic frequency tracking and a soundproof enclosure with motorized lift stage.
With a processing range of 50 ml to 1000 ml and 1200 W ultrasonic power, the JY98-IIIDN is positioned above the smaller 650 W and 900 W N-series models. It is intended for users who require more ultrasonic energy and a larger standard probe for efficient processing of medium to large laboratory samples.
1200 W Ultrasonic Power with Ø20 mm Standard Probe
The JY98-IIIDN is supplied with a Ø20 mm probe as standard. This makes it suitable for larger-volume processing from the start, especially for applications where a smaller Ø6 mm probe would be inefficient.
The 1200 W power level gives laboratories more processing capacity for demanding applications such as tissue disruption, emulsification, dispersion of particles, extraction and preparation of materials or biological samples.
Digital Power Supply with Automatic Frequency Tracking
The digital ultrasonic power supply automatically adapts to the optimal working frequency and tracks it during operation. This supports stable ultrasonic output and removes the need for manual frequency matching.
Power is adjustable from 1–100%, allowing users to adapt ultrasonic intensity to the sample type, volume and required processing effect.
Programmable and Reproducible Processing
The Scientz JY98-IIIDN supports programmable operation for laboratories that need repeatable workflows. Users can store up to 50 operating programs and use six-stage ultrasonic programming for more complex methods.
Key control features include:
- 50 stored operating programs
- Six-stage ultrasonic operation
- Adjustable timer from 1 to 999 minutes
- Temperature monitoring from 0–99°C
- Temperature, time and fault alarms
- Display of power, temperature and time
Complete N-Series Configuration

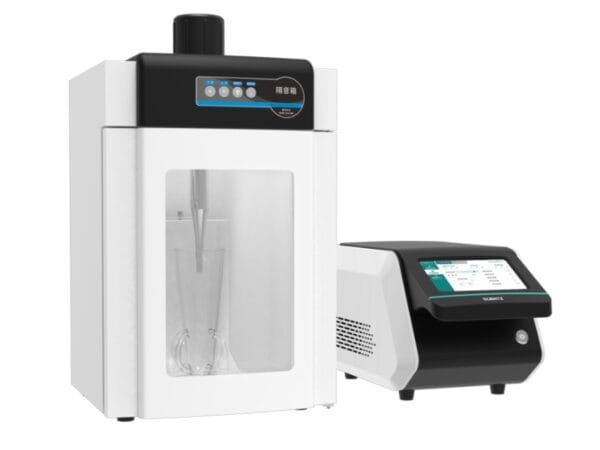

The JY98-IIIDN is supplied as a complete two-component system: the digital power supply and the automatic soundproof enclosure with motorized lift stage. This setup improves operator comfort, reduces noise exposure and supports reproducible probe immersion.
The transparent viewing window and internal lighting allow the user to observe the sonication process during operation.
Ideal Applications
The Scientz JY98-IIIDN is ideal for laboratories that need a digital ultrasonicator for larger sample volumes and higher ultrasonic energy input.
Ideal use cases include:
- Larger-volume cell and tissue disruption
- Homogenization of biological samples
- Emulsification of liquid samples
- Extraction of active compounds
- Dispersion of particles and nanomaterials
- Pharmaceutical, food, environmental and materials research
- Higher-volume ultrasonic homogenizer workflows
Choose the JY98-IIIDN when:
- You need to process 50–1000 ml sample volumes
- You want a standard Ø20 mm probe for larger samples
- You require more power than the JY92-IIN or JY92-IIDN
- You need optional compatibility with Ø25 mm probes
- You do not require the maximum 1500 W capacity of the JY99-IIDN
Scientz Value Proposition
Scientz ultrasonicators combine proven performance, broad application flexibility and strong value for European laboratories. The JY98-IIIDN offers a powerful digital ultrasonic homogenizer platform with soundproof enclosure, probe and motorized lift system included as standard.
For laboratories comparing premium ultrasonic homogenizer brands, Scientz provides a strong alternative with digital control, wide probe compatibility and practical standard equipment for reproducible sample processing.
Technical Specifications – Scientz JY98-IIIDN
| Specification | Scientz JY98-IIIDN |
|---|---|
| Product Type | Digital ultrasonic homogenizer / digital ultrasonicator |
| Configuration | Digital power supply + soundproof enclosure with motorized lift stage |
| Operating Frequency | 19.5–20.5 kHz, automatic tracking and adaptive |
| Sample Processing Volume | 50–1000 ml |
| Ultrasonic Power | 1200 W |
| Output Power | 1–100% |
| Standard Probe | Ø20 mm |
| Optional Probes | Ø10, Ø12, Ø15, Ø25 mm |
| Optional Beakers | 100 ml, 400 ml |
| Program Storage | 50 groups |
| Multi-Stage Programs | 6 stages |
| Timer | 1–999 minutes adjustable |
| Temperature Control | Temperature sensor, 0–99°C |
| Alarms | Temperature, time and fault alarms |
| Display Values | Power, temperature and time |
| Soundproof Enclosure | Automatic enclosure with motorized lift stage |
| Enclosure Dimensions | 345 × 345 × 535 mm |
| Standard Configuration | Generator main unit, titanium alloy transducer, Ø20 mm probe, automatic soundproof enclosure |
Options and Accessories – Scientz JY98-IIIDN
The Scientz JY98-IIIDN is supplied with a standard Ø20 mm probe, suitable for larger-volume processing from 500 ml to 1000 ml. Optional probes allow the system to be adapted to smaller or larger compatible sample volumes.
| Probe Diameter | Frequency | Amplification | Typical Capacity |
| Ø10 mm | 20–25 kHz | 150 µm | 100–200 ml |
| Ø12 mm | 20–25 kHz | 150 µm | 100–200 ml |
| Ø15 mm | 20–25 kHz / 19.5–20.5 kHz | 145 µm | 200–500 ml |
| Ø20 mm | 19.5–20.5 kHz | 60 µm | 500–1000 ml |
| Ø25 mm | 19.5–20.5 kHz | 40 µm | 500–1200 ml |
Available options and accessories:
- Ø10 mm probe for medium-volume processing
- Ø12 mm probe for medium-volume homogenization
- Ø15 mm probe for 200–500 ml sample volumes
- Ø25 mm probe for larger-volume applications
- 100 ml optional beaker
- 400 ml optional beaker
- Specialized breaking bottles
- Cell breaking beads
