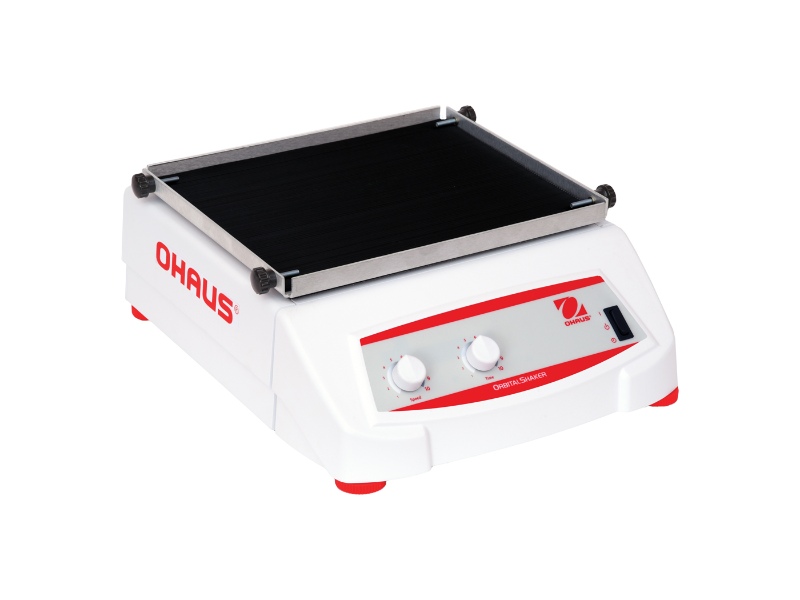

Ohaus SHHD1619AL Orbital Shaker
Original price was: €1.960,00.€1.570,00Current price is: €1.570,00. excl. VAT
- Motion: orbital
- Shaking platform: 280 mm × 330 mm
- Max load: 16 kg at 75 rpm, 2.3 kg at 500 rpm
- Shaking speed: 25 to 500 rpm
- Stroke: 19 mm
Ohaus SHHD1619AL Heavy Duty Orbital Shaker – Reliable Analog Control for Demanding Laboratory Applications
The Ohaus SHHD1619AL Heavy Duty Orbital Shaker is engineered for laboratories requiring consistent and precise shaking for medium to high-volume applications. With a 19 mm orbital motion and a speed range of 25 to 500 rpm, it ensures optimal performance for various applications including cell cultures, solubility studies, and protein analyses. The analog control system provides straightforward speed and time adjustments, ensuring consistent results. The shaker features a durable, cold-rolled steel housing and a sturdy aluminum tray with a non-slip rubber mat, making it both robust and easy to clean. Its compact design saves valuable bench space, and the maintenance-free brushless DC motor coupled with a triple eccentric drive system ensures stable and long-term operation. Safety features include a speed ramping function to prevent splashing and an automatic restart after power interruptions. The timer can be set from 1 minute to 120 minutes, providing flexibility for various experimental protocols. Additionally, the shaker is compatible with use in incubators and cold rooms, highlighting its adaptability to different experimental conditions.
Warranty: 2 years
Lead time: 1-2 weeks
| Motion | Orbital, 19 mm |
| Capacity | 16 kg |
| Speed Range | 25 rpm – 500 rpm |
| Tray Size | 11 in x 13 in (27.9 cm x 33 cm) (LxW) |
| Control | Analog |
| Drive System | Triple Eccentric; Brushless DC Motor |
| Calibration | Speed calibration |
| Dimensions | 16.3 in x 5.9 in x 14 in (41.3 cm x 14.9 cm x 35.5 cm) (LxHxW) |
| Net Weight | 48.1 lb (21.8 kg) |
| Orbit | 0.8 in (19 mm) |
| Power | 120V, 5A, 50/60Hz |
| Power Consumption | 75 W |
| Safety Certification | TUV |
| Speed Accuracy | ±1 rpm, Above 100 rpm ±1% of set speed |
| Speed Range | 25 rpm – 500 rpm |
| Timer | 1 minute – 120 minutes |
| Tray Construction | Aluminum |
| Working Environment | 32°F – 104°F, 80%RH, non-condensing (0°C – 40°C, 80%RH, non-condensing) |
30400084 Flask Clamp, 10 mL 60
30400085 Flask Clamp, 25 mL 25
30400086 Flask Clamp, 50 mL 13
30400087 Flask Clamp, 125 mL 10
30400088 Flask Clamp, 250 mL 9
30400089 Flask Clamp, 500 mL 7
30400090 1 Liter Erlenmeyer Flask Clamp 4
30400097 500 mL Media Bottle Clamp 5
30400098 1000 mL Media Bottle Clamp 2
30400099 Flask Clamp PVC 125 mL 10
30400100 Flask Clamp PVC 250 mL 8
30400101 Flask Clamp PVC 500 mL 5
30400102 Flask Clamp PVC 1000 mL 2
30400105 Test Tube Rack 13 mm Pivoting 1
30400106 Test Tube Rack 16 mm Pivoting 1
30400107 Test Tube Rack 20 mm Pivoting 1
30400108 Test Tube Rack 25 mm Pivoting 1
30400109 Test Tube Rack 30 mm Pivoting 1
30400114 Micro Tube Rack 2
30400115 Test Tube Rack 10-13 mm Diameter 2
30400116 Test Tube Rack 14-16 mm Diameter 2
30400117 Test Tube Rack 18-20 mm Diameter 2
30400118 Test Tube Rack 22-25 mm Diameter 2
30400119 Test Tube Rack For 15 mL Tubes 2
30400120 Test Tube Rack For 50 mL Tubes 2
30400104 Clamp Microplate Stainless Steel 4
30400060 Rubber Mat, 28 × 33 cm 1
