Edmund Buhler SM 30 C Universal Reversible Shaker

universal orbital shaker sm 30 a for laboratory use up to 30 kg

Edmund Buhler SM 30 C Universal Reversible Shaker

€1.499,00 excl. VAT

Estimated delivery time: 3-5 weeks

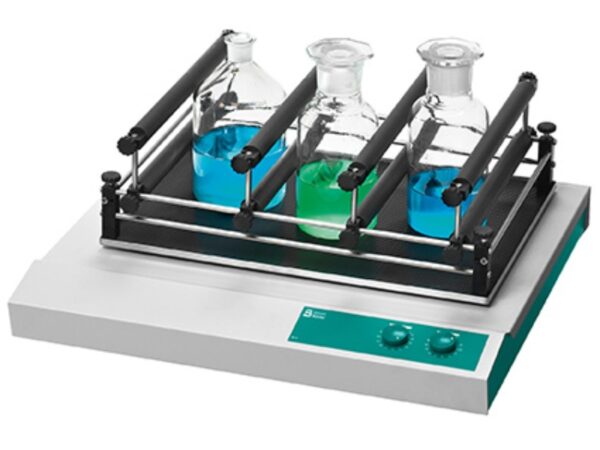

The SM 30 C is a universal reversible shaker from Edmund Buhler, with a motion that switches between orbital and reciprocating depending on the application. It suits labs that alternate between several high-load protocols without wanting to add more instruments. Its 560 x 400 mm platform holds a maximum load of 30 kg, with a stepless speed range of 15 to 300 rpm. The stroke is 26 mm, identical to the SM 30 A in orbital mode. The unit ships without a fixation rack; the Combifix SM racks and the TH 30 incubator hood are added as needed. A programmable timer from 0 to 120 minutes, or continuous operation, covers most laboratory protocols. At full load and high speed, a set of floor-fixation rings is recommended to stabilize the unit.

Edmund Buhler SM 30 C Universal Reversible Shaker

A reversible universal shaker, orbital or reciprocating

The Edmund Buhler SM 30 C is built to switch between an orbital motion and a reciprocating motion depending on the protocol to run, with a maximum load of 30 kg.

This dual function avoids adding more instruments to a position where several types of high-load agitation are required.

Speed and stroke

Speed adjusts steplessly from 15 to 300 rpm, over a 26 mm stroke, identical to the SM 30 A orbital mode.

Platform and load capacity

The 560 x 400 mm platform holds a maximum load of 30 kg. The unit ships without a fixation rack, to be selected separately based on vessel format.

42 Erlenmeyer flasks of 100 ml, or 20 flasks of 250-300 ml
6 separating funnels of 250 ml, or 2 of 1000 ml
4 test tube racks

Rack and fixation accessories

The Combifix SM A, B, or C racks, the SM universal tray, and the 2-tier top frame allow the fixation to be matched to the protocol.

At full load and high speed, Edmund Buhler recommends fixing the unit to the floor or table with 4 PVC rings (0002 754).

Combining with the TH 30 incubator hood

The SM 30 C can take the TH 30 incubator hood, which turns the shaker into a combined shaking and temperature-controlled station, up to 50°C.

Ideal Applications

The Edmund Buhler SM 30 C suits the following applications.

Labs alternating between orbital and reciprocating agitation at high load
Extraction with separating funnels
Heavy loads up to 30 kg
Versatile positions requiring two modes of agitation
General chemistry and biology laboratories

Choose the SM 30 C when:

You need a single instrument for two modes of agitation at high load
You alternate between several protocols without adding instruments
Your sample load goes up to 30 kg
You want to select the rack that fits your vessels separately
You are considering adding a TH 30 incubator hood

Buhler Value Proposition

The SM 30 C combines a reversible orbital and reciprocating motion with a 30 kg platform, for a versatile universal shaker for daily use.

Edmund Buhler has manufactured laboratory shakers in Germany since 1880 and remains a family-owned company.

Technical specifications – SM 30 C

Specification	SM 30 C
Product type	Universal reversible shaker (orbital / reciprocating)
Motion	Orbital or reciprocating, switchable
Platform area	560 x 400 mm
Maximum load	30 kg
Shaking speed	15-300 rpm, stepless
Stroke	26 mm
Timer	0-120 min or continuous
Power supply	230 V or 115 V, 50/60 Hz
Power consumption	max. 46 W
Heat emission	approximately 7 W
Enclosure rating	IP 21
Ambient temperature	5°C to 50°C
Humidity tolerance	approximately 85%
Standard setup	Platform + mat, without fixation rack
Dimensions	680 x 610 x 160 mm
Weight	33 kg

Options and Accessories – SM 30 C

The SM 30 C ships without a fixation rack; the Combifix SM racks or the SM universal tray are added based on vessel format. The TH 30 incubator hood turns the shaker into a combined shaking and temperature-controlled station.
