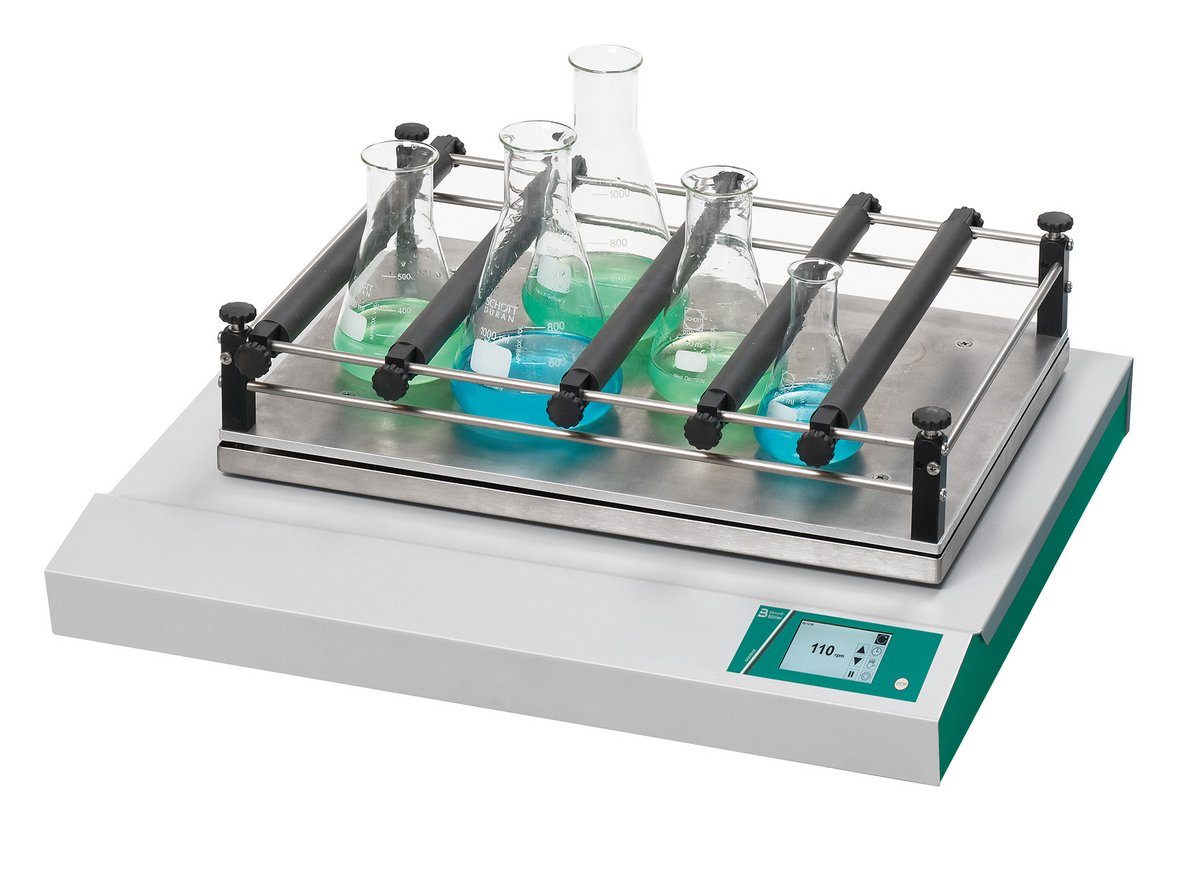

Edmund Buhler SM 30 AT control Heated Orbital Shaker

Hot plate shaker for shaking and heating at the same time

Edmund Buhler SM 30 AT control Heated Orbital Shaker

€5.805,00 excl. VAT

Estimated delivery time: 3-5 weeks

The SM 30 AT control is a heated orbital shaker from Edmund Buhler, adding an integrated heating plate to the SM 30 family. It suits labs that need to mix difficult media under controlled temperature, up to 120 degrees C. Its 560 x 400 mm platform holds a maximum load of 25 kg, with speed from 15 to 300 rpm in steps of 5. Temperature control precision is approximately plus or minus 1 degree C, for repeatable heating. A programmable touch screen drives both the shaking speed and the heating plate temperature. The unit ships with its heating plate and without a fixation rack; the Combifix SM racks complete the setup. The SM 30 AT control suits protocols where agitation alone is not enough to homogenize the mixture.

Edmund Buhler SM 30 AT control Heated Orbital Shaker

An orbital shaker with an integrated heating plate

The Edmund Buhler SM 30 AT control adds an integrated heating plate to the mechanical base of the SM 30 family, for mixing difficult media under controlled temperature.

Temperature adjusts up to 120 degrees C, with a control precision of approximately plus or minus 1 degree C.

Orbital agitation and programmable control

The orbital motion adjusts from 15 to 300 rpm in steps of 5, driven from the same programmable touch screen as the temperature.

The capacitive touch screen, glove-compatible, allows manual or automatic operation over 10 programs of 10 segments each.

Platform and load capacity

The 560 x 400 mm platform holds a maximum load of 25 kg, over a 26 mm stroke. Maximum heating power is 400 W, for a total power draw of 450 W.

42 Erlenmeyer flasks of 100 ml, or 20 flasks of 250 ml
6 separating funnels of 250 ml, or 2 of 1000 ml
Programmable or continuous operation

Rack and fixation accessories

The unit ships with its integrated heating plate and touch screen, without a fixation rack. The Combifix SM A, B, or C racks are added based on vessel format.

Ideal Applications

The Edmund Buhler SM 30 AT control suits the following applications.

Mixing difficult media requiring controlled temperature
Protocols combining agitation and heating up to 120 degrees C
Loads up to 25 kg
Chemistry laboratories requiring precise regulation
Positions replacing a shaking water bath with an integrated system

Choose the SM 30 AT control when:

Your protocol requires controlled temperature up to 120 degrees C
You want to combine orbital agitation and heating in a single unit
Your sample load goes up to 25 kg
A control precision of approximately 1 degree C fits your application
You are looking for programmable control of speed and temperature

Buhler Value Proposition

The SM 30 AT control combines an integrated heating plate with the orbital agitation of the SM 30 family, for a single instrument covering mixing and controlled temperature.

Edmund Buhler has manufactured laboratory shakers in Germany since 1880 and remains a family-owned company.

Technical specifications – SM 30 AT control

Specification	SM 30 AT control
Product type	Heated orbital shaker (integrated plate)
Motion	Orbital
Platform area	560 x 400 mm
Maximum load	25 kg
Shaking speed	15-300 rpm, in steps of 5
Stroke	26 mm
Temperature range	up to 120°C
Control precision	approximately ±1°C
Maximum heating power	400 W
Total power draw	max. 450 W
Operation	Programmable or continuous
Power supply	230 V, 50/60 Hz (115 V on request)
Enclosure rating	IP 21
Ambient temperature	5°C to 50°C
Dimensions	680 x 610 x 160 mm
Weight	40 kg

Options and Accessories – SM 30 AT control

The SM 30 AT control ships with its integrated heating plate and touch screen, without a fixation rack. The Combifix SM racks complete the setup based on vessel format.
