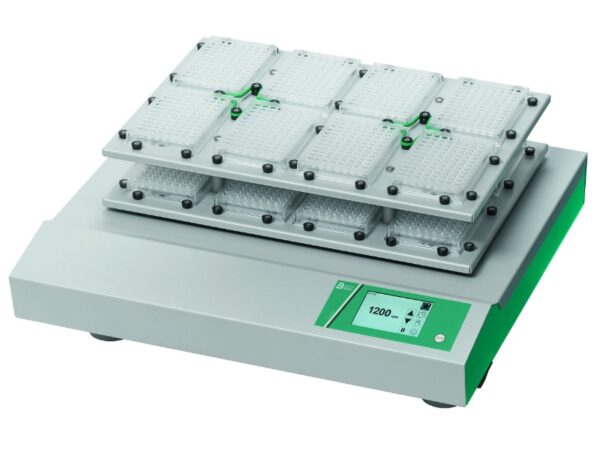

Edmund Buhler Microplate Shaker TiMix 5 control
Edmund Buhler Microplate Shaker TiMix 5 control
€3.564,00 excl. VAT
- Rack not included
- Motion: exact orbital motion
- Shaking platform: 400 x 300 mm for 8 microplates
- Max. load: 5 kg
- Shaking speed: 100 – 1400 rpm, in steps of 5
- Stroke: 3 mm (Special stroke on request)
- Runtime: programmable / continuous
- Order No.: 6167 000
microplates, deepweel-plates or other plates in microplate format. The wide choice of different rack systems allows fastening between 8 and 48 microplates. The shaker also has a touch display and programmable control.
Basic Equipment
Basic device without shaking plate, without rack system
With touch display and programmable control
Loading Capacity
Standard rack system 0052 101 8 microplates
Rack system with pins 0052 096 8 microplates
Standard rack system 0052 101 +
Additional tray 0052 102 16 microplates
RS high clamping pins 0052 104 24 microplates
RS metal clamping pins 0052 125 48 microplates
Warranty: 2 years
Lead time: 4 weeks
| Electrical supply: | 230 V or 115 V, 50 / 60 H please indicate in case of order |
| Enclosure protection: | IP 21 |
| Heat emission: | approx. 11 W |
| Ambient temperature: | 5°C to 50°C |
| Relative humidity: | ~ 85 % |
| Dimensions (w x d x h): | 510 x 490 x 150 mm |
| Weight: | 20 kg |
Standard Rack System TiMix 5
Additional tray TiMix 5
Rack System with clamping pins
Rack System with high clamping pins
Rack System with metal clamping pins
Rack System Combifix KS
Universal tray KS
Incubator Hood TH 15
Alternative Shakers
- Motion: three-dimensional orbital motion
- Shaking platform: 340 x 340 mm
- Max. load: 10 kg
- Shaking speed: 1 – 23 rpm, steplessly adjustable
- Angle of tilt: 0° to 9°
€2.558,00 excl. VAT
- Motion: orbital
- Shaking platform: 300 x 222 mm
- Max load: 4 kg at 300 rpm
- Shaking speed: 50 to 300 rpm
- Stroke: 20 mm
€1.270,00 excl. VAT
- Motion: exact orbital motion
- Shaking platform: 200 x 295 mm for 4 microplates
- Max. load: 2 kg
- Shaking speed: 100 – 1400 min-1, steplessly adjustable
- Stroke: 3 mm
€1.893,00 excl. VAT
- Motion: reciprocating (horizontal)
- Shaking platform: 560 x 400 mm
- Max. load: 30 kg
- Shaking speed: 15 – 300 rpm, in steps of 5
- Stroke: 30 mm (option: 46 or 50 mm)
€4.378,00 excl. VAT
- Motion: orbital
- Shaking platform: 400 x 300 mm
- Max. load: 15 kg
- Shaking speed: 30 – 420 rpm, steplessly adjustabl
- Stroke: 17 mm
€2.031,00 excl. VAT
- Motion: can be switched from orbital to reciprocating
- Shaking platform: 560 x 400 mm
- Max. load: 30 kg
- Shaking speed: 15 – 300 rpm, in steps of 5
- Stroke: 26 mm
€5.322,00 excl. VAT
