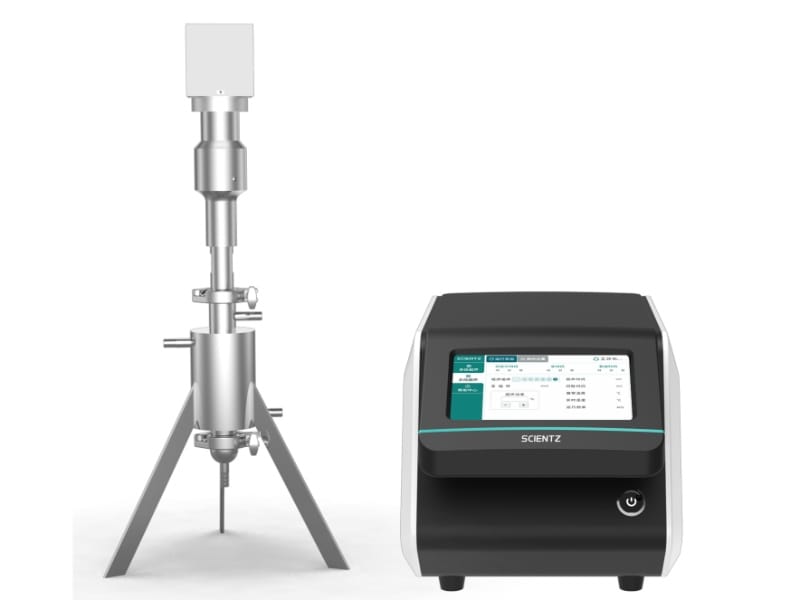

CFU-750W-M2 Continuous Flow Ultrasonic Disperser
CFU-750W-M2 Continuous Flow Ultrasonic Disperser
€12.520,00 excl. VAT
The CFU-750W-M2 is a continuous flow ultrasonic disperser designed for large-volume dispersion processes in research, pilot-scale and production environments. Unlike focused ultrasonic homogenizers that concentrate energy for cell disruption, the CFU-750W-M2 uses a unique omnidirectional dispersing probe that emits ultrasonic energy both laterally and longitudinally, maximizing dispersion efficiency. With 750 W ultrasonic power and processing capacities from 5 to 100 L/h, the system is ideal for nanomaterials, graphene, carbon nanotubes, silica dispersions, emulsions and liquid-liquid, solid-liquid or gas-liquid systems. The continuous flow design allows liquids to be pumped through the reactor for consistent and scalable processing. For laboratories and manufacturers focused on dispersion rather than cell disruption, the CFU-750W-M2 is the preferred solution.
Continuous Flow Ultrasonic Disperser for Nanomaterials and Industrial Dispersion
The CFU-750W-M2 is specifically designed for continuous ultrasonic dispersion of liquids, suspensions and nanomaterials. Unlike focused ultrasonic homogenizers that maximize energy density at a small point, the M2 uses an omnidirectional dispersing head that distributes ultrasonic energy throughout the flow cell, creating highly efficient dispersion in liquid-liquid, solid-liquid and gas-liquid systems.
- Continuous processing from 5–100 L/h
- Omnidirectional dispersing head for maximum dispersion efficiency
- Ideal for graphene, carbon nanotubes and silica dispersions
- Suitable for emulsification and nanoparticle processing
- Designed for production-scale dispersion applications
CFU-750W-M2 Continuous Flow Ultrasonic Disperser for Industrial Dispersion Processes
The CFU-750W-M2 is a continuous flow ultrasonic disperser developed for applications where particle dispersion, deagglomeration and emulsion formation are the primary objectives. Unlike focused ultrasonic homogenizers that concentrate energy into a small area for cell disruption, the CFU-750W-M2 is engineered to distribute ultrasonic energy throughout the product stream.
This makes it particularly suitable for nanomaterial processing, particle dispersion and large-scale emulsion production.
Omnidirectional Dispersion Technology
The defining feature of the CFU-750W-M2 is its unique dispersing head design.
The gourd-shaped dispersing component emits ultrasonic energy both:
- Longitudinally
- Laterally
This omnidirectional emission pattern increases interaction between ultrasonic cavitation and suspended particles, resulting in highly effective dispersion throughout the liquid volume.
Compared to traditional mechanical dispersion methods, ultrasonic dispersion offers:
- Smaller particle sizes
- Better dispersion stability
- Reduced sedimentation
- Improved homogeneity
- Enhanced emulsion quality
Optimized for Nanomaterial Processing
The CFU-750W-M2 is particularly suitable for dispersion of advanced materials including:
- Carbon nanotubes (CNTs)
- Graphene
- Silica nanoparticles
- Metal oxides
- Nanomaterials
- Pigments
- Carbon black
Achieving uniform nanoparticle dispersion is critical for many advanced material applications, and ultrasonic cavitation is one of the most effective technologies available for breaking agglomerates and stabilizing suspensions.
Continuous Flow Processing up to 100 L/h
The CFU-750W-M2 supports processing capacities between 5 and 100 litres per hour.
Instead of processing samples in batches, liquids are continuously pumped through the ultrasonic reactor, allowing:
- Higher throughput
- Better scalability
- Consistent processing conditions
- Reduced operator intervention
- Easier production scale-up
This makes the system suitable for both pilot-scale development and industrial production environments.
Suitable for Liquid-Liquid, Solid-Liquid and Gas-Liquid Systems
The CFU-750W-M2 utilizes ultrasonic cavitation to improve mixing and dispersion in various systems:
Liquid-Liquid Systems
- Emulsification
- Stable emulsion production
- Cosmetic formulations
- Food emulsions
Solid-Liquid Systems
- Nanoparticle dispersion
- Graphene processing
- Carbon nanotube dispersion
- Pigment dispersion
- Silica dispersion
Gas-Liquid Systems
- Gas dispersion
- Degassing
- Enhanced gas-liquid mixing
Industrial Control and Data Management
The CFU series incorporates industrial control features that support regulated production environments.
Key features include:
- 10-inch touchscreen interface
- Audit trail functionality
- USB data export
- Three-level user access management
- Network time synchronization
- Modbus-TCP communication
- SCADA compatibility
- Operational history recording
These capabilities make the CFU-750W-M2 suitable for pharmaceutical, food, biotechnology and advanced materials production.
Typical Applications
The CFU-750W-M2 is ideal for:
- Carbon nanotube dispersion
- Graphene dispersion
- Silica nanoparticle dispersion
- Pigment dispersion
- Carbon black dispersion
- Vaccine adjuvant preparation
- Cosmetic emulsions
- Food emulsions
- Pharmaceutical formulations
- Chemical synthesis
- Nanomaterial production
Choose the CFU-750W-M2 when:
- Dispersion is more important than cell disruption
- You process nanomaterials
- You require continuous production
- You need throughput up to 100 L/h
- You want scalable ultrasonic dispersion technology
Scientz Value Proposition
The CFU-750W-M2 extends Scientz ultrasonic technology into industrial dispersion applications. While focused ultrasonic homogenizers excel at cell disruption and extraction, the M2 is optimized specifically for particle dispersion and emulsion formation.
For users working with nanomaterials, graphene, carbon nanotubes or industrial emulsions, the CFU-750W-M2 provides an efficient continuous flow ultrasonic disperser with industrial-grade process control and scalability.
Technical Specifications – CFU-750W-M2
| Specification | CFU-750W-M2 |
|---|---|
| Product Type | Continuous flow ultrasonic disperser |
| Ultrasonic Type | Dispersion |
| Frequency | 20 kHz ± 1 kHz |
| Ultrasonic Rated Power | 750 W |
| Ultrasonic Power Adjustment | 1–100% |
| Reactor Material | SUS316 stainless steel |
| Reactor Volume | 200 ml |
| Dispersing Head Diameter | Ø20 mm |
| Processing Capacity | 5–100 L/h |
| Ultrasonic Intermittent Time | 0–99 s |
| Ultrasonic Working Time | 1–99 s |
| Total Ultrasonic Time | 1–999 min |
| User Interface | 10-inch touchscreen |
| Communication Interface | RJ45 Ethernet |
| Communication Protocol | Modbus-TCP |
| Access Control | Three-level access management |
| Data Recording | Internal storage and USB export |
| UPS Support | Optional |
| Reactor Temperature Control | -30°C to 100°C |
| Time Synchronization | Network time synchronization |
Options and Accessories – CFU-750W-M2
The CFU-750W-M2 is supplied with a continuous flow ultrasonic dispersion reactor and omnidirectional dispersing head optimized for nanomaterial and emulsion applications.
| Accessory | Description |
|---|---|
| Omnidirectional dispersing head | Standard configuration for ultrasonic dispersion |
| SUS316 flow reactor | 200 ml reactor volume |
| Digital controller | Touchscreen process control |
| RJ45 communication interface | Modbus-TCP and SCADA integration |
| Optional UPS | Uninterruptible power supply |
Available options and accessories:
- DC-3006 recommended circulating water bath
- Feed pumps for continuous operation
- Product collection vessels
- External process piping
- Optional UPS backup system
- SCADA integration support
- Process scale-up support
- Nanomaterial processing accessories
Alternative Continuous flow ultrasonicators, Ultrasonic dispersers
- Dispersion Volume: 100–1500 ml
- Ultrasonic Power: 1500 W
- Standard Dispersing Head: Ø18 mm
- Dispersion Systems: Liquid-liquid, solid-liquid and gas-liquid
- Key Advantage: High-power ultrasonic disperser for nanomaterials and larger batch volumes
€6.175,00 excl. VAT
- Processing Volume: Large-scale continuous processing
- Ultrasonic Power: 3000 W
- Reactor Volume: Approximately 5 L
- Probe Diameter: Ø50 mm
- Key Advantage: Industrial-scale continuous flow ultrasonic homogenizer
€19.292,50 excl. VAT
- Dispersion Volume: 500–2000 ml
- Ultrasonic Power: 2400 W
- Standard Dispersing Head: Ø25 mm
- Dispersion Systems: Liquid-liquid, solid-liquid and gas-liquid
- Key Advantage: High-power ultrasonic disperser for pilot-scale dispersion and nanomaterials
€7.981,00 excl. VAT
- Dispersion Volume: 1000–5000 ml
- Ultrasonic Power: 3000 W
- Standard Dispersing Head: Ø38 mm
- Dispersion Systems: Liquid-liquid, solid-liquid and gas-liquid
- Key Advantage: Production-scale ultrasonic disperser for nanomaterials and large batch processing
€9.365,00 excl. VAT

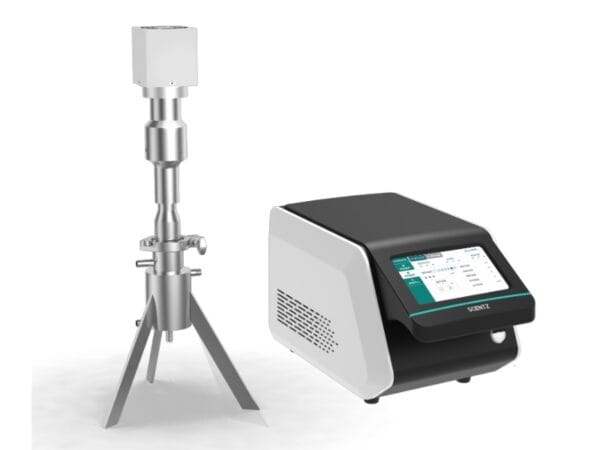

- Processing Volume: 5–50 L/h
