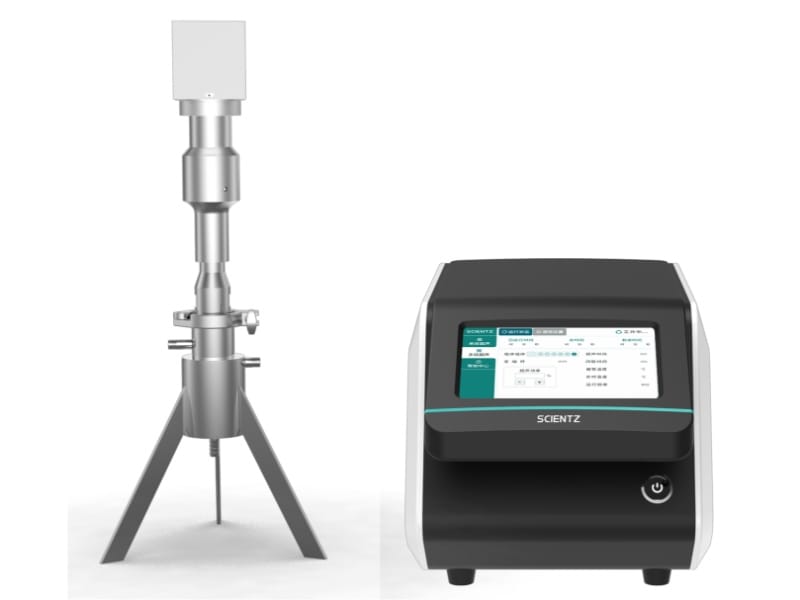

CFU-750W-M1 Continuous Flow Ultrasonic Homogenizer for Production Applications

The CFU-750W-M1 is a continuous flow ultrasonic homogenizer developed for users who need to move beyond traditional batch processing. Instead of placing samples in a vessel and treating them individually, liquid is continuously pumped through a dedicated ultrasonic flow reactor where it is exposed to high-intensity ultrasonic energy.

This approach increases throughput, improves process consistency and enables industrial-scale ultrasonic processing.

Focused Flow Cell Technology

The CFU-750W-M1 uses a focused ultrasonic reactor design. The ultrasonic energy is concentrated within the flow cell, generating intense cavitation and high shear forces as liquid passes through the reactor.

This focused energy delivery makes the M1 version particularly suitable for applications requiring:

• Cell disruption
• Vaccine production
• Extraction processes
• Chemical synthesis
• Emulsification
• Homogenization
• Nanomaterial preparation

Compared with dispersion-focused systems, the M1 design prioritizes ultrasonic intensity and cavitation efficiency.

Continuous Processing up to 50 L/h

The CFU-750W-M1 supports processing volumes between 5 and 50 litres per hour. This allows users to continuously process large volumes without the limitations associated with batch workflows.

Benefits include:

• Consistent processing conditions
• Higher throughput
• Reduced operator intervention
• Easier scale-up from laboratory to production
• Improved process reproducibility

For manufacturers and pilot plants, continuous flow processing often provides a more practical route to production than large batch ultrasonicators.

Designed for Industrial Integration

The CFU series incorporates features required in regulated and industrial environments.

Key capabilities include:

• 10-inch touchscreen interface
• Audit trail functionality
• Data recording and export via USB
• Three-level user access management
• Network time synchronization
• Modbus-TCP communication protocol
• SCADA compatibility
• Operational history tracking

These features make the CFU-750W-M1 suitable for pharmaceutical, biotechnology and industrial production environments where traceability is important.

Stainless Steel Flow Reactor

The ultrasonic reactor is manufactured from SUS316 stainless steel for excellent chemical resistance and durability.

The reactor volume is 150 ml and is designed for continuous operation with external pumping systems. The titanium alloy ultrasonic horn provides long-term resistance to cavitation erosion and chemical exposure.

Typical Applications

The CFU-750W-M1 is suitable for a wide range of production and scale-up applications:

• Vaccine production
• Cell disruption
• Protein extraction
• Chemical synthesis
• Emulsification
• Nanoparticle processing
• Material dispersion
• Biotechnology processing
• Food and beverage applications
• Environmental processing

Choose the CFU-750W-M1 when:

• You need continuous rather than batch processing
• Flow rates of 5–50 L/h are required
• Your process benefits from focused ultrasonic energy
• You need industrial communication and traceability functions
• You are scaling laboratory processes towards production

Scientz Value Proposition

The CFU series extends Scientz ultrasonic technology from laboratory batch processing into pilot and production-scale environments. By combining continuous flow technology, industrial automation capabilities and robust reactor design, the CFU-750W-M1 offers an efficient route to process scale-up.

For users looking for a continuous flow ultrasonic homogenizer with focused ultrasonic energy, the CFU-750W-M1 provides a powerful and flexible solution.
