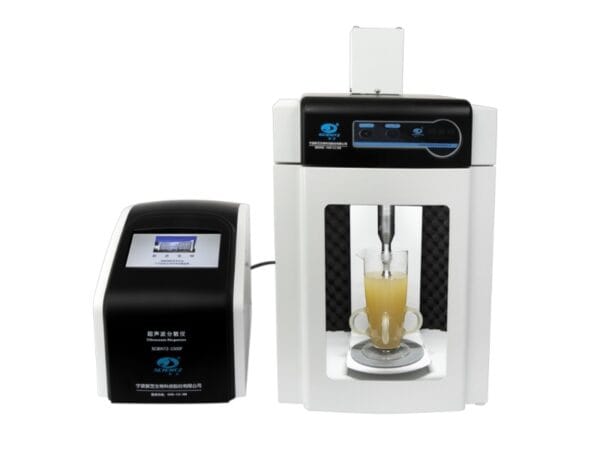

Scientz-2400F Ultrasonic Disperser
Scientz-2400F Ultrasonic Disperser
€7.981,00 excl. VAT
The Scientz-2400F is a high-performance ultrasonic disperser developed for larger batch volumes and demanding dispersion applications. Equipped with 2400 W ultrasonic power and a Ø25 mm omnidirectional dispersing head, it is specifically optimized for particle dispersion, deagglomeration and emulsion formation. With processing capacities from 500 ml to 2000 ml, the Scientz-2400F is ideal for graphene, carbon nanotubes, silica nanoparticles, pigments, carbon black and advanced material formulations. The combination of high ultrasonic power, intelligent control, electric lifting and soundproof enclosure makes it an excellent solution for research laboratories, formulation development and pilot-scale production.
High-Power Ultrasonic Disperser for Pilot-Scale Nanomaterial Processing
The Scientz-2400F is designed for users who need significantly larger processing volumes than traditional laboratory ultrasonic dispersers. Its omnidirectional dispersing technology distributes ultrasonic energy throughout the sample, creating highly stable dispersions and reducing particle agglomeration.
- Designed specifically for ultrasonic dispersion
- Processes batches from 500 ml to 2000 ml
- Ideal for graphene, carbon nanotubes and silica nanoparticles
- Excellent for pilot-scale formulation development
- Creates stable suspensions with improved particle distribution
Scientz-2400F Ultrasonic Disperser for Larger Batch Processing
The Scientz-2400F is a powerful batch ultrasonic disperser designed for laboratories and pilot-scale users working with larger sample volumes. Unlike focused ultrasonic homogenizers that concentrate energy into a small area for cell disruption, the Scientz-2400F is engineered specifically for particle dispersion and emulsion formation.
Its unique dispersing head design maximizes ultrasonic cavitation throughout the sample volume, making it highly effective for advanced materials and formulation applications.
Omnidirectional Dispersion Technology
A major advantage of the Scientz-F series is its specialized dispersing head geometry.
The dispersing head emits ultrasonic energy in:
- Longitudinal directions
- Lateral directions
This omnidirectional energy distribution creates:
- More uniform cavitation
- Improved particle deagglomeration
- Better dispersion efficiency
- Reduced sedimentation
- Improved long-term suspension stability
This makes the Scientz-2400F particularly effective for difficult-to-disperse materials.
Optimized for Nanomaterials and Advanced Materials
The Scientz-2400F is widely used for dispersing:
- Graphene
- Carbon nanotubes (CNTs)
- Silica nanoparticles
- Carbon black
- Titanium dioxide
- Iron oxide
- Nanocomposites
- Functional coatings
- Advanced pigments
Ultrasonic cavitation effectively breaks particle agglomerates while maintaining excellent particle distribution throughout the liquid phase.
2400 W Ultrasonic Power for Pilot-Scale Applications
The Scientz-2400F delivers 2400 W ultrasonic power and is equipped with a Ø25 mm dispersing head as standard.
The system supports batch volumes from 500 ml to 2000 ml, making it suitable for:
- Scale-up studies
- Pilot production
- Formulation optimization
- Process development
- Material manufacturing research
Compared with the Scientz-1500F, the larger dispersing head and higher power provide greater throughput and improved performance for larger volumes.
Intelligent Control and Reliable Operation
The Scientz-2400F combines high ultrasonic performance with advanced laboratory controls.
Key features include:
- 7-inch touchscreen display
- Continuous and pulse operating modes
- Adjustable ultrasonic power
- Adjustable ultrasonic time
- Temperature monitoring
- Temperature alarm
- Overload protection
- Soundproof enclosure
- Electric lifting system
- Intelligent parameter storage
These features improve reproducibility and simplify optimization across different dispersion processes.
Typical Applications
Nanomaterials
- Graphene dispersion
- Carbon nanotube dispersion
- Nanoparticle processing
- Nanocomposite preparation
Coating Industry
- Pigment dispersion
- Carbon black processing
- Metal oxide dispersion
- Functional coatings
Pharmaceutical Applications
- Injectable formulation preparation
- Vaccine component dispersion
- API suspension preparation
Cosmetics
- Emulsions
- Creams
- Lotions
- Active ingredient dispersions
Food Science
- Food emulsions
- Ingredient dispersion
- Milk powder processing
- Sauce production
Scientz Value Proposition
The Scientz-2400F provides an excellent balance between laboratory-scale flexibility and pilot-scale processing capacity. Its omnidirectional ultrasonic dispersion technology delivers superior particle distribution compared with conventional mixing methods while maintaining the flexibility required for formulation development.
For users seeking a dedicated ultrasonic disperser rather than a focused ultrasonicator, the Scientz-2400F offers high power, large batch capacity and optimized dispersion performance.
Technical Specifications – Scientz-2400F
| Specification | Scientz-2400F |
|---|---|
| Product Type | Ultrasonic disperser |
| Ultrasonic Frequency | 20.0 kHz ± 0.5 kHz |
| Display | 7-inch touchscreen |
| Ultrasonic Power | 2400 W (1–100%) |
| Standard Dispersing Head | Ø25 mm |
| Dispersion Capacity | 500–2000 ml |
| Duty Ratio | 0.1–99.9% |
| Timing Range | 1–999 min |
| Alarm Functions | Timing, temperature and overload |
| Power Supply Dimensions | 416 × 244 × 300 mm |
| Power Supply | AC220V / 50 Hz |
| Standard Configuration | Main unit, dispersing head and soundproof enclosure |
Options and Accessories – Scientz-2400F
The Scientz-2400F is supplied with a Ø25 mm ultrasonic dispersing head as standard and is optimized for batch volumes from 500 ml to 2000 ml.
Standard Included Dispersing Head
| Dispersing Head | Typical Volume |
|---|---|
| Ø25 mm (included) | 500–2000 ml |
Available Options and Accessories
- Additional application-specific dispersing heads
- Specialized breaking bottles
- Cell breaking beads
- Additional soundproof enclosure accessories
- High-viscosity dispersion accessories
- Nanomaterial processing accessories
- Pilot-scale formulation accessories
