Ohaus e-E51LDMP03 Endeavor 5000 Microplate Shaker

A dedicated microplate shaker in the Endeavor 5000 line

The Ohaus e-E51LDMP03 is the microplate-specific model in the Endeavor 5000 line, with a tray built to secure microplates and deep-well plates directly, rather than relying on a general-purpose flask platform.

It suits labs that need budget-friendly, programmable microplate shaking without moving up to a specialized high-speed microplate shaker.

Triple eccentric drive keeps the tray flat

A triple eccentric drive and maintenance-free brushless DC motor keep the tray flat through the full speed range, with no vertical wobble to cause splashing, even at high speed.

This is a specific advantage over competitor shakers using a single-eccentric drive, where tray wobble at higher speed is a common cause of sample splashing.

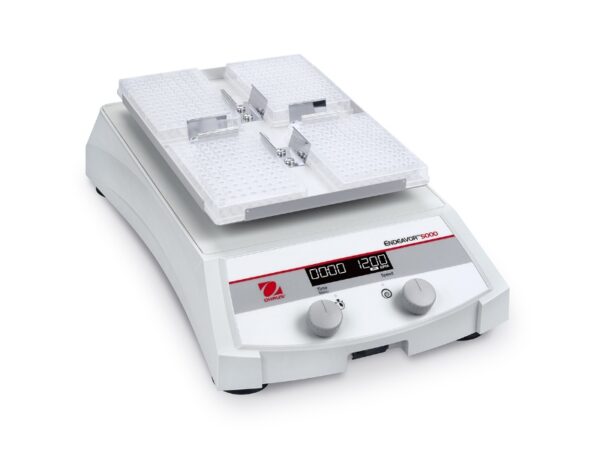

Ready-to-use microplate tray with V-clips

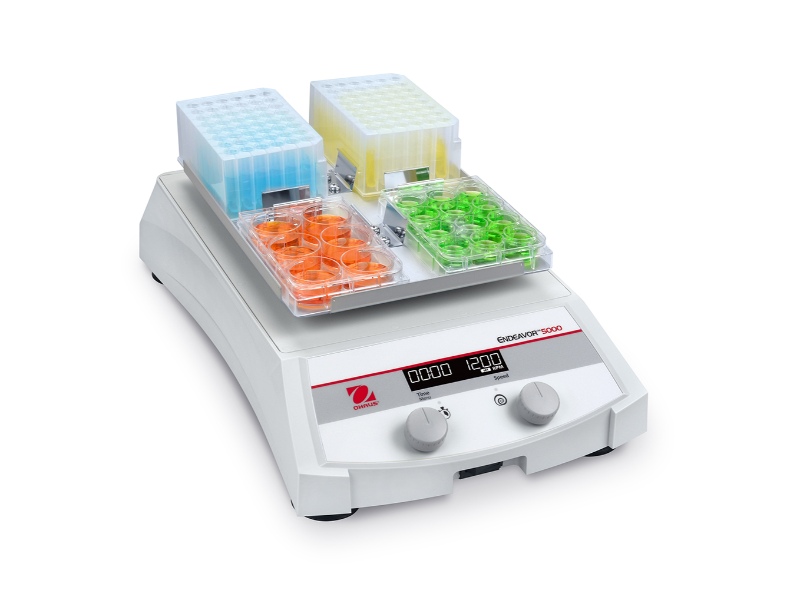

The dedicated tray (280 x 197 mm) ships ready to use with V-clips and springs that secure microplates directly, holding 4 microplates, or 2 Micro Tube Racks, or 2 microplates and 1 rack, per cycle.

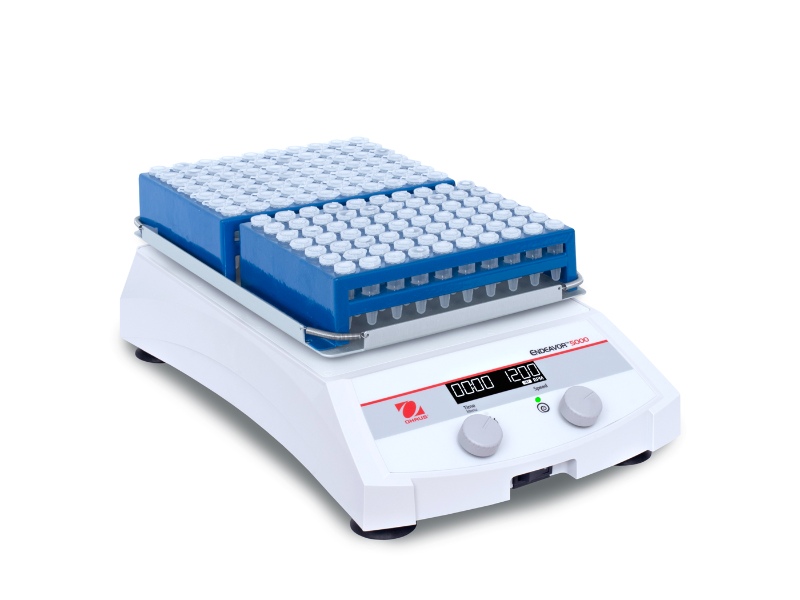

Removing the V-clips and springs converts the same tray to hold 2 Micro Tube Racks (item 30400114, sold separately).

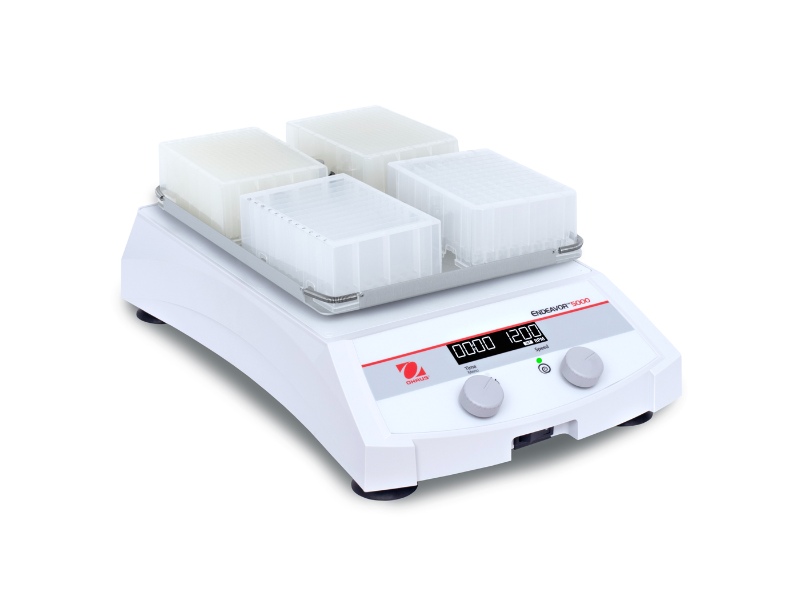

Deep-well plates via the optional Deep Well Plate Kit

The optional Deep Well Plate Kit adapts the same tray for deep-well plates using four rubber bumpers that screw directly into the tray, without needing the separate Deep Plate Kit used on other Ohaus microplate shakers.

• Weight capacity of 4 kg at 400 rpm, down to 0.5 kg at 900 rpm and above
• Maximum speed may need to be reduced depending on microplate skirt style
• Speed adjustable in 1 rpm increments for fine mixing control

On-board programming and incubator compatibility

A simple on-board menu sets, stores, and recalls up to 8 separate programs of up to 5 steps each, with RS232 connectivity for PC control and data logging.

The unit is rated for -10°C to 40°C, 80% RH non-condensing, which covers incubator and cold room use, though it is not rated for the condensing environment inside an active CO2 incubator.

Ideal Applications

The Ohaus e-E51LDMP03 suits the following applications.

• Microplate and deep-well plate shaking (ELISA, screening)
• Budget-conscious labs needing a dedicated microplate shaker
• Labs needing to switch between microplates and micro tube racks
• General cell culture and diagnostic work in plate format
• Incubator and cold room compatible microplate mixing

Choose the e-E51LDMP03 when:

• You need a shaker built specifically for microplates
• You want a budget-friendly alternative to a high-speed microplate shaker
• You need to switch between microplates and micro tube racks on the same tray
• You want to run the shaker in an incubator or cold room
• You want to store and recall multi-step programs

Ohaus Value Proposition

The e-E51LDMP03 combines a ready-to-use microplate tray, a triple eccentric drive, and on-board programming, for dedicated microplate shaking at the Standard Digital price tier.

Ohaus positions the Endeavor 5000 line as the current flagship of its Standard Digital tier, above entry-level analog models and below the Premium Incubating/Cooling range.
