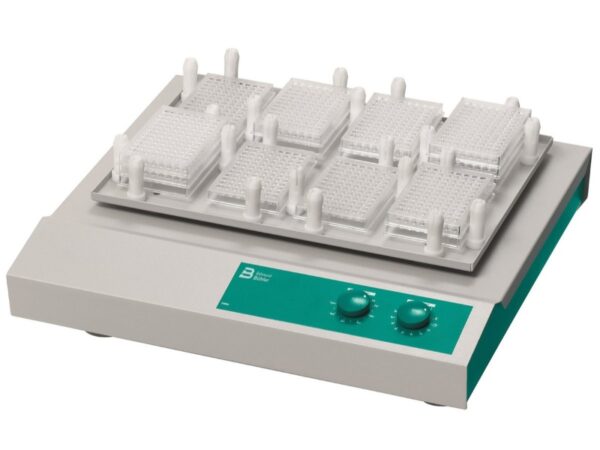

Edmund Buhler Microplate Shaker TiMix 5
Edmund Buhler Microplate Shaker TiMix 5
Original price was: €2.333,00.€2.099,70Current price is: €2.099,70. excl. VAT
- Rack not included
- Motion: exact orbital motion
- Shaking platform: 400 x 300 mm for 8 microplates
- Max. load: 5 kg
- Shaking speed: 100 – 1400 rpm, steplessly adjustable
- Stroke: 3 mm
- Timer: 0 – 120 min / continuous
- Order No.: 6166 000
The Microplate Shaker TiMix 5 guarantees optimal mixing of small sample volumes in microplates, deepweel-plates or other plates in microplate format. The wide choice of different rack systems allows fastening between 8 and 48 microplates.
Basic Equipment
Basic device without shaking plate, without rack system
Loading Capacity
Standard rack system 0052 101 8 microplates
Rack system with pins 0052 096 8 microplates
Standard rack system 0052 101 +
Additional tray 0052 102 16 microplates
RS high clamping pins 0052 104 24 microplates
RS metal clamping pins 0052 125 48 microplates
Warranty: 2 years
Lead time: 4 weeks
| Electrical supply: | 230 V or 115 V, 50 / 60 H please indicate in case of order |
| Enclosure protection: | IP 21 |
| Heat emission: | approx. 9 W |
| Ambient temperature: | 5°C to 50°C |
| Relative humidity: | ~ 85 % |
| Dimensions (w x d x h): | 510 x 490 x 150 mm |
| Weight: | 19 kg |
Standard Rack System TiMix 5
Additional tray TiMix 5
Rack System with clamping pins
Rack System with high clamping pins
Rack System with metal clamping pins
Rack System Combifix KS
Universal tray KS
Incubator Hood TH 15
