Edmund Buhler VKS 75 B control Heavy-Duty Reciprocating Shaker
Edmund Buhler VKS 75 B control Heavy-Duty Reciprocating Shaker
€7.835,00 excl. VAT
The VKS 75 B control is a floor-standing reciprocating shaker from Edmund Buhler, built for the heaviest loads in the range. It suits industrial and pilot-scale labs that need to agitate very large volumes with a linear, horizontal motion. Its 760 x 600 mm platform holds a maximum load of 75 kg, with speed adjustable in steps of 5 from 30 to 200 rpm. The standard stroke is 50 mm, with options of 36 mm, 60 mm, or 80 mm depending on the protocol. Installation is floor-only, with the unit weighing 110 kg before accessories. The programmable touch screen drives agitation across 10 programs of 10 segments each, with a log of interruptions. The unit ships without a platform or fixation rack; the VKS shaking plate and Combifix VKS racks are added as needed.
Edmund Buhler VKS 75 B control Heavy-Duty Reciprocating Shaker
A floor-standing reciprocating shaker for the heaviest loads
The Edmund Buhler VKS 75 B control is a floor-standing multi-flask reciprocating shaker, built for the heaviest loads in the range, with a maximum load of 75 kg.
Installation is floor-only: the unit weighs 110 kg empty, before adding a platform or rack.
A modular stroke to match the protocol
The standard 50 mm stroke can be replaced with a 36 mm (0052 213), 60 mm (0052 214), or 80 mm (0052 215) stroke depending on the protocol to run.
Speed adjusts from 30 to 200 rpm in steps of 5.
Touch screen and programming
The capacitive touch screen, glove-compatible, allows manual or automatic operation over 10 programs of 10 segments each, with a log of interruptions for traceability.
- 760 x 600 mm platform, maximum load of 75 kg
- Defined Stop available on request
- Optional Safety Package for speed monitoring
Platform, racks, and multi-tier systems
The VKS shaking plate (1 tier) and the Combifix VKS A, B, or C racks allow the fixation to be matched to the protocol.
Optional multi-tier systems, with 2 or 3 levels, allow processing capacity to be increased on the same floor footprint.
Ideal Applications
The Edmund Buhler VKS 75 B control suits the following applications.
- Industrial and pilot-scale agitation of very large volumes
- Heavy loads up to 75 kg, continuous or long duration
- Protocols requiring a modular stroke (36 to 80 mm)
- Labs needing multiple rack tiers for capacity
- Positions requiring remote operation (USB, RS 232)
Choose the VKS 75 B control when:
- You need to shake very heavy loads, up to 75 kg
- A linear horizontal motion suits your protocol better
- You need a modular stroke, from 36 to 80 mm
- Floor installation is possible in your laboratory
- You want to store and repeat industrial agitation protocols
Buhler Value Proposition
The VKS 75 B control combines a 75 kg maximum load, a modular stroke, and a programmable touch screen, for the most demanding linear industrial agitation in the Buhler range.
Edmund Buhler has manufactured laboratory shakers in Germany since 1880 and remains a family-owned company.
Technical specifications – VKS 75 B control
| Specification | VKS 75 B control |
|---|---|
| Product type | Floor-standing heavy-duty reciprocating shaker |
| Motion | Reciprocating (horizontal) |
| Platform area | 760 x 600 mm |
| Maximum load | 75 kg |
| Shaking speed | 30-200 rpm, in steps of 5 |
| Stroke | 50 mm standard (36, 60, or 80 mm optional) |
| Operation | Programmable or continuous |
| Programs | 10 programs, 10 segments each |
| Installation | Floor only |
| Power supply | 100-240 V, 50/60 Hz |
| Power consumption | max. 70 W |
| Heat emission | approximately 15 W |
| Enclosure rating | IP 21 |
| Ambient temperature | 5°C to 50°C |
| Defined Stop | on request |
| Dimensions | 1050 x 835 x 250 mm |
| Weight | 110 kg |
Options and Accessories – VKS 75 B control
The VKS 75 B control ships without a platform or fixation rack. The VKS shaking plate, the Combifix VKS racks, optional strokes, and multi-tier systems allow the unit to be adapted to the protocol.
- VKS shaking plate, 1 tier (0052 070)
- Combifix VKS A rack, 9 horizontal clamping strips (0051 487)
- Combifix VKS B rack, 4 horizontal + 4 vertical strips (0051 488)
- Combifix VKS C rack, strips and separating funnels (0051 489)
- Optional stroke 36 mm (0052 213), 60 mm (0052 214), or 80 mm (0052 215)
- 2-tier VKS rack system (0052 186)
- 3-tier VKS rack system ‘Giant’ (0052 068)
- Set of 4 floor-fixation rings (0002 754)
Alternative Multi-flask / heavy-duty shakers (floor-standing)

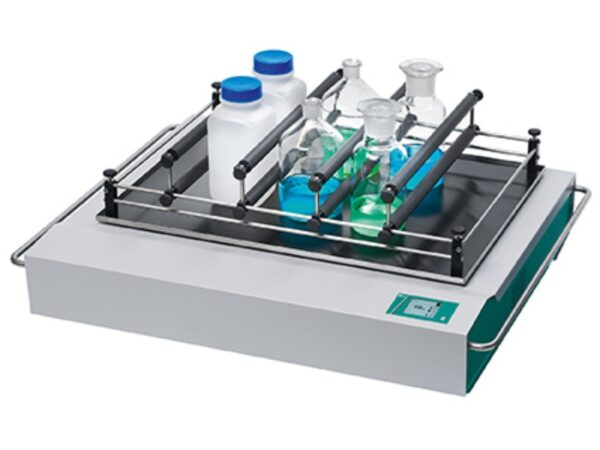

- Motion: orbital
