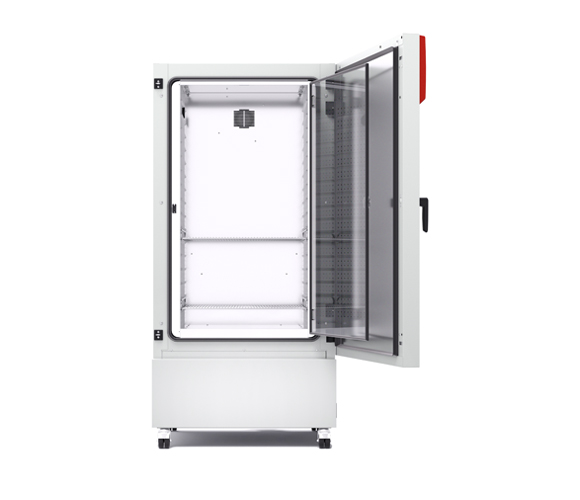

Binder KB ECO 400 peltier cooled incubator
€10.153,00 excl. VAT
- Volume: 400 liter
- Safe: Unique condensate and dry-out protection for all operating conditions
- Reliable: Fail-safe operation due to intelligent thermoelectric tempering
- Smart: Temperatures programmable for intermitted incubation and refrigeration
- Economical: Minimum energy consumption thanks to optimized thermoelectric cooling
- Temperature range: 0°C through +70°C (max. 28°C below the ambient temperature)
- APT.line™ preheating chamber technology
- Electric temperature control thanks to thermoelectric cooling module with innovative heat dissipation
- Inner door made of tempered safety glass
- Inner chamber made completely of stainless steel
- 2 rack, stainless steel
- Adjustable condensate protection
- Access port with silicone plug Ø 30 mm
- LCD to display temperature along with additional information and alarms
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Computer interface: Ethernet
Description
Binder KB ECO 400 Peltier Cooled Incubator – High-Capacity, Energy-Efficient Incubation for Sustainable Laboratory Workflows
The Binder KB ECO 400 Peltier cooled incubator is a top-tier solution for laboratories that demand energy efficiency, precise thermal control, and environmental responsibility. Engineered with state-of-the-art Peltier technology, this large-capacity model offers reliable heating and cooling from 0 °C to +70 °C—without using refrigerants—making it ideal for long-term, sustainable operation.
With a generous 400-liter chamber, the KB ECO 400 is particularly well-suited for high-throughput microbiological studies, stability testing, food and beverage quality control, and pharmaceutical research. Binder’s APT.line™ preheating chamber technology ensures exceptional temperature uniformity and fast recovery times, even when the incubator is fully loaded.
This model features a user-friendly LCD controller with real-time and time-segment programming, adjustable fan speed, and a tempered safety glass inner door for secure observation of samples. Safety is supported by a Class 3.1 independent temperature safety device (DIN 12880) with both visual and audible alarms.
Designed for digital integration, the KB ECO 400 includes USB and Ethernet ports for data logging and network connectivity—allowing seamless incorporation into modern lab environments in the BeNeLux region and beyond.
Key Features:
-
Temperature range: 0 °C to +70 °C
-
Peltier technology for efficient, eco-friendly heating and cooling
-
APT.line™ preheating chamber technology for uniform conditions
-
400-liter chamber with 2 stainless steel shelves
-
Adjustable fan speed for optimized airflow control
-
LCD controller with real-time and programmable settings
-
Tempered safety glass inner door
-
Class 3.1 safety system (DIN 12880) with visual/audible alarms
-
USB and Ethernet connectivity for data transfer and monitoring
The Binder KB ECO 400 Peltier incubator delivers scalable, sustainable performance with precise temperature control—making it a reliable, high-capacity solution for professional laboratories focused on quality and efficiency.
Specifications
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | KBECO400-230V |
| Article Number | 9020-0465 |
| Performance Data Temperature | |
| Temperature range | (max. 28 °C under ambient temperature) 0…70 °C |
| Temperature uniformity at 37°C | 0.1 ± K |
| Temperature fluctuation at 37°C | 0.1 ± K |
| Max. heat compensation at 40°C | 350 W |
| Recovery time after door was opened for 30 s at 37°C | 6 min |
| Measures | |
| Interior volume | 400 L |
| Net weight of the unit (empty) | 196 kg |
| Load per rack | 30 kg |
| Permitted load | 120 kg |
| Doors | |
| Unit doors | 1 |
| Inner doors | 1 |
| Internal Dimensions | |
| Interior width | 650 mm |
| Interior height | 1,268 mm |
| Interior depth | 485 mm |
| Wall clearance | |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 100 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 925 mm |
| Height net | 1,946 mm |
| Depth net | 796 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 200…230 V |
| Power frequency | 50/60 Hz |
| Nominal power | 1,2 kW |
| Nominal current | 5,2 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Sound-pressure level | 43 dB(A) |
| Energy consumption at 37°C | 70 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 2/15 |
- LED light bars: LED light bars in three different lengths (30, 50, 90 cm) can be easily and variably positioned in the BINDER unit, including various attachment options and control unit. Additional light bars can be added as desired.
- Access port with silicone plug: For introducing external measuring instruments. Large selection of different diameters
and positions (left, right, or top) - Door lock: Lockable door handle prevents unauthorized access.
- Services: You can access our installation, maintenance, calibration, validation, or warranty services by taking out a Maintenance Service Agreement or by simply getting in touch when you need us. More information is available in the accessories and services chapter.
