B-380 Trinocular phase contrast microscope, 1000x, PLAN

€1.694,00 excl. VAT

Estimated delivery time: 3-4 weeks

Phase contrast microscope
Magnification: 100x – 1000x
Illumination: 3.6 W X-LED3, ALC
Trinocular, 30° inclined
Eyepieces: WF 10x/20

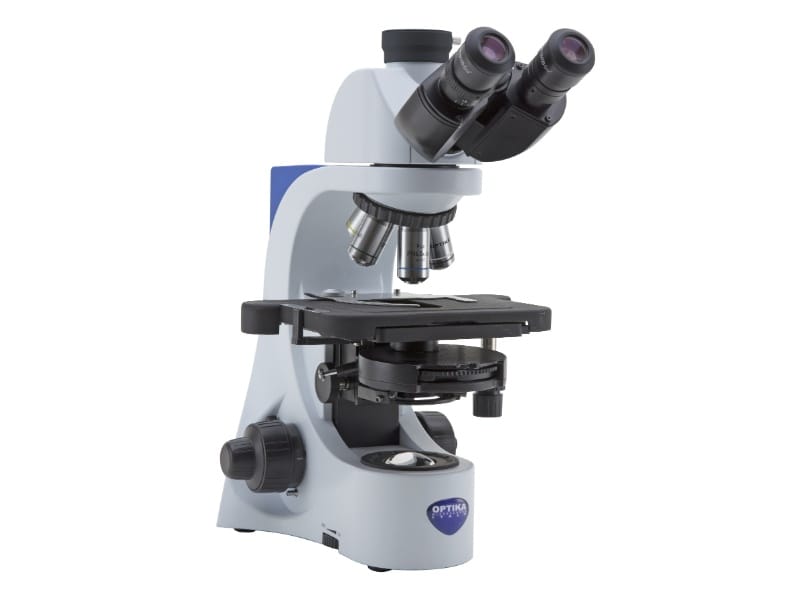

B-383PH Phase Contrast Microscope

Trinocular Phase Contrast Microscope with Brightfield & Darkfield Modes

The OPTIKA B-383PH is a professional-grade trinocular microscope designed for phase contrast, brightfield, and dry darkfield observation. Equipped with W-PLAN PH objectives and a 5-position rotating condenser, it delivers high-contrast imaging for transparent specimens such as cells, bacteria, and tissue cultures. The X-LED³ illumination system ensures bright, uniform lighting with exceptional color fidelity and energy efficiency.

Key Features:

Trinocular head, 30° inclined, 360° rotating (50/50 split)
W-PLAN PH objectives: 10x, 20x, 40x, 100x (oil)
Brightfield, phase contrast, and dry darkfield observation
5-position rotating condenser (BF, PH 10/20x, 40x, 100x, DF)
Rackless mechanical stage (150×139 mm, 75×33 mm range)
Coaxial coarse and fine focusing with upper stop
X-LED³ illumination (3.6 W, 6,300 K), 65,000-hour lifespan

Warranty: 1 years

Lead time: 3-5 weeks

Observation mode: Brightfield, phase contrast and darkfield (dry).
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 48 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
N-PLAN 4x/0.10
W-PLAN PH 10x/0.25
W-PLAN PH 40x/0.65
W-PLAN PH 100x/1.25 (Oil/Water)
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 150×139 mm, 75×33 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Phase condenser (10x/20x, 40x, 100x) with darkfield (dry) and brightfield.
Illumination (Fixed Koehler type): X-LED³ with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.

Eyepiece Wide Field, WF 10x/20, High Eyepoint.
Eyepiece Wide Field, EW 15x/16.
M-069 – Solar battery pack
Eyepiece Wide Field, WF 20x/10.
Micrometer eyepiece WF 10x/20, 10mm/100um.
Eyepiece with pointer WF 10x/20.
N-PLAN objective 4x/0.10 (only for B-382PL-ALC, B-383PL, B-383DK).
N-PLAN objective 10x/0.25 (only for B-382PL-ALC, B-383PL, B-383DK).
N-PLAN objective 20x/0.40 (only for B-382PL-ALC, B-383PL, B-383DK).
N-PLAN objective 40x/0.65 (only for B-382PL-ALC, B-383PL, B-383DK).
N-PLAN objective 60x/0.80 (only for B-382PL-ALC, B-383PL, B-383DK).
N-PLAN objective 100x/1.25 (OIL/WATER immersion) (only for B-382PL-ALC, B-383PL).
IOS N-PLAN objective 4x/0.10 (only for B-382PLi-ALC, B-383PLi, B-383LD1, B-383LD2, B-383FL).
IOS N-PLAN objective 10x/0.25 (only for B-382PLi-ALC, B-383PLi, B-383LD1, B-383LD2, B-383FL).
IOS N-PLAN objective 20x/0.40 (only for B-382PLi-ALC, B-383PLi, B-383LD1, B-383LD2, B-383FL).
IOS N-PLAN objective 40x/0.65 (only for B-382PLi-ALC, B-383PLi, B-383LD1, B-383LD2, B-383FL).
IOS N-PLAN objective 60x/0.80 (only for B-382PLi-ALC, B-383PLi, B-383LD1, B-383LD2, B-383FL).
IOS N-PLAN objective 100x/1.25 (OIL/WATER immersion) (only for B-382PLi-ALC, B-383PLi, B-383LD1, B-383LD2, B-383FL).
W-PLAN objective 100x/1.25OI (oil iris) (only for B-383DK).
W-PLAN PH objective 10x/0.25 (only for B-383PH, B-382PH-ALC).
W-PLAN PH objective 20x/0.40 (only for B-383PH, B-382PH-ALC).
W-PLAN PH objective 40x/0.65 (only for B-383PH, B-382PH-ALC).
W-PLAN PH objective 100x/1.25 (Oil) (only for B-383PH, B-382PH-ALC).
M-1120.N IOS W-PLAN PH objective 10x/0.25 (only for B-383PHi, B-382PHi-ALC).
M-1121.N IOS W-PLAN PH objective 20x/0.40 (only for B-383PHi, B-382PHi-ALC).
M-1122.N IOS W-PLAN PH objective 40x/0.65 (only for B-383PHi, B-382PHi-ALC).
M-1123.N IOS W-PLAN PH objective 100x/1.25 (Oil) (only for B-383PHi, B-382PHi-ALC).
IOS N-PLAN POL objective 4x/0.10 (only for B-383POL).
IOS N-PLAN POL objective 10x/0.25 (only for B-383POL).
IOS N-PLAN POL objective 20x/0.40 (only for B-383POL).
IOS N-PLAN POL objective 40x/0.65 (only for B-383POL).
IOS N-PLAN POL objective 60x/0.80 (only for B-383POL).
IOS N-PLAN POL objective 100x/1.25 (OIL/WATER immersion) (only for B-383POL).
IOS W-PLAN MET objective 50x/0.75 (only for B-383LD1, B-383LD2, B-383FL, B-383MET).
IOS W-PLAN MET objective 4x/0.10 (only for B-383MET).
IOS W-PLAN MET objective 10x/0.25 (only for B-383MET).
IOS W-PLAN MET objective 20x/0.40 (only for B-383MET).
Complete PH Set – W-PLAN PH obj. 10x, 40x, 100x – Condenser for BF/DF/PH
(only for B-383PL, B-382PL-ALC, B-383DK).
Complete PH Set – IOS W-PLAN PH obj. 10x, 20x, 40x, 100x – Condenser for BF/DF/PH
(only for B-382PLi-ALC, B-383PLi, B-383LD1, B-383LD2, B-383FL, B-383MET).
HBO100W high-pressure mercury bulb for fluorescence (for B-383FL only).
Heating stage, with digital temperature controller (only on newly purchased microscopes) for B-380IOS.
Polarizing set, filters only (for B-380 series).
Rotating table for polarizing set.
DF condenser for dry objectives.
Field diaphragm for Koehler illumination (for all, except B-383POL).
Ring with blue filter, 45 mm diameter.
Ring with green filter, 45 mm diameter.
Ring with yellow filter, 45 mm diameter.
Ring with frosted glass filter, 45 mm diameter.
Photo adapter for APS-C and Full Frame Reflex cameras.
C-Mount adapter for 1/2” sensor.
C-Mount adapter for 1/3” sensor.
C-Mount adapter for 2/3” sensor.
Micrometer slide for software calibration, 1mm/10um, 10mm/100um.
TNT dust cover, medium – 600(l)x550(h) mm.
OPTIKA immersion oil 10ml.
Cleaning kit.
IQ/OQ/PQ Validation Protocols.
