Optica B-290 Binocular brightfield microscope, 1000x, PLAN

€701,00 excl. VAT

Estimated delivery time: 3-4 weeks

Compound microscope
Magnification: 40x – 1000x
Illumination: 3.6 W X-LED3
Binocular, 30° inclined, 360° rotating
Eyepieces: WF 10x/20

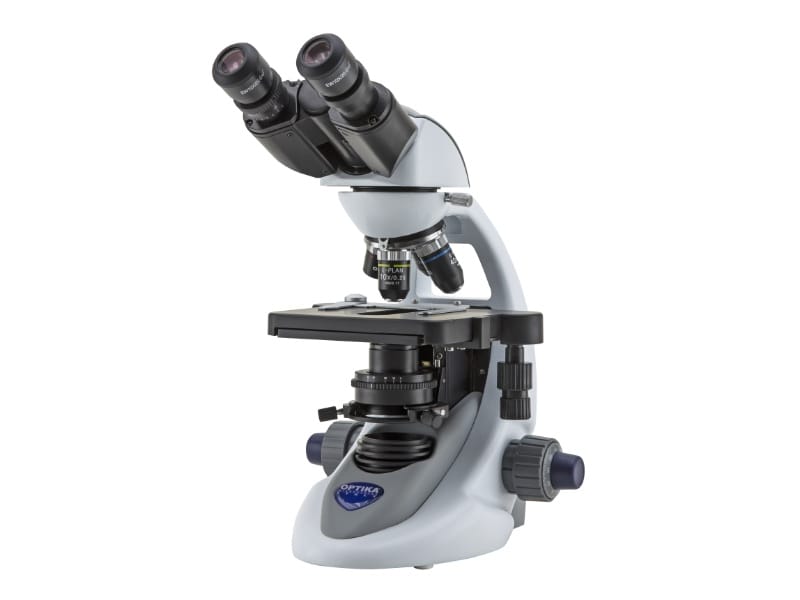

B-292 Brightfield Microscope

High-Performance Binocular Brightfield Microscope for Education & Routine Labs

The OPTIKA B-292 is a versatile binocular brightfield microscope designed for secondary schools, universities, and routine laboratory use. Equipped with N-PLAN objectives and a rackless mechanical stage, it delivers sharp, flat-field images up to 1000x magnification. The exclusive X-LED³ illumination system ensures bright, uniform lighting with exceptional color fidelity and energy efficiency. Its ergonomic design and anti-fungus optics make it ideal for daily use in biology, histology, and educational settings.

Key Features:

Brightfield microscope with 1000x magnification
Binocular head, 360° rotating, 30° inclined
N-PLAN objectives (4x, 10x, 40x, 100x oil)
Rackless mechanical stage with X-Y movement
X-LED³ illumination (3.6 W, 6,300 K)
Coaxial coarse and fine focusing with limit stop
Ideal for biology, education, and routine lab work

Warranty: 1 years

Lead time: 3-5 weeks

Parameter	Specification
Head	Binocular, 30° inclined, 360° rotating
Eyepieces	WF 10x/20
Nosepiece	Quadruple, reversed
Objectives	N-PLAN 4x, 10x, 40x, 100x (oil)
Stage	Double layer, 150×139 mm, moving range 75×33 mm, X-axis rackless
Focusing	Coaxial coarse and fine, limit stop
Condenser	Abbe N.A. 1.25, iris diaphragm, focusable and centrable
Illuminator	3.6 W X-LED³ manual brightness control

Eyepiece WF10x/20mm.
Eyepiece WF15x/16mm.
Eyepiece WF20x/10mm.
Micrometer eyepiece WF10x/20mm, 10mm/100um.
Eyepiece with pointer WF10x/20mm.
N-PLAN objective 4x/0.10 (only for B-292 / B-293 / B-290TB).
N-PLAN objective 10x/0.25 (only for B-292 / B-293 / B-290TB).
N-PLAN objective 20x/0.40 (only for B-292 / B-293 / B-290TB).
N-PLAN objective 40x/0.65 (only for B-292 / B-293 / B-290TB).
N-PLAN objective 60x/0.80 (only for B-292 / B-293 / B-290TB).
N-PLAN objective 100x/1.25 (oil) (only for B-292 / B-293 / B-290TB).
IOS N-PLAN objective 4x/0.10 (only for B-292PLi / B-293PLi).
IOS N-PLAN objective 10x/0.25 (only for B-292PLi / B-293PLi).
IOS N-PLAN objective 20x/0.40 (only for B-292PLi / B-293PLi).
IOS N-PLAN objective 40x/0.65 (only for B-292PLi / B-293PLi).
IOS N-PLAN objective 100x/1.25 (oil) (only for B-292PLi / B-293PLi).
IOS N-PLAN objective 60x/0.80 (only for B-292PLi / B-293PLi).
Polarizing set, filters only (for B-290 series).
Darkfield stop for B-290 condenser.
Rotating table for polarizing set.
Solar battery pack.
Plane-concave mirror, with base.
C-Mount adapter for 1/2” sensor.
C-Mount adapter for 1/3” sensor.
C-Mount adapter for 2/3” sensor.
Photo adapter for APS-C and Full Frame Reflex cameras.
Blue filter, 45mm diameter.
Green filter, 45mm diameter.
Yellow filter, 45mm diameter.
Frosted glass filter, 45mm diameter.
Heating stage, with digital temperature controller.
Micrometer slide for software calibration, 1mm/10um, 10mm/100um.
Plastic dust cover, medium – 490(l)x490(h) mm.
TNT dust cover, medium – 600(l)x550(h) mm.
OPTIKA immersion oil 10ml.
Cleaning kit.
IQ/OQ/PQ Validation Protocols
