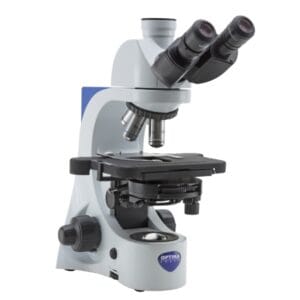

Optika B-382PHi-ALC Binocular Phase Contrast Microscope

The Optika B-382PHi-ALC is a binocular phase contrast microscope from the B-380 series, built for routine laboratory work with unstained specimens. It combines IOS infinity-corrected W-PLAN PH objectives with a 5-position rotating condenser for brightfield, phase contrast, and darkfield observation.

The system pairs the exclusive X-LED3 illumination with Automatic Light Control, so the microscope keeps a stable brightness level when the objective, diaphragm, or specimen changes.

Automatic Light Control for Consistent Brightness

The B-382PHi-ALC includes Automatic Light Control (ALC). Once the user sets a preferred brightness level, the system keeps that level automatically when switching objectives, adjusting the diaphragm aperture, or changing to a new specimen.

This removes the need for repeated manual brightness adjustment during a session, which speeds up routine sample screening.

IOS W-PLAN PH Objectives for Phase Contrast Work

The IOS W-PLAN PH objective set covers 10x, 20x, 40x, and 100x oil magnifications, plan achromatic corrected with a DIN 45 parfocal distance.

The 5-position condenser gives brightfield, three phase contrast settings, and a darkfield position for dry objectives, all on the same stand.

Rackless Double Layer Stage

The 233×147 mm double layer mechanical stage uses a belt-driven, rackless mechanism with a 78×54 mm X-Y moving range and 0.1 mm vernier scale accuracy.

Coaxial Focusing with Limit Stop

Coarse and fine focusing share a coaxial control, with 25 mm coarse travel and 2 um fine resolution. An upper stop prevents contact between the objective and the specimen, and coarse focus tension is adjustable.

Ideal Applications

The B-382PHi-ALC suits laboratories that regularly examine transparent, unstained specimens.

• Living cell and microorganism observation
• Microbiology and cytology screening
• Educational and university laboratory use
• Routine phase contrast diagnostics
• Combined brightfield and phase contrast workflows

Choose the B-382PHi-ALC when:

• You need phase contrast for unstained, transparent specimens
• You want consistent brightness without repeated manual adjustment
• You need infinity-corrected IOS optics on a binocular stand
• You process routine laboratory samples with mixed brightfield and phase contrast needs

Optika Value Proposition

The Optika B-382PHi-ALC combines IOS infinity-corrected optics, Automatic Light Control, and a rackless mechanical stage in one binocular stand, backed by Optika 10-year mechanical and optical warranty plus lifetime X-LED warranty.
