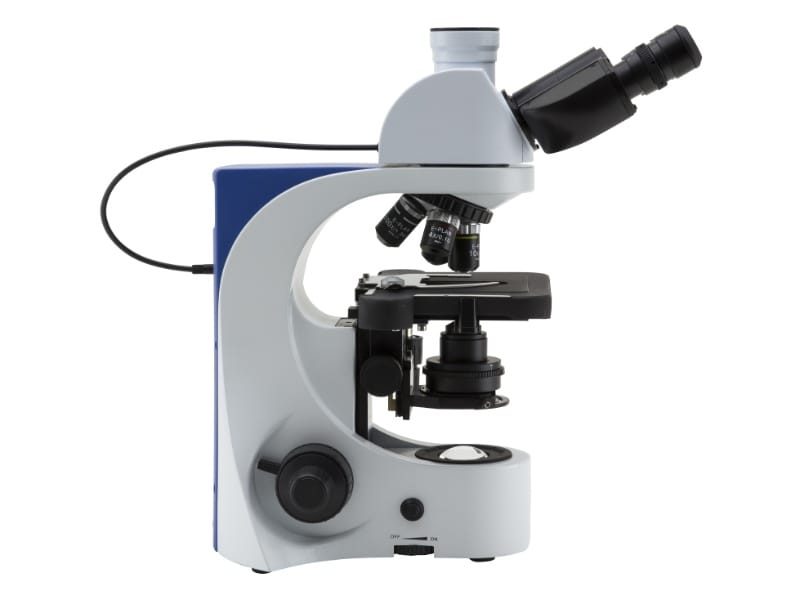

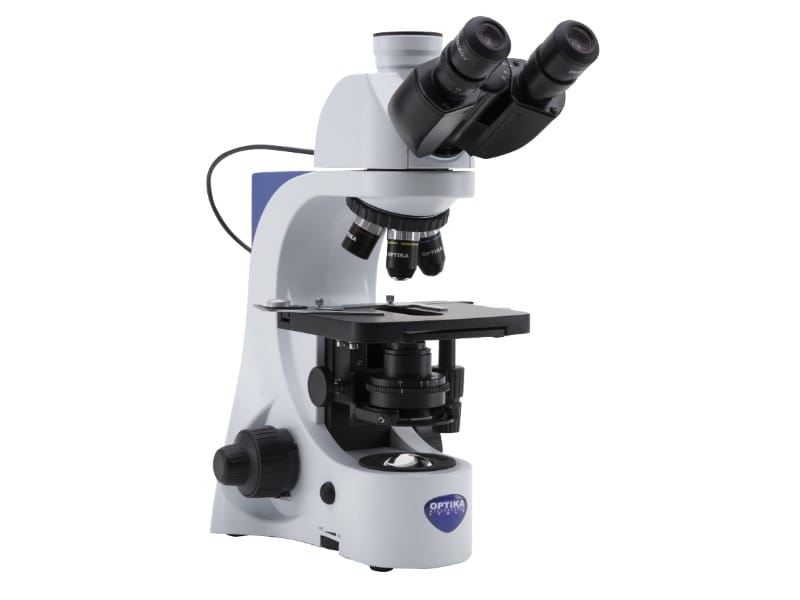

B-380 ALC Binocular brightfield microscope, 1000x, PLAN

€1.070,00 excl. VAT

Estimated delivery time: 3-4 weeks

Brightfield microscope
Magnification: 40x – 1000x
Illumination: 3.6 W X-LED3, ALC
Binocular, 30° inclined
Eyepieces: WF 10x/20

B-382PL-ALC Brightfield Microscope

Binocular Brightfield Microscope with Automatic Light Control

The OPTIKA B-382PL-ALC is a high-performance binocular microscope designed for routine laboratory applications. Featuring N-PLAN objectives and the exclusive X-LED³ illumination system with Automatic Light Control (ALC), it delivers bright, high-contrast images with minimal user adjustment. Ideal for education, biology, and clinical labs.

Key Features:

Binocular head, 30° inclined
N-PLAN objectives: 4x, 10x, 40x, 100x (oil/water)
Quintuple nosepiece, 1000x max magnification
X-LED³ illumination with ALC
Rackless mechanical stage (160×140 mm)
Abbe condenser N.A. 1.25, iris diaphragm

Warranty: 1 years

Lead time: 3-5 weeks

Observation mode: Brightfield.
Head: Binocular, 30° inclined, 360° rotating (when ALC cable is unplugged).
Interpupillary distance: Adjustable between 48 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
N-PLAN 4x/0.10
N-PLAN 10x/0.25
N-PLAN 40x/0.65
N-PLAN 100x/1.25 (Oil/Water)
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 150×139 mm, 75×33 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.
Illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300K) and brightness control. ALC system. Multi-plug 100-240Vac/6Vdc external power supply.

Eyepiece Wide Field, WF 10x/20, High Eyepoint.
Eyepiece Wide Field, EW 15x/16.
M-069 – Solar battery pack
Eyepiece Wide Field, WF 20x/10.
Micrometer eyepiece WF 10x/20, 10mm/100um.
Eyepiece with pointer WF 10x/20.
N-PLAN objective 4x/0.10 (only for B-382PL-ALC, B-383PL, B-383DK).
N-PLAN objective 10x/0.25 (only for B-382PL-ALC, B-383PL, B-383DK).
N-PLAN objective 20x/0.40 (only for B-382PL-ALC, B-383PL, B-383DK).
N-PLAN objective 40x/0.65 (only for B-382PL-ALC, B-383PL, B-383DK).
N-PLAN objective 60x/0.80 (only for B-382PL-ALC, B-383PL, B-383DK).
N-PLAN objective 100x/1.25 (OIL/WATER immersion) (only for B-382PL-ALC, B-383PL).
IOS N-PLAN objective 4x/0.10 (only for B-382PLi-ALC, B-383PLi, B-383LD1, B-383LD2, B-383FL).
IOS N-PLAN objective 10x/0.25 (only for B-382PLi-ALC, B-383PLi, B-383LD1, B-383LD2, B-383FL).
IOS N-PLAN objective 20x/0.40 (only for B-382PLi-ALC, B-383PLi, B-383LD1, B-383LD2, B-383FL).
IOS N-PLAN objective 40x/0.65 (only for B-382PLi-ALC, B-383PLi, B-383LD1, B-383LD2, B-383FL).
IOS N-PLAN objective 60x/0.80 (only for B-382PLi-ALC, B-383PLi, B-383LD1, B-383LD2, B-383FL).
IOS N-PLAN objective 100x/1.25 (OIL/WATER immersion) (only for B-382PLi-ALC, B-383PLi, B-383LD1, B-383LD2, B-383FL).
W-PLAN objective 100x/1.25OI (oil iris) (only for B-383DK).
W-PLAN PH objective 10x/0.25 (only for B-383PH, B-382PH-ALC).
W-PLAN PH objective 20x/0.40 (only for B-383PH, B-382PH-ALC).
W-PLAN PH objective 40x/0.65 (only for B-383PH, B-382PH-ALC).
W-PLAN PH objective 100x/1.25 (Oil) (only for B-383PH, B-382PH-ALC).
M-1120.N IOS W-PLAN PH objective 10x/0.25 (only for B-383PHi, B-382PHi-ALC).
M-1121.N IOS W-PLAN PH objective 20x/0.40 (only for B-383PHi, B-382PHi-ALC).
M-1122.N IOS W-PLAN PH objective 40x/0.65 (only for B-383PHi, B-382PHi-ALC).
M-1123.N IOS W-PLAN PH objective 100x/1.25 (Oil) (only for B-383PHi, B-382PHi-ALC).
IOS N-PLAN POL objective 4x/0.10 (only for B-383POL).
IOS N-PLAN POL objective 10x/0.25 (only for B-383POL).
IOS N-PLAN POL objective 20x/0.40 (only for B-383POL).
IOS N-PLAN POL objective 40x/0.65 (only for B-383POL).
IOS N-PLAN POL objective 60x/0.80 (only for B-383POL).
IOS N-PLAN POL objective 100x/1.25 (OIL/WATER immersion) (only for B-383POL).
IOS W-PLAN MET objective 50x/0.75 (only for B-383LD1, B-383LD2, B-383FL, B-383MET).
IOS W-PLAN MET objective 4x/0.10 (only for B-383MET).
IOS W-PLAN MET objective 10x/0.25 (only for B-383MET).
IOS W-PLAN MET objective 20x/0.40 (only for B-383MET).
Complete PH Set – W-PLAN PH obj. 10x, 40x, 100x – Condenser for BF/DF/PH
(only for B-383PL, B-382PL-ALC, B-383DK).
Complete PH Set – IOS W-PLAN PH obj. 10x, 20x, 40x, 100x – Condenser for BF/DF/PH
(only for B-382PLi-ALC, B-383PLi, B-383LD1, B-383LD2, B-383FL, B-383MET).
HBO100W high-pressure mercury bulb for fluorescence (for B-383FL only).
Heating stage, with digital temperature controller (only on newly purchased microscopes) for B-380IOS.
Polarizing set, filters only (for B-380 series).
Rotating table for polarizing set.
DF condenser for dry objectives.
Field diaphragm for Koehler illumination (for all, except B-383POL).
Ring with blue filter, 45 mm diameter.
Ring with green filter, 45 mm diameter.
Ring with yellow filter, 45 mm diameter.
Ring with frosted glass filter, 45 mm diameter.
Photo adapter for APS-C and Full Frame Reflex cameras.
C-Mount adapter for 1/2” sensor.
C-Mount adapter for 1/3” sensor.
C-Mount adapter for 2/3” sensor.
Micrometer slide for software calibration, 1mm/10um, 10mm/100um.
TNT dust cover, medium – 600(l)x550(h) mm.
OPTIKA immersion oil 10ml.
Cleaning kit.
IQ/OQ/PQ Validation Protocols.
