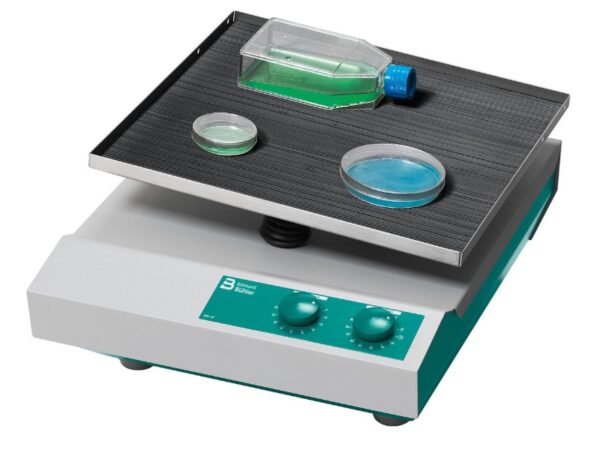

Edmund Buhler Tilt Shaker WS 10
€2.206,00 excl. VAT
- Incl. basic tray
- Motion: linear tilting motion
- Shaking platform: 340 x 340 mm
- Max. load: 10 kg
- Shaking speed: 1 – 23 rpm, steplessly adjustable
- Angle of tilt: 5° fixed
- Timer: 0 – 120 min / continuous
- Order No.: 6114 000
The Tilt Shaker WS 10 works with slow, linear tilting motion and a fix angle of tilt of 5° with a shaking speed of 1 – 23 rpm. The shaking platform of 340 x 340 mm can be loaded with a weight of 10 kg.
Basic Equipment
Basic device incl. basic tray and rubber mat
Warranty: 2 years
Lead time: 4 weeks
| Electrical supply: | 115 – 230 V, 50 / 60 Hz |
| Enclosure protection: | IP 21 |
| Heat emission: | approx. 3 W |
| Ambient temperature: | 5°C to 50°C |
| Relative humidity: | ~ 85 % |
| Dimensions (w x d x h): | 355 x 450 x 205 mm |
| Weight: | 18,5 kg |
