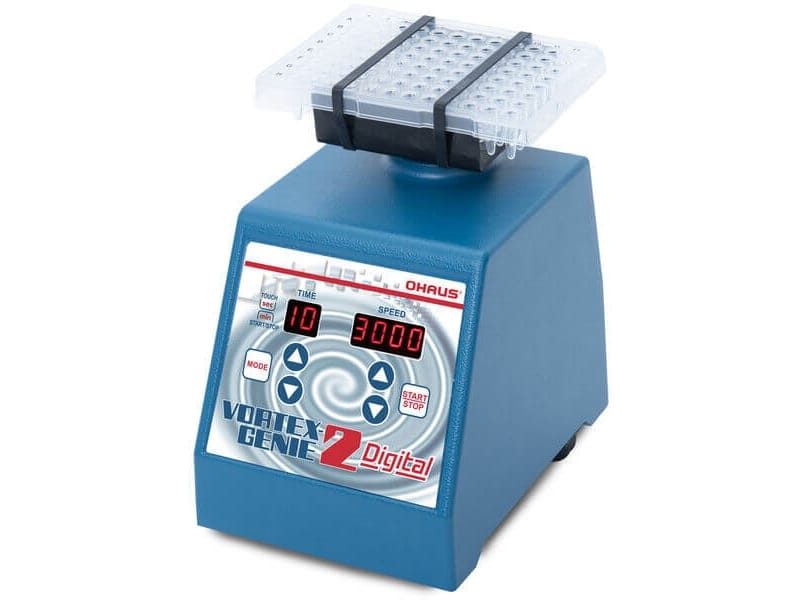

Ohaus VXMPDG Digital Microplate Vortex Mixer
Ohaus VXMPDG Digital Microplate Vortex Mixer
€775,00 excl. VAT
The Ohaus VXMPDG digital microplate vortex mixer provides precise, repeatable mixing for microplates and high-throughput workflows.
Featuring digital speed control with timer, it supports both gentle and vigorous vortexing of microplate wells.
The 3.5 mm orbit is optimized for microplate mixing efficiency and reduced splashing.
This digital microplate mixer is ideal for ELISA, PCR, screening and diagnostic laboratories.
Supplied with standard microplate adapters for immediate use.
Digital Precision for High-Throughput Microplate Mixing
The Ohaus VXMPDG digital microplate vortex mixer is engineered for laboratories that demand precise, reproducible mixing of microplates and other high-throughput sample formats.
Digital controls allow accurate selection of mixing speed, while a built-in timer ensures consistent dwell times across plates. The 3.5 mm orbital motion delivers efficient agitation in wells without excessive splashing — key for ELISA assays, PCR plates and screening protocols.
With intuitive digital interfaces and a clear display, operators can rapidly set and monitor mixing parameters, improving productivity in busy QC, research, pharmaceutical and diagnostic environments.
Designed for Continuous Duty and Stability
The mixer’s heavy base and robust internal drive ensure stability even at higher speeds. A chemically resistant housing tolerates routine cleaning and spill exposure, safeguarding performance and longevity.
The VXMPDG is supplied as standard with:
Dual microplate adapter
Mounting hardware
Removable power lead
Optional holders for single or stacked microplate formats further extend throughput capabilities
Typical Applications
ELISA plate mixing
PCR and qPCR workflows
High-throughput screening
Diagnostic assays
Life-science research
Technical Specifications – Ohaus VXMPDG Digital Microplate Vortex Mixer
| Control | Digital |
| Duty Rating | Continuous |
| Orbit | 0.1 in (3.5 mm) |
| Speed Range | On Mode, 300 rpm – 2500 rpm; Touch Mode, 300 rpm – 3500 rpm |
| Capacity | 2 Microplates |
| Timer | 1 second – 9999 minutes |
| Dimensions | 10.5 in x 4.5 in x 5.4 in (26.7 cm x 11.4 cm x 13.7 cm) (LxHxW) |
| Net Weight | 11.7 lb (5.3 kg) |
| Power | 230V, 0.13A, 50/60Hz |
| Power Consumption | 30 W |
| Safety Certification | CE; TUV |
| Working Environment | 39°F – 104°F, 20% – 85%RH, non-condensing (4°C – 40°C, 20% – 85%RH, non-condensing) |
Available Microplate Holders and Accessories for Ohaus VXMPDG
Cup Head, VXHD and VXMP Vortex Mixers. . . . . 30400210
Double Microplate Holder. . . . . . . . . . . . . . . . . . . . . 30400213
Single Microplate Holder. . . . . . . . . . . . . . . . . . . . . . 30400215
