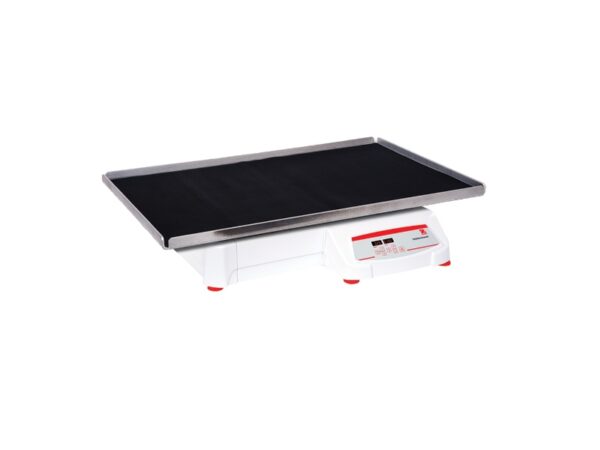

Ohaus SHHD6850DG Large Orbit Heavy Duty Orbital Shaker

SHHD6850DG ohaus laboratory heavy duty shaker

Ohaus SHHD6850DG Large Orbit Heavy Duty Orbital Shaker

€6.940,00 excl. VAT

Estimated delivery time: 2-3 weeks

The SHHD6850DG is a digital heavy duty orbital shaker from Ohaus, combining the widest weight capacity in the range with a large 51 mm orbit. It suits labs culturing the largest volumes or applications that need the strongest mass transfer the Heavy Duty family offers. Its speed range of 15 to 300 rpm is lower than the mid-orbit models, reflecting the more vigorous motion of the larger orbit at a given rpm. The weight capacity runs from 68 kg at 125 rpm down to 18 kg at 300 rpm, matching the largest capacity documented across the family. The Accu-Drive shaking system and a load sensor detect unbalanced loads and automatically reduce speed to protect the sample. An RS232 interface and user speed calibration support integration into a documented, quality-controlled workflow. Its 610 x 910 mm tray is the largest in the family, sized for high-throughput processing of many vessels at once.

Ohaus SHHD6850DG Large Orbit Heavy Duty Orbital Shaker

The largest orbit paired with the widest capacity

The Ohaus SHHD6850DG combines the 51 mm large orbit with the 68 kg maximum weight capacity, making it the model built for the most demanding mixing and aeration needs in the Heavy Duty range.

This pairing suits the largest culture volumes or applications needing the strongest mass transfer the family offers, typically run at a correspondingly lower rpm.

Accu-Drive shaking system and triple eccentric drive

The Accu-Drive shaking system delivers speed control, accuracy, and durability, paired with a brushless DC motor and triple eccentric drive that keeps the tray flat through the entire speed range.

Speed accuracy is within 1% of the set speed above 100 rpm, and within 1 rpm below 100 rpm.

Load sensing and overload protection

An integrated load sensor detects unbalanced or excess-load conditions and automatically reduces speed to protect the sample, backed by overload protection and an audible alarm.

Weight capacity of 68 kg at 125 rpm, scaling down to 18 kg at 300 rpm
Timer adjustable from 1 second to 160 hours
Working environment of -10°C to 60°C, 80% RH, non-condensing

RS232 interface and user calibration

The built-in RS232 interface and user speed calibration support integration into documented, quality-controlled workflows where reproducibility needs to be demonstrated.

Included tray and the wider accessory ecosystem

The SHHD6850DG ships with a built-in tray (610 x 910 mm), the largest in the family, and a non-slip rubber mat, ready to accept flask clamps, test tube racks, and the largest platforms from the shared Ohaus accessory ecosystem.

Ideal Applications

The Ohaus SHHD6850DG suits the following applications.

The largest-volume culture work needing maximum aeration
Applications requiring the strongest mixing in the Heavy Duty range
The highest-volume bulk or high-throughput flask shaking
Bacteria and yeast culture work at maximum volumes
Labs needing RS232 connectivity or user calibration

Choose the SHHD6850DG when:

You need both the widest capacity (68 kg) and the largest orbit (51 mm)
Your application needs the strongest mixing or aeration in the range
A lower speed range (15-300 rpm) fits your protocol
Load sensing and overload protection matter for your samples
You want RS232 connectivity or user speed calibration

Ohaus Value Proposition

The SHHD6850DG combines the widest capacity and the largest orbit in the Heavy Duty range with the Accu-Drive system and RS232 connectivity, for the most demanding mixing jobs in the family.

Ohaus backs the Heavy Duty range with a wide accessory ecosystem and global service network.

Technical specifications – SHHD6850DG

Specification	SHHD6850DG
Product type	Digital heavy duty orbital shaker, large orbit, high capacity
Control	Digital
Motion	Orbital, 51 mm
Speed range	15-300 rpm
Speed accuracy	Above 100 rpm ±1%, below 100 rpm ±1 rpm
Timer	1 sec – 160 h
Weight capacity	68 kg @125 rpm, down to 18 kg @300 rpm
Load sensor	Yes
Overload protection	Yes
Audible alarm	Yes
User speed calibration	Yes
RS232 interface	Yes
Drive system	Brushless DC motor, triple eccentric (Accu-Drive)
Working environment	-10°C to 60°C, 80% RH, non-condensing
Included tray (L x W)	610 x 910 mm
Overall dimensions (L x W x H)	744 x 914 x 170 mm
Net weight	103.9 kg
Power	230V, 2.5A, 50/60Hz
Power consumption	80 W
Compliance	EN 61010-1, EN 61010-2-051, EMC EN 61326-1 Class A, CE, RCM, TUV SUD

Options and Accessories – SHHD6850DG

The SHHD6850DG ships with a built-in tray and a non-slip rubber mat, ready to mount accessories from the shared Ohaus platform ecosystem. The largest platforms and vessel carriers in the range are selected separately based on vessel type and sample count.
