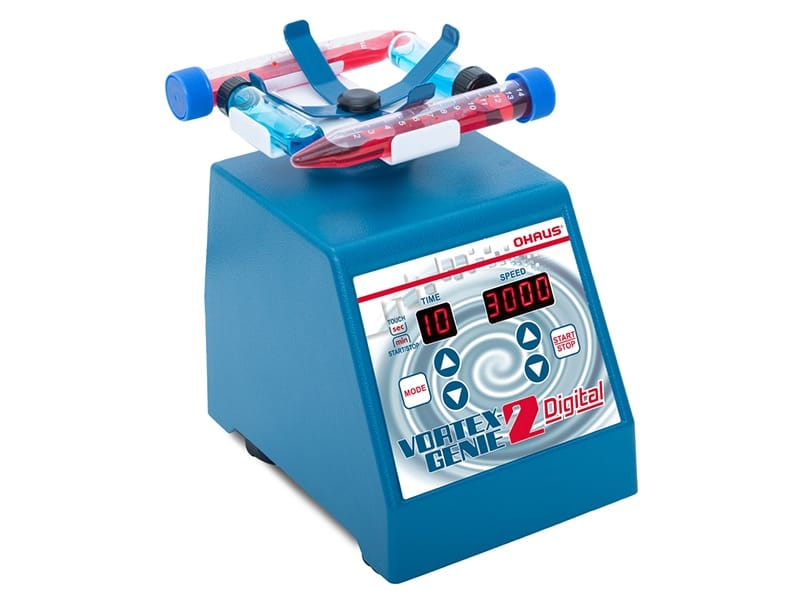

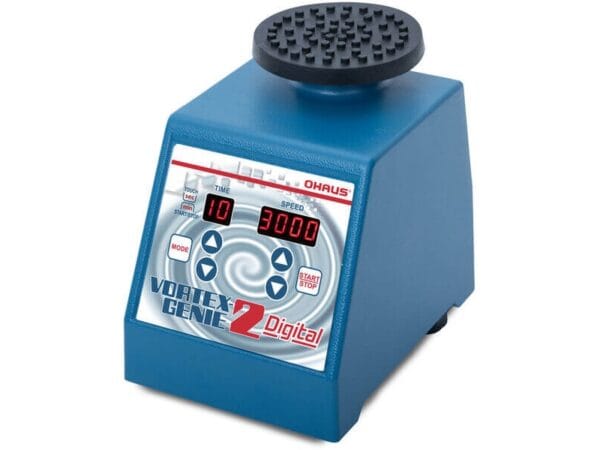

OHAUS Digital Vortex-Genie 2 Laboratory Vortex Mixer
OHAUS Digital Vortex-Genie 2 Laboratory Vortex Mixer
€525,00 excl. VAT
The OHAUS Digital Vortex-Genie 2 Laboratory Vortex Mixer is a laboratory vortex mixer on the Vortex-Genie platform that Scientific Industries introduced in 1964, now part of OHAUS. It adds a digital LED display and a timer from 1 second to 99 minutes for accurate, repeatable mixing durations, on top of the same platform as the Vortex-Genie 2. It runs at 500 rpm – 2850 rpm on 50Hz models, with an orbit of 3.5 mm. It runs in touch mode for quick mixing or continuous hands-free mode for longer runs. Laboratories use it for sample mixing protocols that need an exact, digitally displayed mixing duration. The zinc-cast housing and no-walking-feet design keep the unit stable during operation, and it accepts more than 30 optional Vortex-Genie accessories.
OHAUS Digital Vortex-Genie 2: Digital Display for Accurate, Repeatable Mixing
The OHAUS Digital Vortex-Genie 2 adds a digital LED display and precise timer to the Vortex-Genie platform, for laboratories that need accurate, repeatable mixing durations logged at a glance. It suits protocols where the exact speed and time setting matters for reproducibility.
- It adds a digital LED display and a timer from 1 second to 99 minutes for accurate, repeatable mixing durations, on top of the same platform as the Vortex-Genie 2.
- Speed range of 500 rpm – 2850 rpm
- It runs in touch mode for quick mixing or continuous hands-free mode for longer runs.
- Compatible with more than 30 Vortex-Genie accessories
- You want a digital readout to confirm speed and time settings
OHAUS Digital Vortex-Genie 2 Laboratory Vortex Mixer
The OHAUS Digital Vortex-Genie 2 adds a digital LED display and precise timer to the Vortex-Genie platform, for laboratories that need accurate, repeatable mixing durations logged at a glance. It suits protocols where the exact speed and time setting matters for reproducibility.
Digital Display for Speed and Time
The red LED display shows the set speed and remaining time, so the operator can confirm settings at a glance without guessing from a dial position.
Compatible with a Wide Accessory Range
The OHAUS Digital Vortex-Genie 2 Laboratory Vortex Mixer accepts more than 30 optional accessories, including vertical and horizontal tube holders and the TurboMix attachment.
Ideal Applications
- sample mixing protocols that need an exact, digitally displayed mixing duration
- Dissolving reagents and buffers
- Suspending or re-suspending pellets
- Sample preparation for life science applications
Choose the Digital Vortex-Genie 2 Laboratory Vortex Mixer When:
- You want a digital readout to confirm speed and time settings
- You want touch or hands-free operation in the same unit
OHAUS Value Proposition
The Vortex-Genie name carries decades of use in laboratories worldwide, now continued as part of the OHAUS lab equipment portfolio, backed by the OHAUS dealer network for order handling, after-sales service, and application support.
Technical specifications – Digital Vortex-Genie 2
| Specification | Digital Vortex-Genie 2 |
|---|---|
| Product Type | Digital laboratory vortex mixer |
| Control | Digital |
| Display | Red LED |
| Working Mode | Touch, Hands Free |
| Accessories Included | 3-inch platform, pop-off cup |
| Speed Range (50Hz) | 500 rpm – 2850 rpm |
| Orbit | 3.5 mm |
| Timer | 1-99 seconds; 1-99 minutes |
| Safety Certification | CE, ETL |
| Power (EU) | 230V, 0.5A, 50Hz |
| Dimensions (L x W x H) | 165 x 122 x 165 mm |
| Net Weight | 4 kg |
| Working Environment | 0 C – 38 C, 95% RH, non-condensing |
Options and Accessories – Digital Vortex-Genie 2
The OHAUS Digital Vortex-Genie 2 Laboratory Vortex Mixer ships with 3-inch platform, pop-off cup as standard. Optional accessories extend it to vertical and horizontal tube holders and microplate inserts.
| Accessory | Capacity | Motion |
|---|---|---|
| Vertical Microtube Holder | Microtubes | Vertical |
| Vertical High Speed 15ml Tube Holder | 15 ml tubes | Vertical |
| Vertical High Speed 50ml Tube Holder | 50 ml tubes | Vertical |
| Horizontal Microtube Holder | Microtubes | Horizontal |
| Horizontal 15ml Tube Holder | 15 ml tubes | Horizontal |
| Horizontal 50ml Tube Holder | 50 ml tubes | Horizontal |
| TurboMix Attachment | Multiple tubes | Vigorous |
- Small and large ampule/tube attachments
- Two-tier microplate foam insert
- Inserts for 96-well plate and 60 microtubes
- 6-inch platform, with or without recessed head
- Universal microtube holder
Alternative Laboratory vortex mixers, Scientific Industries Genie Series
- Speed Range: 1000-2850 rpm (50Hz)
- Capacity: 12x 1.5/2.0 mL microtubes
- Control: Digital
- Timer: 1-99 minutes
- Accessories Included: Universal microtube holder, pop-off cup
€820,00 excl. VAT
- Speed Range: 600 rpm – 2700 rpm (50Hz)
- Orbit: 4 mm
- Control: Analog, touch operation
- Timer: No onboard timer, continuous run
- Accessories Included: 3-inch platform, pop-off cup
€403,00 excl. VAT
- Temperature Range: 4 C – 75 C
- Rotating Speed: 1-35 rpm
- Motion: Rotate, Rock, Stir, Shake with accessories
- Timer: 1 min – 99h59min
- Control: Digital, LCD display
€7.030,00 excl. VAT
- Temperature Range: 28 C – 75 C
- Rotating Speed: 3-35 rpm
- Motion: Rotate, Rock, Shake with accessories
- Timer: None
- Control: Digital, LED display
€4.665,00 excl. VAT
- Speed Range: 500 rpm – 2850 rpm
- Orbit: 3 mm
- Control: Digital
- Timer: 1-99 minutes; Pulse ON/OFF 0.1 second – 99 minutes
- Accessories Included: 3-inch platform, pop-off cup
€550,00 excl. VAT
- Rotating Speed: 1-35 rpm
- Rocking Speed: 1-70 rpm
- Motion: Rock, Rotate, Timed auto-switch
- Capacity: 4.5 kg
- Control: Touch Control, LCD
€2.000,00 excl. VAT
