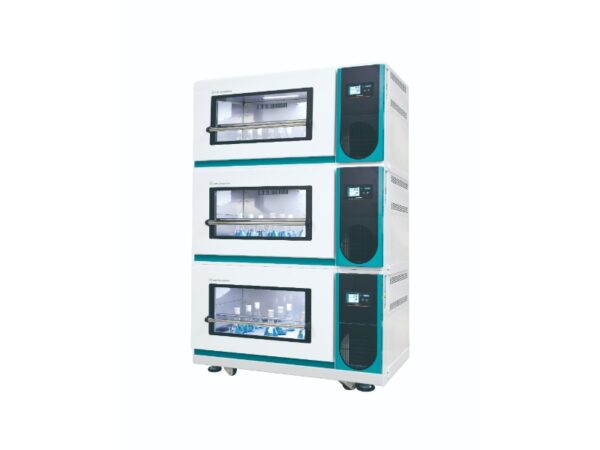

Multi-Stackable Shaking Incubator ISS-7100R
€10.260,00 excl. VAT
- Type: Multi-stackable refrigerated incubator (up to 3 units)
- Motion: Orbital, 25.4 mm orbit
- Temp. range: ambient –20 °C to +80 °C (min. 4 °C)
- Max speed: 400 RPM (single), 250 RPM (stacked)
- Features: 198 L chamber, cooling
Jeiotech ISS-7100R Refrigerated Multi-Stackable Shaking Incubator – High-Precision Cooling & Culturing
The Jeiotech ISS‑7100R is a refrigerated, multi-stackable shaking incubator designed for precise low-temperature applications in biotechnology, fermentation, and cell culture. With temperature control from ambient –20 °C (min. 4 °C) to 80 °C, this system supports a wide range of experimental protocols requiring cooling, heating, or both.

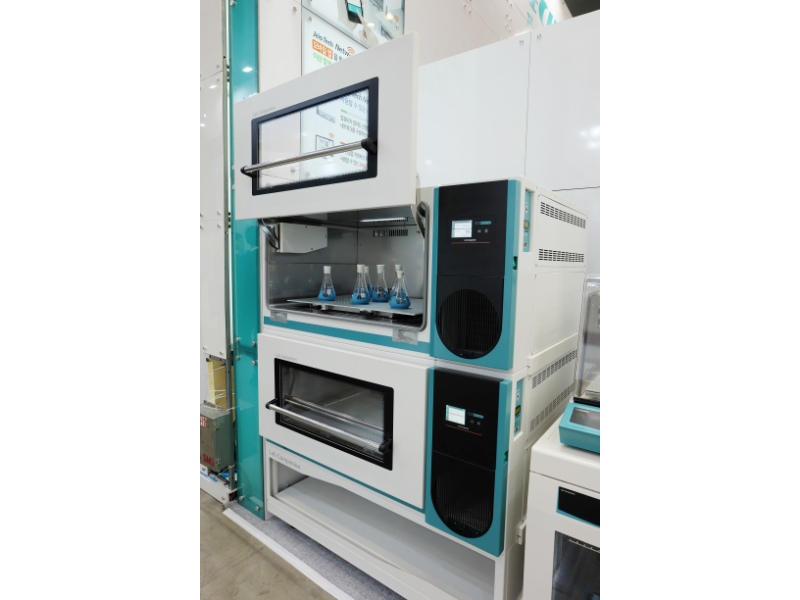

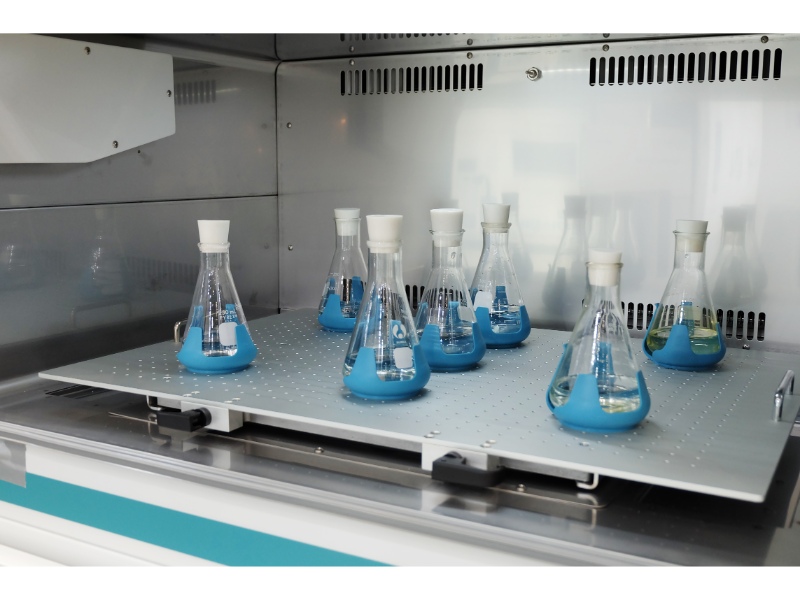

It features orbital shaking with a 25.4 mm orbit and supports up to 400 RPM as a single unit (250 RPM stacked), handling heavy loads up to 20 kg per platform. The chamber volume is 198 L, and access is simplified with a front glide-up door and pull-out platform.
User-friendly controls include a full-color touchscreen with three operation modes (temperature, shaking, or both), a 999-hour timer, and remote monitoring via LC GreenBox (optional). For safety, the system includes dual over-temperature protection, overcurrent shutdown, and a soft start/stop function. Up to three units can be stacked vertically to save space in high-throughput environments.
Key Features Summary:
-
Multi-stackable up to 3 units with refrigeration
-
Temperature range: ambient –20 °C to +80 °C (min. 4 °C)
-
Orbital motion with 25.4 mm orbit, max 400 RPM (single) / 250 RPM (stacked)
-
198 L chamber, 20 kg load capacity per unit
-
Color touchscreen control with timer, alarms, and app connectivity
-
Built-in electronic and mechanical over-temp protection
-
5-year warranty on direct drive motor
Warranty: 1 year
Lead time: if on stock: 2 weeks. If not on stock 10 weeks
| Specification | Details |
|---|---|
| Model | ISS-7100R |
| Type | Multi-stackable refrigerated shaking incubator |
| Motion Type | Orbital |
| Shaking Speed Range | 30–400 RPM (single), 30–250 RPM (stacked) |
| Shaking Orbit | 25.4 mm (1 inch) |
| Max Load per Platform | 20 kg (single), 15 kg (stacked) |
| Temperature Range | ambient –20 °C (min. 4 °C) to +80 °C |
| Temperature Stability | ±0.1 °C |
| Chamber Volume | 198 L (7.0 cu. ft.) |
| Platform Size (W × D) | 755 × 520 mm |
| Interior Dimensions (W × D × H) | 809 × 624 × 393 mm |
| Timer | Countdown up to 999 hr 59 min |
| Touchscreen Control | Yes – Color LCD display |
| Over-Temp Protection | Dual (electronic + mechanical) |
| Monitoring via App | Yes – with optional LC GreenBox |
| Weight (Net) | 320 kg |
| Stackable Up to | 3 units |
| Power Requirements | 230V, 50/60Hz, 5.6A |
| Refrigeration System | Built-in (1/6 HP) |
| Warranty | 2 years general / 5 years for DD motor |
Optional Accessories & Configurations for ISS-7100R
-
Universal Platform (755 × 520 mm)
-
Flask Clamps (Stainless steel or plastic, 50 mL to 6 L)
-
Funnel Clamps (250 mL to 2 L)
-
Spring Wire Rack
-
Test Tube Racks (Ø8 mm to Ø35 mm)
-
Microplate Holders (Single, Tower, Flat A/B)
-
Rubber Mat
-
Universal Attachment
-
Dedicated Platforms (250 mL & 500 mL)
-
Lab Sticker
-
Stand I (600 mm height) – for 1 or 2 stacked units
-
Stand II (300 mm height) – for 2 stacked units
-
Stacking Kit
-
LC GreenBox – for mobile monitoring and alerts
