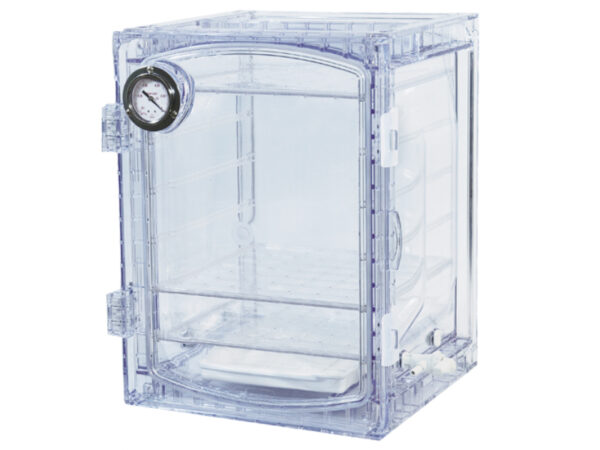

Jeiotech VDC-41 Square Vacuum Desiccator
€1.580,00 excl. VAT
- Type: Square vacuum desiccator with gauge
- Vacuum level: Up to 1 Torr for 72 hours
- Internal volume: 45 L
- Body material: Clear PMMA
- Highlights: Analog gauge, safety locker
Jeiotech VDC-41 Square Vacuum Desiccator – Large-Capacity Vacuum Storage for Safe Laboratory Sample Protection
The Jeiotech VDC-41 square vacuum desiccator offers robust, large-capacity vacuum storage for laboratories that demand secure and dry environments to protect sensitive samples. Ideal for preserving hygroscopic substances, electronics, pharmaceuticals, and other materials vulnerable to moisture and oxidation, this unit ensures reliable storage under controlled vacuum conditions.
Constructed from clear, durable PMMA (polymethyl methacrylate), the VDC-41 provides excellent visibility for monitoring stored items without disrupting the vacuum seal. The seamless, leak-resistant design sustains a maximum vacuum of 1.33 × 10⁻⁴ MPa (1 Torr) for up to 72 hours, delivering peace of mind for long-term storage. A built-in analog vacuum gauge allows real-time monitoring of internal vacuum levels for enhanced safety and control.
The spacious 45 L internal capacity makes the VDC-41 perfect for high-volume storage or large items. Its square design optimizes shelf usage and space efficiency compared to round desiccators. Additional features include a secure safety locker to prevent accidental lid opening under atmospheric pressure and compatibility with perforated shelves for organized storage configurations.
Combining durability, high visibility, and significant capacity, the VDC-41 vacuum desiccator is an excellent choice for demanding laboratory storage needs.
Key Features Summary:
Square vacuum desiccator for high-volume lab storage
Maintains vacuum up to 1.33 × 10⁻⁴ MPa (1 Torr) for 72 hours
Durable PMMA construction for clear visibility
Analog vacuum gauge for real-time monitoring
Large 45 L internal capacity
Safety locker prevents accidental opening
Optimized square design for space efficiency
Warranty: 2 years
Lead time: if on stock: 2 weeks. If not on stock 10 weeks
| Specification | Details |
|---|---|
| Model | VDC-41 |
| Type | Square vacuum desiccator with gauge |
| Internal Volume | 45 L (1.6 cu. ft.) |
| Max. Permissible Vacuum | 1.33 × 10⁻⁴ MPa (1 Torr) |
| Vacuum Holding Time | Up to 72 hours |
| Vacuum Gauge Range (Analog) | 0 to -0.1 MPa |
| Body Material | PMMA (Polymethyl methacrylate) |
| Internal Dimensions (W × D × H) | 355 × 374 × 445 mm (14.0 × 14.7 × 17.5 in.) |
| External Dimensions (W × D × H) | 420 × 397 × 491 mm (16.5 × 15.6 × 19.3 in.) |
| Perforated Shelf Dimensions | 289 × 340 mm (11.4 × 13.4 in.) |
| Desiccant Tray Dimensions | 218 × 268 × 26 mm |
| Nozzle Diameter | 9.5 mm (0.37 in.) |
| Max. Load per Shelf | 15 kg (33.1 lbs) |
| Quantity of Shelves (Standard/Max) | 3 / 6 |
| Net Weight | 7.6 kg (16.8 lbs) |
| Safety Locker | Yes |
| RoHS Compliant | Yes |
| Warranty | 2 years |
Optional Accessories & Configurations
Perforated Shelves – flexible internal layout
3-way Valve – simplifies vacuum formation and venting
Vacuum Seal Replacement Kit – ensures long-term vacuum integrity
Silica Gel Desiccant – moisture absorption for optimal dryness
