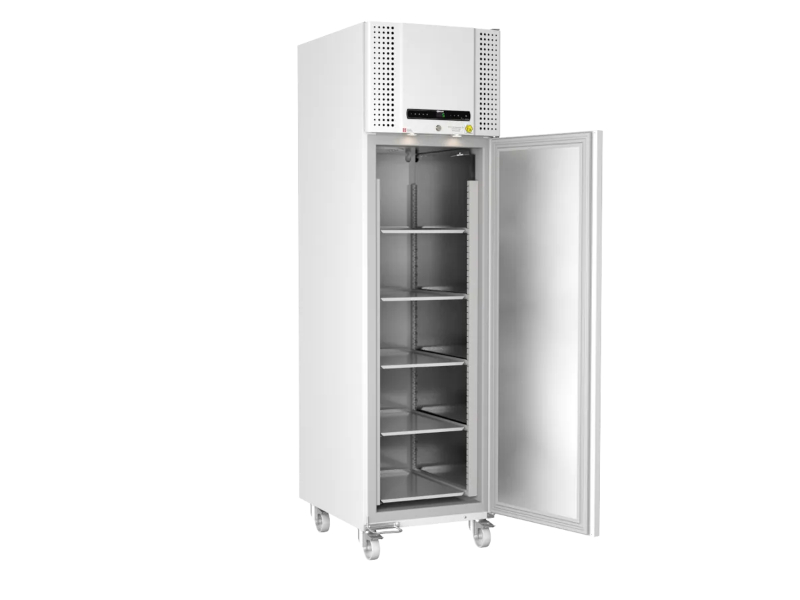

Gram BioPlus RF500 Laboratory Freezer
Pricing on request
The Gram BioLine BioPlus RF500 is a high-capacity laboratory freezer engineered for storing sensitive pharmaceuticals and biomaterials. With a temperature range of -5 to -25 °C and a net volume of 365 L, this model combines robust performance with energy efficiency at just 3.83 kWh/24h. Its durable stainless steel interior, ventilated cooling system, and automatic smart defrost ensure long-term reliability. Certified for ATEX Cat. 3 Zone 2 environments, the RF500 is ideal for storing flammable substances safely in GMP and biotech settings.
Premium ATEX Freezer for GMP-Compliant Cold Storage
The BioPlus RF500 from Gram BioLine delivers ultra-stable cold storage for critical life science and pharmaceutical applications. Designed to meet the most stringent laboratory requirements, it features stainless steel construction, smart alarms, and advanced airflow for precise temperature uniformity. Whether for vaccines, chemicals, or biological samples, the RF500 ensures safe, efficient, and compliant long-term freezing.
Warranty: 1 year
Lead time: 2 weeks
Specifications Gram BioLine BioPlus RF500 Freezer
| Temperature range | -25 °C/-5 °C |
| Ambient temperature range | +10 °C/+43 °C |
| Control unit | Gram Control Unit with voltage free contact, E-sensor and offset function |
| Alarms | Acoustic and visual, High/Low temperature alarms and door alarm |
| Access port | 1 pcs. Ø 24.5 mm |
| Material interior | Stainless steel |
| Material exterior | White lacquered steel or stainless steel |
| Dimensions (WxDxH) | 600 x 805 x 2025/2275* |
| Net weight | Unpackaged net weight without optional fittings: 130 kg |
| Gross volume | 500 litres |
| Net volume | 365 litres |
| Modules for shelves and drawers | Shelves 52 – Drawers 13 |
| Insulation | 60 mm polyurethane with HFC-free cyclopentane propellant |
| K-Value | Solid door 0.31 W/m²K |
| Refrigerant | R290 |
| Refrigerant charge | 92 g |
| Refrigeration capacity at -25°C | R290 374 watt |
| CO2e | – |
| Energy consumption (kWh/24h) (R290) | 3.83 |
| Heat emission (Watt) (R290) | 350,69** |
| Connection | 230 V, 50 Hz |
| Connection load (Watt) (R290) | 336 |
| Start current (R290) | 10,4 A |
| Sound level | 48.7 dB(A) |
| Air system | BioLine ventilated air distribution system |
| Defrost system | Automatic smart defrost with re-evaporation of defrost water |
Options Gram BioLine BioPlus RF500 Laboratory Freezer
- Aluminium drawers
- ABS drawers
- Perforated stainless steel shelf
- Stainless steel – wire shelf
- plastic white coated wire shelf
- Wire basket
- Reference container
- Legs, castors or plinths
- Wall mounting
- IQ OQ
- PQ
