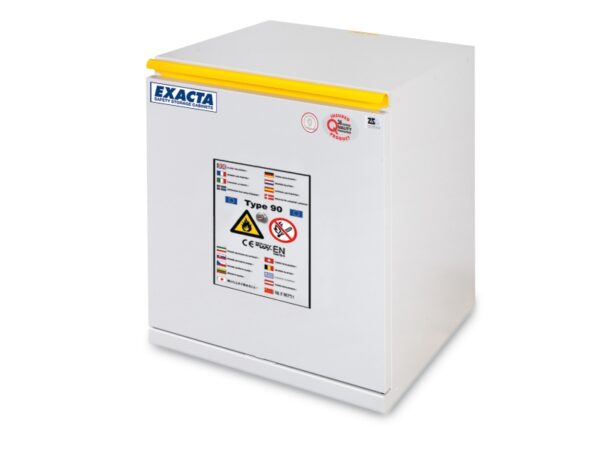

Exacta EOF706TMY23 Fireproof Under-Bench Safety Cabinet with Drawer – Flammable Liquids
€1.492,00 excl. VAT
The Exacta EOF706TMY23 is a fireproof under-bench cabinet with drawer opening, designed for safe storage of flammable liquids in laboratories. Certified to EN 14470-1 Type 90 and EN 16121, it provides 90 minutes of fire resistance and ergonomic drawer access for safer handling under fume hoods. Also available with left- or right-hinged doors.
Fireproof Under-Bench Cabinet with Drawer – EN 14470-1 Type 90
The Exacta EOF706TMY23 ensures maximum fire protection for laboratory flammables, with 90 minutes of fire resistance tested to EN 14470-1:2023. Built with electro-galvanized steel, anti-acid epoxy coating, and rock wool insulation, this cabinet guarantees durability and safety in demanding lab environments.
The pull-out drawer system allows ergonomic access from above, reducing handling risks when installed beneath a fume hood. In case of fire, intumescent seals expand for airtight closure, and fire dampers shut off ventilation ducts automatically.
The EOF706TMY23 is certified to EN 14470-1 (Type 90 fire resistance) and EN 16121 strict version for laboratory furniture. Standard configuration includes a painted steel retention tray and grid, with a total capacity of 15 × 1L bottles.
While the drawer version is standard, customers may also choose left- or right-turning doors to adapt to specific workflows.
Lead time: 6-7 weeks
| Specification | EOF706TMY23 |
|---|---|
| External dimensions (H×W×D) | 720 × 595 × 520 mm |
| Internal dimensions (H×W×D) | 593 × 483 × 349 mm |
| Useful height | 449 mm |
| Storage capacity | 15 × 1L bottles |
| Structure | Electro-galvanized steel, epoxy anti-acid coating |
| Fire protection | Rock wool + calcium sulfate panels |
| Fire resistance | 90 minutes (EN 14470-1:2023) |
| Interior | Melamine panels, resistant to vapors |
| Retention system | 1 painted steel retention tray + grid |
| Volume of tray | 16 L |
| Opening type | Drawer (default), left/right doors optional |
| Weight | 85 kg |
| Certifications | EN 16121, EN 14470-1:2023, tested EN 1363-1 |
Versions with flammable liquids labeling
Opening options: Drawer (default), left-turning door, right-turning door
Painted or stainless-steel retention trays
Socle for under-bench installation (600 × 500 × 70 mm)
Set of 4 castors (2 with brakes)
Ventilation collar Ø100 mm
Ventilation or filtration units (NF X 15-211 compliant)
