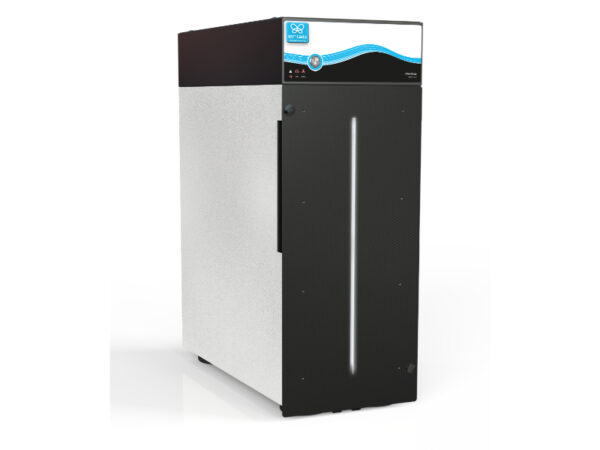

Erlab Captair Chemtrap V201 Smart – Filtration Unit with Solvent Sensor
Erlab Captair Chemtrap V201 Smart – Filtration Unit with Solvent Sensor
Pricing on request
The Erlab Captair Chemtrap V201 Smart is a compact standalone filtration system for chemical storage cabinets. With 35 m³/h airflow, Smart monitoring, and a built-in solvent sensor, it ensures maximum safety and compliance with NFX 15-211 standards.
The Erlab Captair Chemtrap V201 Smart is a high-performance standalone filtration system designed to protect laboratory staff and ensure safe chemical storage. Unlike the Midcap version, the Smart model is equipped with advanced monitoring technology and a Molecode solvent sensor for real-time safety control.
Operating at 35 m³/h airflow, the Chemtrap V201 Smart is ideal for underbench chemical storage cabinets. It features a modular filtration column configurable with Erlab’s wide range of molecular and particulate filters to match your laboratory’s storage needs, including organic vapours, acids, ammonia, and formaldehyde.
With Smart communication technology, the unit provides intuitive LED light pulses and alarms to continuously monitor filtration efficiency. It also supports network connection for data monitoring and enhanced safety management.
Built from anti-corrosion steel and durable polypropylene, the Chemtrap V201 Smart meets the rigorous AFNOR NFX 15-211 standard, guaranteeing compliance, reliability, and long-term safety in laboratory environments.
Lead time: 6-7 weeks
| Specification | Chemtrap V201 Smart |
|---|---|
| External dimensions (mm) | L 245 × P 1004 × H 632 |
| Filtration column | 1 |
| Filter configuration | 2C |
| Molecular filter | To order |
| Air flow rate | 35 m³/h |
| Voltage / Frequency | 110–230 V / 50–60 Hz |
| Power consumption | 15 W |
| Sensors | Temperature / RH sensor, Solvent (Molecode S) |
| Network connection | Yes |
| Monitoring | Smart LED and alarm system |
| Marking | CE |
| Standards compliance | NFX 15-211:2009, EN 1822 |
Wide selection of molecular filters (Organic vapours, Acids, Ammonia, Formaldehyde)
Optional particulate filtration with HEPA H14 (99.995% efficiency)
Built-in Smart communication with LED pulse status indicators
Integrated Molecode sensor (Acids, Solvents, or Formaldehyde)
Supplied with 1 m flexible connection tube and clamp
Alternative Storage cabinet accessories
- Solvent carbon filter panel for DIAM125BP. Removes vapours before air is vented outside. Not for NF X 15-211 recirculation. Replace every 6 months.
Price on request
- Airflow: 360 m³/h extraction; IP44 motor protection
- Outlet / use: Ø125 mm—connect to external duct for safe discharge
- Size / weight: 290×290×270 mm, 20 kg
- Build: Steel housing, aluminium rotor; –20 °C to +50 °C; 47 dB
- Includes & extras: Power cord, built-in filter box + accessories (K89007, GFKIT125, GF125)
Price on request
- Airflow 60 m³/h – optimized for tall chemical storage cabinets
- Compact standalone design
- Filter flexibility – modular filtration for organic vapours, acids, ammonia, or formaldehyde
- NFX 15-211 certified – meets the highest chemical storage standards
- Monitoring features – not applicable on Midcap models
Price on request
The Erlab H01011021 HEPA H14 filter is designed for the Chemtrap V201. It is used in combination with an activated carbon filter and delivers 99.995% efficiency at ≥0.3 μm, making it ideal for capturing powders and fine particulates. Fully compliant with NFX 15-211.
Price on request
The Erlab H01042301 K activated carbon filter is designed for the Chemtrap H402. Installed as a single filter layer, it provides efficient adsorption of ammonia vapors. Fully compliant with NFX 15-211 for laboratory safety.
Price on request
The Erlab H01112021 HEPA H14 filter is built for the Chemtrap H402. Used in combination with an activated carbon filter, it captures powders and particulates with 99.995% efficiency (≥0.3 μm). Fully compliant with NFX 15-211.
Price on request
