Binder WIC 3 walk-in climate chamber
Pricing on request *
Benefits:
- Stable and uniform environment
- Fully complies with Pharma regulations (ICH)Equipment
- Longevity – corrosion resistant
- Ease of operation
- Environmental friendly refrigerant with GWP value 547
- Maintenance possible with the least possible disruption to the climate conditioning
- Perfectly meets requirements in Pharma industry
- 3 years warranty
Important features:
- Relative humidity accuracy of ± 2.5%
- Temperature accuracy of ± 1.5°C
- Duct work for proper distribution of air
- Highly insulated room panels with U value of only 0,21 W/m2K
- LED Lighting with motion detector
- High quality room elements, made in Germany
- Interior completely stainless steel
- Exterior service accessibility
- Room Elements: Galvanized sheet steel, polyester coated, white, similar to RAL 9010, interior surfaces in stainless steel, 4 inch / 100 mm PU foam U value: 0,21W/m2K
- Floor: Floor overlay is chrome-nickel steel, pattern-rolled 5WL
- Surface load: 50.000 N/m2
Description

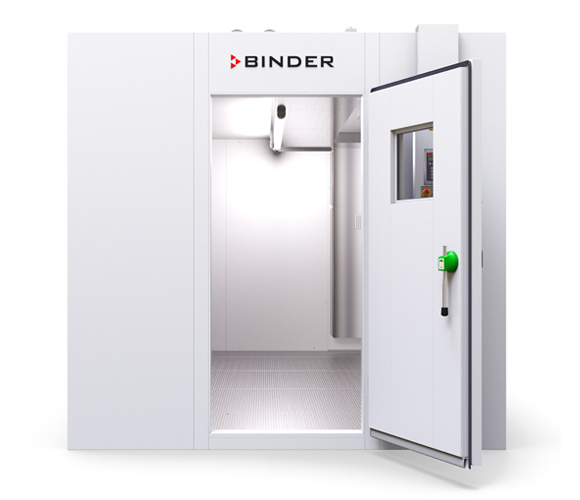

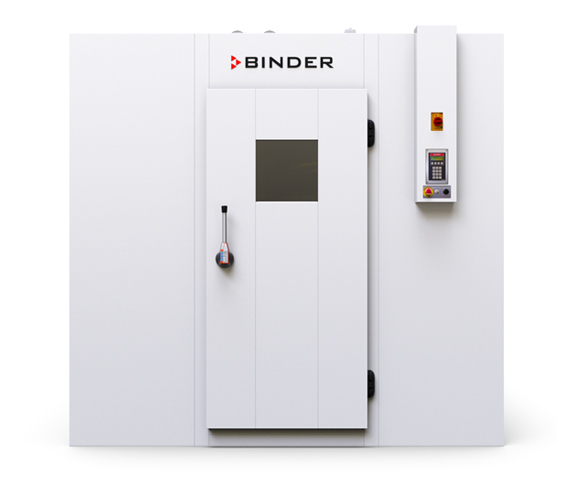

Binder WIC 3 Walk‑In Chamber – 24 m³ Walk‑In Environmental & Stability Chamber
The Binder WIC 3 walk‑in chamber delivers precise and stable environmental conditions for ICH-compliant stability testing, shelf-life simulations, and long-term storage applications. With an internal volume of approximately 24 m³ (2,400 × 4,500 × 2,270 mm), it provides consistent performance within a temperature range of 10 °C to 50 °C (±1.5 °C) and a humidity range of 20 % to 90 % RH (±2.5 %).
The chamber features a robust stainless steel interior and a galvanized, polyester-coated exterior in RAL 9010. Highly efficient 100 mm polyurethane insulation panels ensure excellent thermal stability with a U-value of 0.21 W/m²K. The floor, made of patterned 5WL chrome-nickel steel, supports heavy loads up to 50,000 N/m²—ideal for large-scale lab use.
The WIC 3 includes LED lighting with motion sensors, a lockable door with internal safety release, and a 50 mm access port for external monitoring devices. Maintenance is simplified thanks to an externally mounted air-conditioning unit, which avoids disrupting internal conditions during servicing.
This walk-in environmental chamber uses an environmentally friendly R450A refrigerant (GWP 547) and meets all ICH Q1A (R2), GMP, and GLP requirements. It is well-suited for pharmaceutical, food, cosmetic, and material stability studies, and includes a 3-year warranty for peace of mind.
Key Features:
-
Volume: ~24 m³ (2,400 × 4,500 × 2,270 mm)
-
Temperature Range: 10 °C to 50 °C (±1.5 °C)
-
Humidity Range: 20 % to 90 % RH (±2.5 %)
-
Construction: Stainless steel interior; RAL 9010-coated exterior
-
Insulation: 100 mm PU panels, U-value 0.21 W/m²K
-
Floor Load Capacity: Up to 50,000 N/m²
-
Airflow System: Ducted for climate uniformity
-
Lighting: LED with motion detection
-
Access: Lockable door with safety release; 50 mm access port
-
Refrigerant: R450A (GWP 547), eco-friendly
-
Serviceability: External air-conditioning unit
-
Compliance: ICH Q1A (R2), GMP, GLP
-
Warranty: 3 years
Specifications
Warranty: 3 years
Lead time: 8 weeks
| Designation | WIC3-230V |
| Article Number | 9800-0013 |
| Performance Data Climate | |
| Temperature range with humidity | 10…50 °C |
| Humidity range | 20…90 % RH |
| Temperature uniformity at 25°C and 60% RH | 1.5 ± K |
| Temperature uniformity at 40°C and 75% RH | 1.5 ± K |
| Temperature fluctuation at 25°C and 60% RH | 0.5 ± K |
| Temperature fluctuation at 40°C and 75% RH | 0.5 ± K |
| Measures | |
| Interior volume | 24,516 L |
| Net weight of the unit (empty) | 1,186 kg |
| Doors | |
| Unit doors | 1 |
| Internal Dimensions | |
| Interior width | 2,400 mm |
| Interior height | 2,270 mm |
| Interior depth | 4,500 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 2,600 mm |
| Height net | 2,470 mm |
| Depth net | 4,700 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 230 V |
| Power frequency | 50 Hz |
| Nominal power | 2,7 kW |
| Nominal current | 11,5 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Energy consumption at 40°C and 75% RH | 1,150 Wh/h |
Full list: see datasheet
