Binder MKFT 720 dynamic climate chamber
Pricing on request *
Benefits:
- Homogeneous climate conditions thanks to APT.line™ technology
- Automatic water and wastewater management
- Pressure humidification with fast response times
- Comprehensive programming and data acquisition
- Large heated viewing window
Important features:
- Temperature range: -70 °C to +180 °C
- Humidity range: 10 % to 98 % RH
- Integrated water-storage tank, 20 liters
- 4 zero-voltage relay contacts
- APT.line™ preheating chamber technology
- Programmable condensation protection for test material
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Heated viewing window with LED interior lighting
- Humidity regulation with capacitative humidity sensor and vapor humidification
- BINDER Multi Management Software APT-COM™ Basic Edition
- Troubleshooting system with visual and audible alarms
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- Access port with silicone plug (Models 115, 240: 50 mm, left)
- 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
- 4 castors, two with brakes
- Computer interface: Ethernet
- Adjustable ramp function
- Integrated chart recorder
- Real-time clock
- Door heating
- Alarm notification in the event of insufficient water in fresh water tank
- 1 stainless steel rack
- Complete safety connection kit for water supply and drainage, up to 1 m in height
- Inner chamber made of stainless steel
- CFC-free refrigerants R-452A and R-23
- Cooling with cascade compressor cooling unit
Description

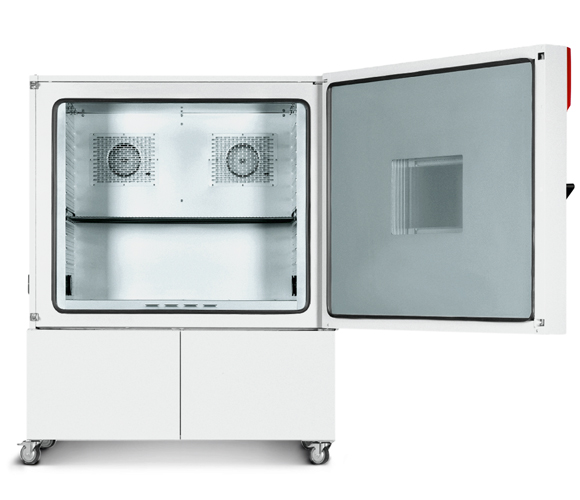

Binder MKFT 720 Climate Chamber – 734 L Dynamic Environmental Chamber for Extreme Conditions
The Binder MKFT 720 climate chamber is a large-capacity, high-performance environmental chamber engineered for demanding dynamic temperature and humidity testing. With a generous 734-liter stainless steel chamber, this unit delivers exceptional stability and rapid change rates for critical testing in aerospace, automotive, electronics, and materials science.
Operating across an extended temperature range from –70 °C to +180 °C and a humidity range from 10 % to 98 % RH, the MKFT 720 ensures reliable performance even during rapid thermal cycling. APT.line™ preheating technology maintains uniform climate conditions throughout the chamber, while the steam-based humidification system combined with a capacitive humidity sensor provides precise humidity control.
This chamber features a user-friendly touchscreen controller that supports both real-time and time-segment programming, as well as ramp functions. Data logging is seamless via USB and Ethernet interfaces, and an integrated chart recorder adds further traceability. A 20-liter integrated water tank manages automated water supply and drainage, reducing the need for external connections.
Additional highlights include a heated viewing window with LED lighting, two 80 mm access ports (left and right), programmable condensation protection, door heating, and a Class 2 adjustable temperature safety device with visual and audible alarms. Mounted on four castors (two lockable), the MKFT 720 is both mobile and robust. It uses environmentally friendly R‑452A and R‑23 refrigerants in a cascade cooling system.
Key Features:
-
Temperature range: –70 °C to +180 °C
-
Humidity range: 10 % to 98 % RH
-
Chamber volume: 734 L
-
APT.line™ preheating technology for consistent climate distribution
-
Steam humidification with capacitive humidity sensor
-
Integrated 20 L water tank for auto supply and drainage
-
Touchscreen controller with real-time and time-segment programming
-
Data interfaces: USB, Ethernet, integrated chart recorder
-
Access and visibility: Heated viewing window with LED lighting, two 80 mm access ports
-
Condensation protection and door heating
-
Class 2 safety device with alarms
-
Four castors, two lockable for mobility
-
CFC-free refrigerants: R‑452A and R‑23
Specifications
Warranty: 2 years
Lead time: 2-3 weeks
| Designation | MKFT720-400V |
| Article Number | 9020-0384 |
| Performance Data Temperature | |
| Temperature range | -70…180 °C |
| Temperature uniformity dependent on set value | 0.3…2.0 ± K |
| Temperature fluctuation dependent on set value | 0.1…0.1 ± K |
| Average heating-up rate according to IEC 60068-3-5 | 4.8 K/min |
| Cooling down time from 180°C to -70°C | 120 min |
| Average cooling down time according to IEC 60068-3-5 | 4.0 K/min |
| Performance Data Climate | |
| Temperature range with humidity | 10…95 °C |
| Humidity range | 10…98 % RH |
| Temperature fluctuation with humidity dependent on set value | 0.1…1 ± K |
| Humidity fluctuation with humidity dependent on set value | ≤2,5 ± % r.F. |
| Max. heat compensation at 25°C and 90% RH | 800 W |
| Measures | |
| Interior volume | 734 L |
| Net weight of the unit (empty) | 635 kg |
| Load per rack | 40 kg |
| Permitted load | 160 kg |
| Doors | |
| Unit doors | 1 |
| Internal Dimensions | |
| Interior width | 1,200 mm |
| Interior height | 1,020 mm |
| Interior depth | 600 mm |
| Wall clearance | |
| Wall clearance back | 300 mm |
| Wall clearance sidewise | 200 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 1,580 mm |
| Height net | 2,005 mm |
| Depth net | 1,140 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 400 V |
| Power frequency | 50 Hz |
| Nominal power | 11 kW |
| Nominal current | 22,5 A |
| Unit fuse | 32,0 A |
| Phase (Nominal voltage) | 3~/N/PE |
| Environment-specific data | |
| Sound-pressure level | 69 dB(A) |
| Energy consumption at 25°C and 60% RH | 2,200 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 1/11 |
Full list: see datasheet
