Binder MKF 240 dynamic climate chamber
Pricing on request
Benefits:
- Homogeneous climate conditions thanks to APT.line™ technology
- Automatic water and wastewater management
- Pressure humidification with fast response times
- Comprehensive programming and data acquisition
- Large heated viewing window
Important features:
- Temperature range: -40°C to +180°C
- Humidity range: 10% to 98% RH
- Humidity regulation with capacitive humidity sensor and steam humidification
- APT.line™ preheating chamber technology
- Intuitive touchscreen controller with time-segment and real-time programming
- CFC-free refrigerant R-452A
- Integrated water-storage tank, 20 L
- 1 stainless steel rack
- Access port with silicone plug (models 56, 115, 240, 400), 50 mm, left
- 2 access ports with silicone plugs (models 720, 1020), 80 mm, left and right
- 4 zero-voltage relay contacts
- Heated viewing window with LED interior lighting

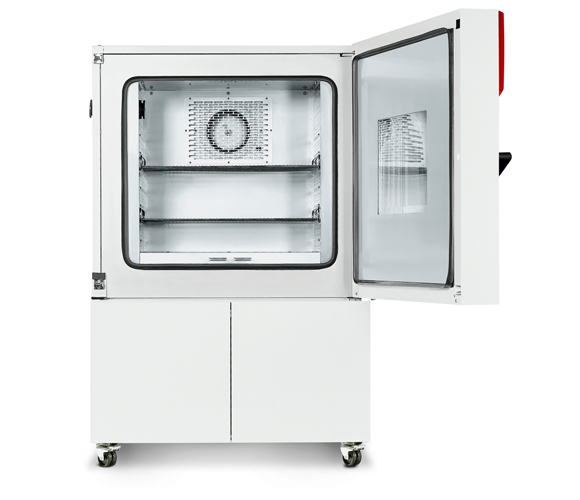

Binder MKF 240 Climate Chamber – 228 L Dynamic Environmental Chamber with Humidity Control
The Binder MKF 240 climate chamber offers reliable and precise environmental simulation for demanding testing scenarios involving rapid temperature changes and controlled humidity. With a spacious 228-liter stainless steel interior, this chamber is ideal for thermal cycling, stress testing, and aging studies in industries like automotive, electronics, aerospace, and materials research.
Operating within a temperature range of –40 °C to +180 °C and a humidity range of 10 % to 98 % RH, the MKF 240 ensures consistent and repeatable test conditions. It features APT.line™ preheating technology for uniform air distribution, along with a capacitive humidity sensor and steam humidification system for accurate and fast-response climate control.
This model includes a user-friendly touchscreen controller that supports both real-time and time-segment programming. Data can be logged via USB or Ethernet, and the integrated chart recorder and real-time clock allow traceable documentation. A built-in 20-liter water tank ensures reliable humidification without the need for direct plumbing.
Additional features include a heated viewing window with LED lighting, a 50 mm access port, programmable condensation protection, and an advanced safety system with alarms and a Class 2 temperature safety device. The MKF 240 is mounted on castors for easy mobility and uses environmentally friendly, CFC-free R‑452A refrigerant.
Key Features:
Temperature range: –40 °C to +180 °C (uniformity ±0.1 to ±1.5 K)
Humidity range: 10 % to 98 % RH (±2.5 %)
Chamber volume: 228 L
Humidity control: Steam humidification with capacitive sensor
Preheating system: APT.line™ for homogeneous climate conditions
Water system: 20 L integrated tank with auto refill and drain
Controller: Touchscreen with ramp and time-segment programming
Data logging: USB and Ethernet; integrated chart recorder
Viewing window: Heated with internal LED lighting
Access port: 50 mm on the left side
Safety: Class 2 temperature safety device, visual and audible alarms
Mobility: Four castors (two with brakes)
Refrigerant: R‑452A (CFC-free, environmentally friendly)
Warranty: 2 years
Lead time: 2-3 weeks
| Designation | MKF240-400V |
| Article Number | 9020-0380 |
| Performance Data Temperature | |
| Temperature range | -40…180 °C |
| Temperature uniformity dependent on set value | 0.1…1.5 ± K |
| Temperature fluctuation dependent on set value | 0.1…0.5 ± K |
| Average heating-up rate according to IEC 60068-3-5 | 5.0 K/min |
| Cooling down time from 180°C to -40°C | 120 min |
| Average cooling down time according to IEC 60068-3-5 | 5.0 K/min |
| Performance Data Climate | |
| Temperature range with humidity | 10…95 °C |
| Humidity range | 10…98 % RH |
| Temperature fluctuation with humidity dependent on set value | 0.1…1.3 ± K |
| Humidity fluctuation with humidity dependent on set value | ≤2,5 ± % r.F. |
| Max. heat compensation at 25°C and 90% RH | 400 W |
| Measures | |
| Interior volume | 228 L |
| Net weight of the unit (empty) | 360 kg |
| Load per rack | 30 kg |
| Permitted load | 70 kg |
| Doors | |
| Unit doors | 1 |
| Internal Dimensions | |
| Interior width | 735 mm |
| Interior height | 700 mm |
| Interior depth | 443 mm |
| Wall clearance | |
| Wall clearance back | 300 mm |
| Wall clearance sidewise | 200 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 1,115 mm |
| Height net | 1,715 mm |
| Depth net | 925 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 400 V |
| Power frequency | 50 Hz |
| Nominal power | 6,8 kW |
| Nominal current | 11,5 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 3~/N/PE |
| Environment-specific data | |
| Sound-pressure level | 65 dB(A) |
| Energy consumption at 25°C and 60% RH | 1,500 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 1/6 |
Full list: see datasheet
