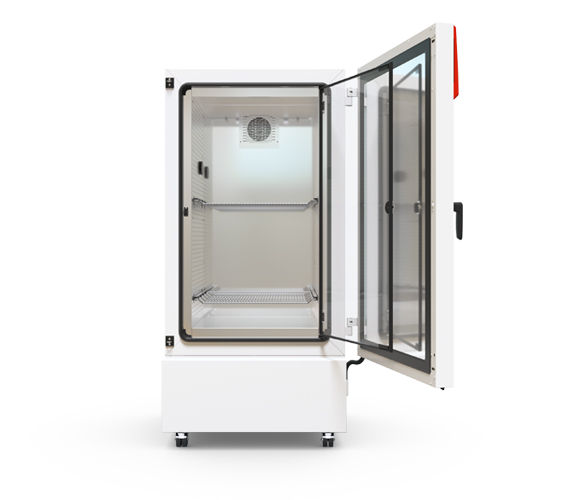

Binder KB 470 cooling incubator
€12.468,00 excl. VAT
- Volume: 472 liter
- Temperature range: 0°C to +70°C
- Proven APT.line™ preheating chamber technology
- Up to 40% lower energy consumption compared to the previous model
- Energy-efficient cooling with modern inverter cooling unit
- Cooling with climate-neutral R-600a refrigerant
- Door heating to prevent condensation
- Robust housing design with HIT sandwich technology
- Interior made completely of stainless steel
- Inner doors made of metal oxide-coated safety glass
- Two racks made of stainless steel
- Large access port with silicone plug
- Tabletop units (up to model 130) are stackable with stacking adapter
- Floor-standing units (from model 260) featuring robust twin casters, with brakes at the front
- Simple programming of a second set temperature value
- Internal data logger, measured values can be read out in open format via USB
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
- Unit self-test for comprehensive status analysis
- Data interfaces: Ethernet, USB
Description
Binder KB 470 Cooling Incubator – Large-Capacity Precision Cooling for Laboratory Excellence
The Binder KB 470 cooling incubator is a high-capacity solution engineered for laboratories that require reliable, uniform temperature control across a wide range of applications, including microbiological research, pharmaceutical stability testing, and environmental simulation. With a generous 470-liter chamber and a temperature range from 0 °C to +70 °C, this incubator offers powerful performance without compromising energy efficiency.
Thanks to state-of-the-art inverter compressor technology and climate-friendly R-600a refrigerant, the KB 470 reduces energy consumption by up to 40% compared to previous-generation models. Binder’s proprietary APT.line™ preheating chamber technology ensures optimal temperature uniformity—even with large sample loads or frequent door openings—while the heated door system effectively prevents condensation buildup on the inner glass.
The KB 470 also features a robust stainless steel interior, HIT™ sandwich construction for durability, and metal oxide-coated safety glass inner doors for sample visibility. With its built-in data logger, Ethernet and USB ports, and intuitive control interface, this incubator simplifies compliance and process monitoring.
Safety is paramount, with a Class 3.3 independent temperature safety device (DIN 12880) and visual/acoustic alarms to protect valuable samples.
Key Features:
-
Temperature range: 0 °C to +70 °C
-
Advanced inverter compressor cooling
-
Up to 40% energy savings vs. previous models
-
APT.line™ preheating chamber technology for uniform heat distribution
-
R-600a climate-neutral refrigerant
-
Heated door to prevent condensation
-
470-liter stainless steel chamber for high-throughput workflows
-
Heavy-duty twin casters with front brakes for mobility
-
Metal oxide-coated inner glass doors
-
Class 3.3 independent temperature safety device (DIN 12880)
-
USB and Ethernet connectivity for data logging and remote access
-
Internal data logger with open-format file export
With its combination of capacity, efficiency, and precision, the Binder KB 470 cooling incubator is the ideal choice for laboratories looking to scale their operations while maintaining environmental responsibility and reliable performance.
Specifications
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | KB470-230V |
| Article Number | 9020-0474 |
| Performance Data Temperature | |
| Temperature range | 0…70 °C |
| Temperature uniformity at 37°C | 0.2 ± K |
| Temperature fluctuation at 37°C | 0.1 ± K |
| Max. heat compensation at 37°C | 530 W |
| Recovery time after door was opened for 30 s at 37°C | 3 min |
| Measures | |
| Interior volume | 472 L |
| Net weight of the unit (empty) | 212 kg |
| Load per rack | 40 kg |
| Permitted load | 90 kg |
| Doors | |
| Unit doors | 1 |
| Inner doors | 1 |
| Internal Dimensions | |
| Interior width | 656 mm |
| Interior height | 1,250 mm |
| Interior depth | 575 mm |
| Wall clearance | |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 180 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 930 mm |
| Height net | 1,951 mm |
| Depth net | 900 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 220…240 V |
| Power frequency | 50/60 Hz |
| Nominal power | 1,3 kW |
| Nominal current | 5,4 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Sound-pressure level at 25°C | 51 dB(A) |
| Energy consumption at 37°C | 140 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 2/16 |
- LED light bars: LED light bars in three different lengths (30, 50, 90 cm) can be easily and variably positioned in the BINDER unit, including various attachment options and control unit. Additional light bars can be added as desired.
- Access port with silicone plug: For introducing external measuring instruments. Large selection of different diameters
and positions (left, right, or top) - Interior lighting: The climate-resistant LED light switches on automatically when the door is opened.
- Services: You can access our installation, maintenance, calibration, validation, or warranty services by taking out a Maintenance Service Agreement or by simply getting in touch when you need us. More information is available in the accessories and services chapter.
