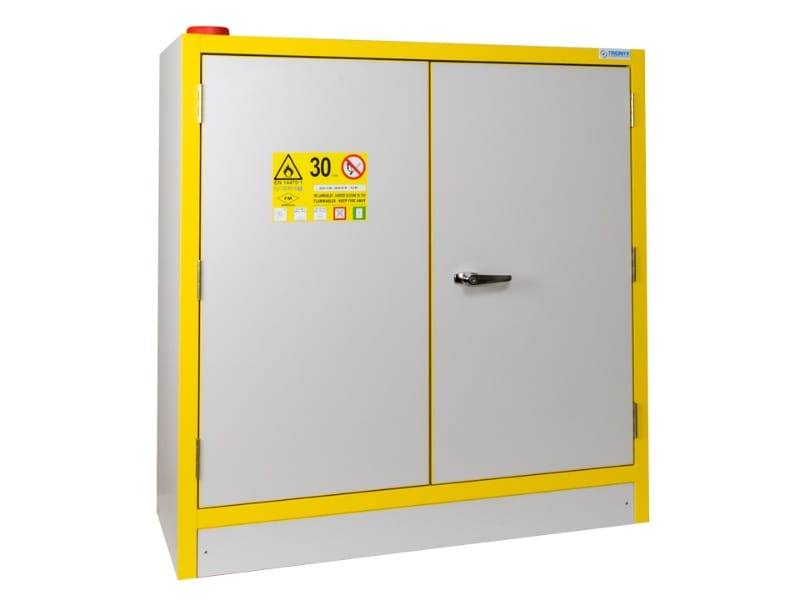

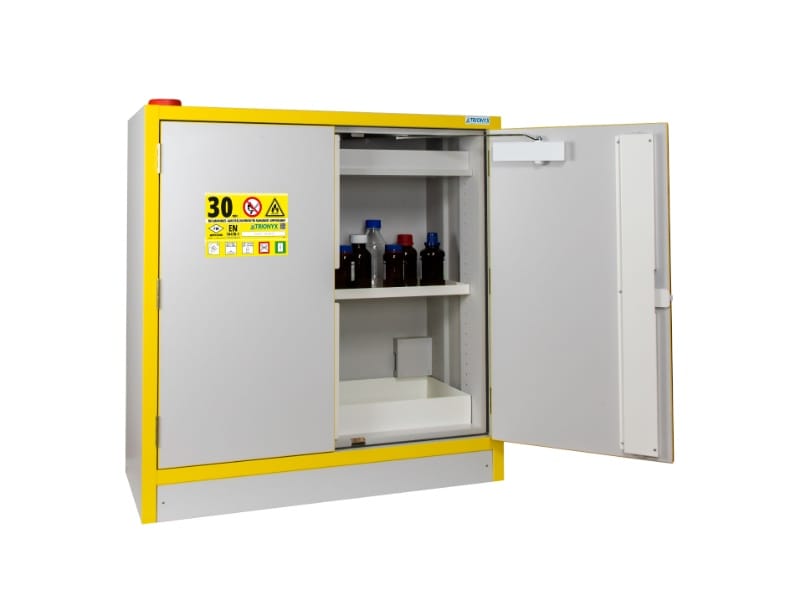

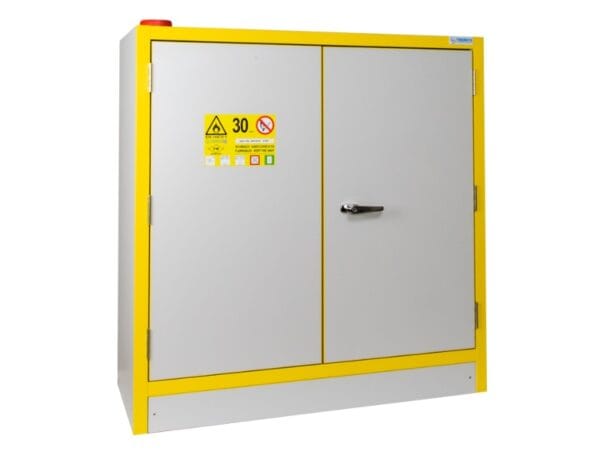

Trionyx 3033UE Type 30 Tall Flammable Safety Cabinet – EN 14470-1
€2.477,00 excl. VAT
The Trionyx 3033UE is a compact tall Type 30 flammable safety cabinet designed for laboratories and industrial sites that require certified solvent storage with minimal floor space.
Compliant with EN 14470-1 and FM 6050, the cabinet provides 30-minute fire resistance combined with self-closing doors and integrated spill containment.
Rear ventilation ports allow connection to extraction or filtration systems, making the 3033UE ideal for daily handling of flammable liquids in regulated environments.
Trionyx 3033UE Type 30 Tall Flammable Safety Cabinet
The Trionyx 3033UE is an EN 14470-1 certified tall safety cabinet developed for the compliant storage of flammable liquids in laboratories, pharmaceutical facilities and production environments.
Its 30-minute fire-resistant construction protects solvent containers while keeping them readily accessible at the point of use. The cabinet is equipped with self-closing swing doors, thermo-expanding seals and a liquid retention sump to limit spill risks during everyday operation.
Rear ventilation connections enable ducting to an external exhaust or filtration system, while the robust French-manufactured construction and FM 6050 testing ensure long-term safety performance in demanding installations.
Technical Specifications – Trionyx 3033EU
| Specification | Value |
|---|---|
| Cabinet type | Tall flammable safety cabinet |
| Fire rating | Type 30 – 30 minutes |
| Certifications | EN 14470-1, FM 6050 |
| External dimensions (HxWxD) | 1198 × 1092 × 537 mm |
| Internal dimensions (HxWxD) | 795 × 980 × 325 mm |
| Storage capacity | 113 L |
| Number of doors | 2 |
| Door type | Self-closing swing doors |
| Standard shelves | 1 |
| Containment sump | 1 |
| Ventilation connections | Rear inlet and outlet |
| Opening diameter | 100 mm |
| Cabinet material | Melamine wood structure |
| Colour | Light grey RAL 7035 |
| Weight | 170 kg |
| Load capacity | 50 kg |
| HS code | 94036000 |
Available Options for Trionyx 3033UE
• Additional containment sump (Ref. B35U)
• Retention shelf (Ref. E35U)
• Ventilation box for ducted connection (CDV-A)
• Connecting kit (KRC)
