Ohaus e-E51LD0403 Light Duty Orbital Shaker

Original price was: €1.160,00.Current price is: €928,00. excl. VAT

  • Motion: orbital
  • Shaking platform: 300 x 222 mm
  • Max load: 4 kg at 400 rpm linearly down to1 kg at 800 rpm
  • Shaking speed: 100 to 800 rpm
  • Stroke: 3 mm

Ohaus e-E51LD0403 Endeavor 5000 Orbital Shaker – Compact Precision for Everyday Laboratory Mixing

The Ohaus e-E51LD0403 Endeavor 5000 orbital shaker is engineered for laboratories requiring reliable and precise shaking for low to mid-volume applications. With a 3 mm orbital motion and a speed range of 100 to 800 rpm, it ensures optimal performance for various applications including microbiology, molecular biology, and chemistry. The digital control system provides accurate speed settings with an accuracy of ±2 rpm above 100 rpm, ensuring consistent results. The shaker features a durable, chemical-resistant polymer housing and a sturdy aluminum tray with multiple attachment points for accessories, making it both robust and easy to clean. Its compact design saves valuable bench space, and the maintenance-free brushless DC motor coupled with a triple eccentric drive system ensures stable and long-term operation. Safety features include integrated overload and unbalanced detection systems to protect valuable samples. The bright, backlit LCD display allows for easy monitoring of speed and time settings, and the timer can be set from 1 minute to 99 hours, 59 minutes. Additionally, the shaker is compatible with use in incubators and cold rooms, highlighting its adaptability to different experimental conditions.

Warranty: 2 years

Lead time: 1-2 weeks

Motion Orbital, 3 mm
Capacity 4.0 kg, up to 3 x 1 L flasks
Speed Range 100 rpm – 800 rpm
Tray Size 11.75 in x 8.75 in (300 mm x 222 mm) (LxW)
Timer 1 minute – 99 hours, 59 minutes
Control Digital
Speed Accuracy ±2 rpm, Above 100 rpm ±2% of set speed
Drive System Triple Eccentric;  Brushless DC Motor
Tray Construction Aluminum
Dimensions 16.5 in x 4.7 in x 10.3 in (420 mm x 119 mm x 262 mm) (LxHxW)
Orbit 0.1 in (3 mm)
Display Custom Back-lit LCD
Working Environment -10°C – 40°C, 80%RH, non-condensing (14°F – 104°F, 80%RH, non-condensing)
Speed Range 100 rpm – 800 rpm
Net Weight 16.5 lb (7.5 kg)
Safety Certification TUV
Power 24V DC, 1.25A
Communication RS232
Width (Shipping) 40 cm
Height (Shipping) 32 cm
Length (Shipping) 56 cm
Gross Weight (Shipping) 9.9 kg
Item Number Description On Standard Tray(e-E51LD0403 & e-E51LD0420)

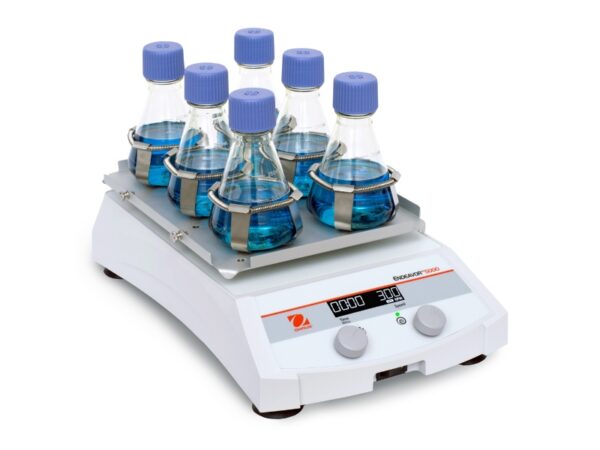

30400084 Flask Clamp, 10 mL 7
30400085 Flask Clamp, 25 mL 7
30400086 Flask Clamp, 50 mL 7
30400087 Flask Clamp, 125 mL 6
30400088 Flask Clamp, 250 mL 6
30400089 Flask Clamp, 500 mL 4
30400090 Flask Clamp, 1L
30400097 500 mL Media Bottle Clamp 4
30400099 Flask Clamp PVC 125 mL 6
30400100 Flask Clamp PVC 250 mL 6
30400101 Flask Clamp PVC 500 mL

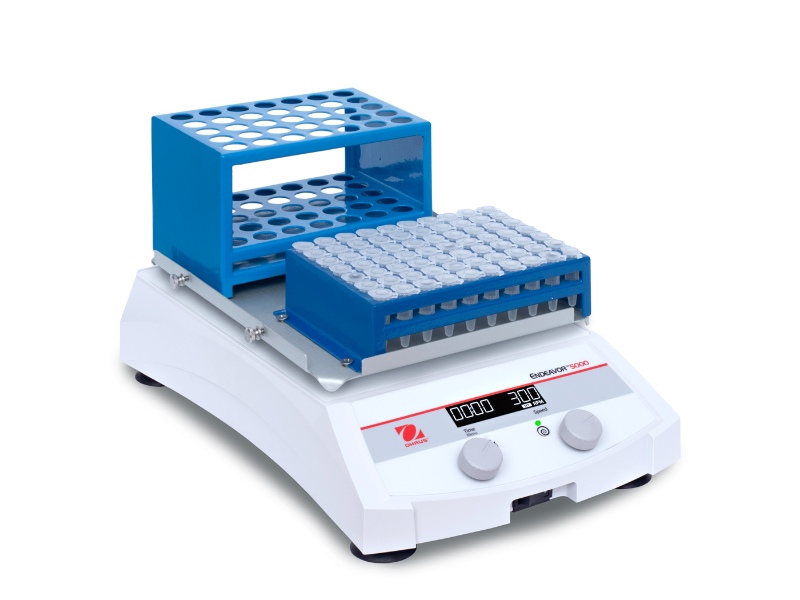

30400115 Test Tube Rack 10–13 mm Diameter 2
30400116 Test Tube Rack 14–16 mm Diameter 2
30400117 Test Tube Rack 18–20 mm Diameter 2
30400118 Test Tube Rack 22–25 mm Diameter 2
30400119 Test Tube Rack For 15 mL Tubes 2
30400120 Test Tube Rack For 50 mL Tubes 2
30770938 Universal Platform 8.75 x 11.75 in / 22 x 30 cm 1
30400121 Adjustable Platform 8.75 x 11.75 in / 22 x 30 cm, 2 bars 1
30400122 Roller Bar, 8.6 in / 22 cm (for Adjustable Platform only) Variable
30400124 Dimpled Mat, 8.75 x 11.75 in / 22 x 30 cm 1
30770936 Rubber Mat 11.4 x 8.75 in / 29 x 22 cm 1

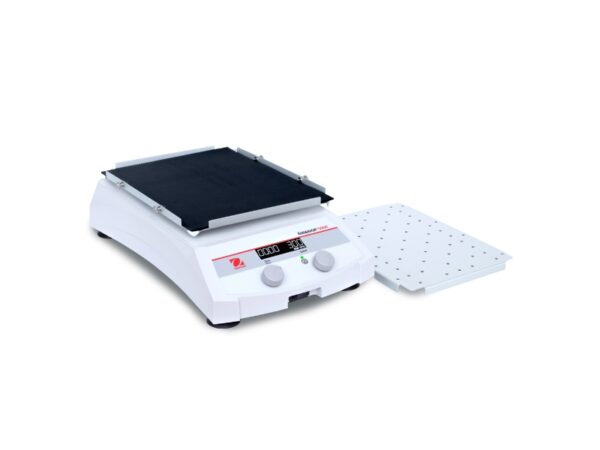

30770937 Sticky Mat 8.75 x 7.0 in / 22 x 18 cm 1
30770940 Universal Harness e-E51LD 1
30400114 Micro Tube Rack 2
30770971 Deep Plate Kit, set of 4

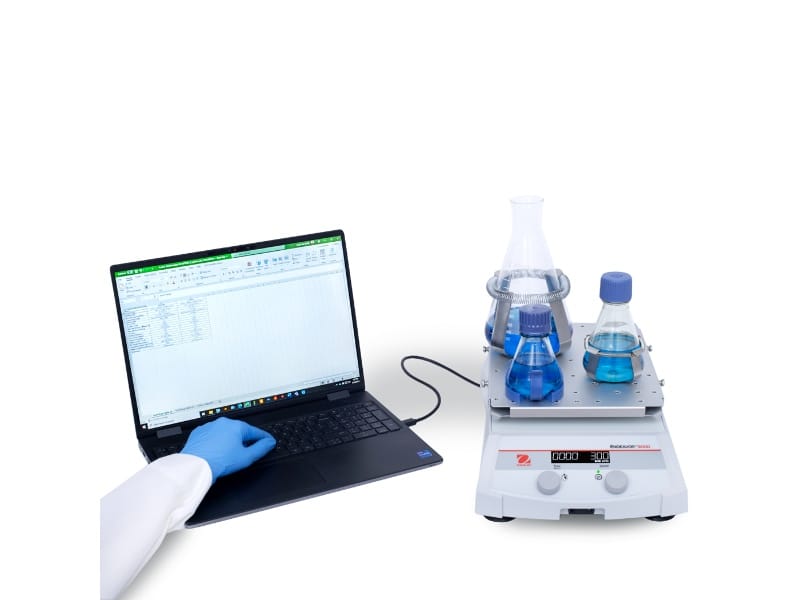

30304101 Interface Kit, RS232-USB Yes, for shaker’s data logging and remote control
30304102 Interface Kit, RS232-Ethernet Yes, for shaker’s data logging and remote control
