Jeiotech VDC-31 Square Vacuum Desiccator
€1.238,00 excl. VAT
- Type: Square vacuum desiccator with gauge
- Vacuum level: Up to 1 Torr for 72 hours
- Internal volume: 45 L
- Body material: Clear PMMA
- Highlights: Analog gauge, safety locker

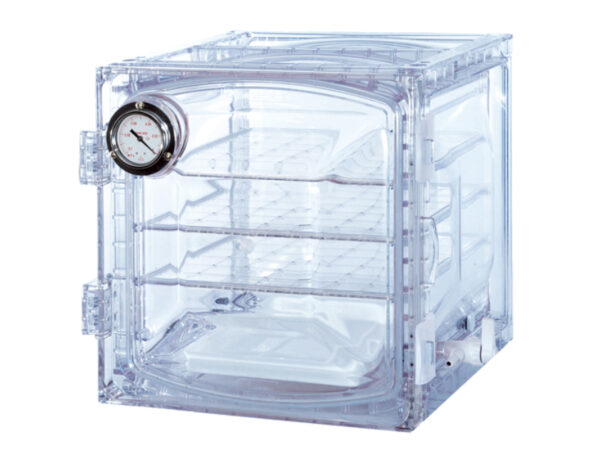

Jeiotech VDC-31 Square Vacuum Desiccator – Mid-Size Vacuum Storage for Reliable Protection of Laboratory Samples
The Jeiotech VDC-31 square vacuum desiccator offers reliable mid-sized vacuum storage for laboratories looking to protect sensitive materials from moisture, dust, and environmental contaminants. Ideal for preserving hygroscopic chemicals, electronics, pharmaceuticals, and other moisture-sensitive samples, the VDC-31 ensures a stable, controlled environment.
Made from clear, durable PMMA (polymethyl methacrylate), the VDC-31 delivers high impact resistance and excellent transparency, allowing users to visually inspect stored items without disturbing the vacuum seal. The seamless molded construction minimizes leakage and supports a maximum vacuum of 1.33 × 10⁻⁴ MPa (1 Torr), maintained for up to 72 hours for dependable long-term storage. The integrated analog vacuum gauge allows real-time monitoring of internal vacuum conditions for added safety and process control.
With an internal volume of 35 L, the VDC-31 offers ample capacity for various sample sizes while maintaining a space-efficient square footprint. The unit features a secure safety locker to prevent accidental lid opening under atmospheric pressure and is compatible with perforated shelves for organized internal storage.
For laboratories that require reliable vacuum protection in a practical medium-capacity unit, the Jeiotech VDC-31 provides durability, visibility, and peace of mind.
Key Features Summary:
-
Square vacuum desiccator for laboratory storage
-
Maintains vacuum up to 1.33 × 10⁻⁴ MPa (1 Torr) for 72 hours
-
High-durability PMMA construction
-
Analog vacuum gauge for easy monitoring
-
35 L internal capacity
-
Safety locker prevents accidental opening
-
Clear visibility for easy sample inspection
Warranty: 2 years
Lead time: if on stock: 2 weeks. If not on stock 10 weeks
| Specification | Details |
|---|---|
| Model | VDC-31 |
| Type | Square vacuum desiccator with gauge |
| Internal Volume | 35 L (1.2 cu. ft.) |
| Max. Permissible Vacuum | 1.33 × 10⁻⁴ MPa (1 Torr) |
| Vacuum Holding Time | Up to 72 hours |
| Vacuum Gauge Range (Analog) | 0 to -0.1 MPa |
| Body Material | PMMA (Polymethyl methacrylate) |
| Internal Dimensions (W × D × H) | 355 × 375 × 445 mm (14.0 × 14.8 × 17.5 in.) |
| External Dimensions (W × D × H) | 420 × 397 × 491 mm (16.5 × 15.6 × 19.3 in.) |
| Perforated Shelf Dimensions | 289 × 340 mm (11.4 × 13.4 in.) |
| Desiccant Tray Dimensions | 218 × 268 × 26 mm |
| Nozzle Diameter | 9.5 mm (0.37 in.) |
| Max. Load per Shelf | 15 kg (33.1 lbs) |
| Quantity of Shelves (Standard/Max) | 3 / 6 |
| Net Weight | 6.8 kg (15.0 lbs) |
| Safety Locker | Yes |
| RoHS Compliant | Yes |
| Warranty | 2 years |
Optional Accessories & Configurations
-
Perforated Shelves – flexible internal layout
-
3-way Valve – simplifies vacuum formation and venting
-
Vacuum Seal Replacement Kit – ensures long-term vacuum integrity
-
Silica Gel Desiccant – moisture absorption for optimal dryness
