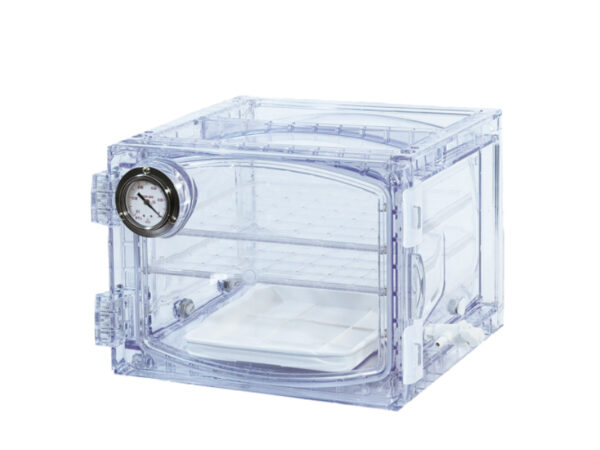

Jeiotech VDC-21 Square Vacuum Desiccator
€1.003,00 excl. VAT
- Type: Square vacuum desiccator with gauge
- Vacuum level: Up to 1 Torr for 72 hours
- Internal volume: 23 L
- Body material: Clear PMMA
- Highlights: Analog gauge, safety locker
Jeiotech VDC-21 Square Vacuum Desiccator – Compact Mid-Volume Vacuum Storage for Laboratory Protection
The Jeiotech VDC-21 square vacuum desiccator provides reliable mid-volume vacuum storage for laboratories requiring safe, moisture-free conditions for sensitive materials. Ideal for preserving hygroscopic substances, pharmaceuticals, electronics, and other samples vulnerable to moisture and environmental contaminants, it ensures consistent protection under vacuum conditions.
Manufactured from durable PMMA (polymethyl methacrylate), the VDC-21 combines impact resistance with excellent transparency, allowing visual inspection of contents without disturbing the vacuum seal. The seamless molded construction minimizes vacuum leaks and supports a maximum vacuum of 1.33 × 10⁻⁴ MPa (1 Torr), held for up to 72 hours for long-term storage reliability. An integrated analog vacuum gauge provides real-time monitoring of internal vacuum conditions for added safety and process control.
With an internal volume of 21 L, the VDC-21 is perfectly suited for compact storage needs while maintaining a space-efficient square footprint. It includes a robust safety locker to prevent accidental lid opening under atmospheric pressure and is compatible with perforated shelves for organized internal storage configurations.
For laboratories needing compact yet reliable vacuum storage, the Jeiotech VDC-21 offers an excellent combination of durability, visibility, and secure sample protection.
Key Features Summary:
-
Square vacuum desiccator for mid-volume lab storage
-
Maintains vacuum up to 1.33 × 10⁻⁴ MPa (1 Torr) for 72 hours
-
Transparent, durable PMMA construction
-
Analog vacuum gauge for monitoring
-
21 L internal capacity
-
Safety locker prevents accidental opening
-
Clear visibility for easy sample checks
Warranty: 2 years
Lead time: if on stock: 2 weeks. If not on stock 10 weeks
| Specification | Details |
|---|---|
| Model | VDC-21 |
| Type | Square vacuum desiccator with gauge |
| Internal Volume | 23 L (0.8 cu. ft.) |
| Max. Permissible Vacuum | 1.33 × 10⁻⁴ MPa (1 Torr) |
| Vacuum Holding Time | Up to 72 hours |
| Vacuum Gauge Range (Analog) | 0 to -0.1 MPa |
| Body Material | PMMA (Polymethyl methacrylate) |
| Internal Dimensions (W × D × H) | 266 × 346 × 245 mm (10.5 × 13.6 × 9.6 in.) |
| External Dimensions (W × D × H) | 367 × 397 × 281 mm (14.4 × 15.6 × 11.1 in.) |
| Perforated Shelf Dimensions | 218 × 268 mm (8.6 × 10.6 in.) |
| Desiccant Tray Dimensions | 218 × 268 × 26 mm |
| Nozzle Diameter | 9.5 mm (0.37 in.) |
| Max. Load per Shelf | 10 kg (22.0 lbs) |
| Quantity of Shelves (Standard/Max) | 2 / 4 |
| Net Weight | 5.3 kg (11.7 lbs) |
| Safety Locker | Yes |
| RoHS Compliant | Yes |
| Warranty | 2 years |
Optional Accessories & Configurations
-
Perforated Shelves – flexible internal layout
-
3-way Valve – simplifies vacuum formation and venting
-
Vacuum Seal Replacement Kit – ensures long-term vacuum integrity
-
Silica Gel Desiccant – moisture absorption for optimal dryness
