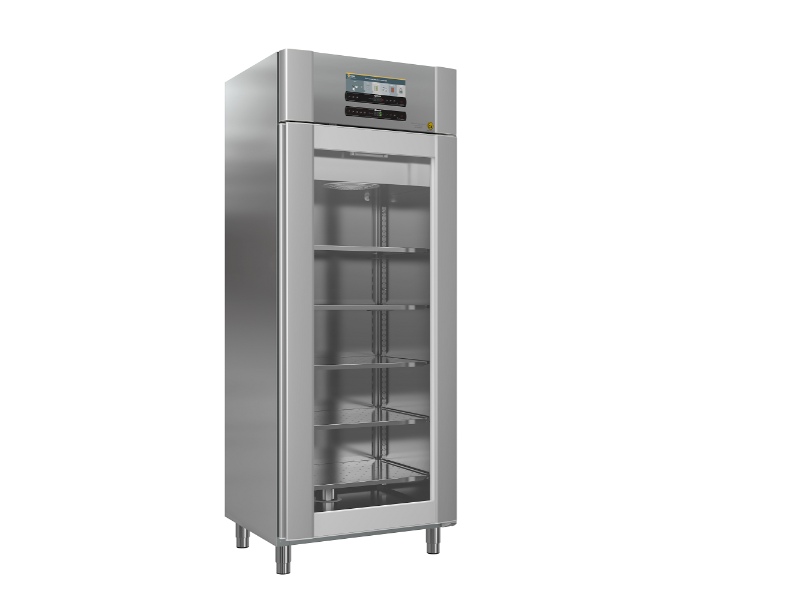

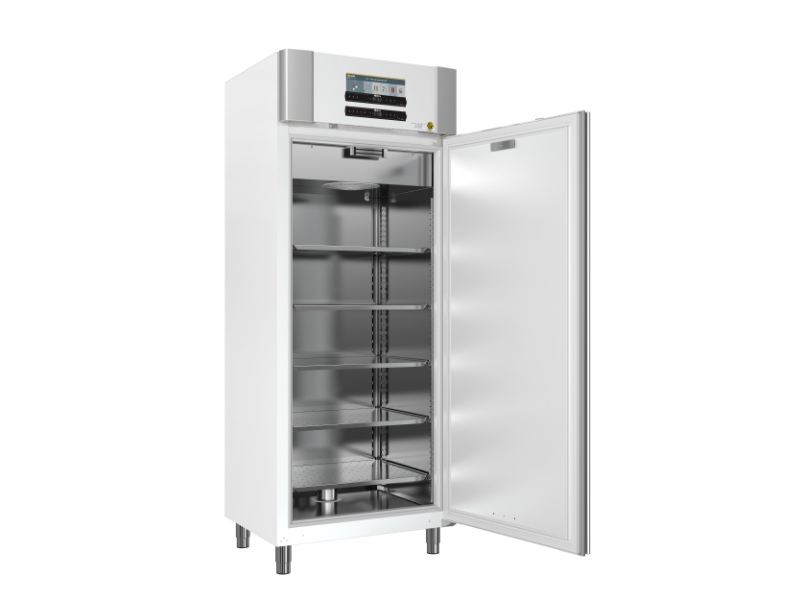

Gram ExGuard ER600 Ducted Laboratory Fridge
€8.070,00 excl. VAT
The Gram Bioline ExGuard ER600 is engineered for applications like petrochemical and chemical processing environments requiring safe cold storage of volatile toxic or flammable substances. Its ducted design flushes internal vapors before door access, reducing the risk of ignition and self-poisoning. With 614 L of gross capacity and precise temperature control between -2 °C and +20 °C, this unit combines industrial-grade cooling with rigorous ATEX Zone 2 compliance. Ideal for R&D labs, pilot plants, or quality control areas where explosion safety and ventilation integration are a must.
ATEX-Certified Ducted Cold Storage for Petrochemical and Chemical Industry Labs

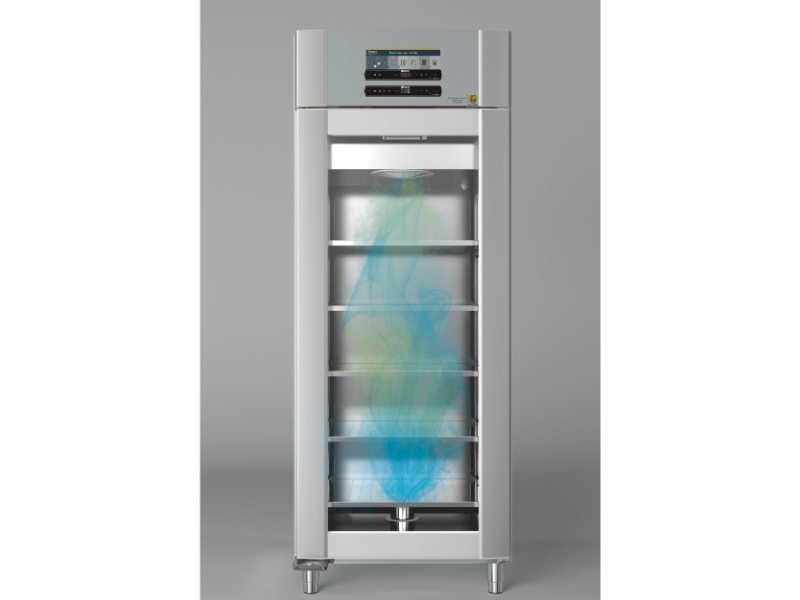

The ExGuard ER600 from Gram Bioline is a ducted laboratory refrigerator specifically designed for petrochemical and industrial chemical environments where cold storage of flammable or toxic chemicals is required. Its integrated ventilation port allows connection to an external extraction system, ensuring that vapors are safely removed before the door is opened. The refrigerator is fully ATEX Zone 2 compliant—internally and externally—making it a safe solution for storing hazardous substances in explosion-risk zones. With robust stainless steel construction, advanced air distribution, and low energy consumption, the ER600 supports both safety and operational efficiency in demanding applications.
Warranty: 1 year
Lead time: 2 weeks
Specifications Gram Bioline ExGuard ER600 Ducted Fridge
| Temperature range | -2 °C/+20 °C |
| Ambient temperature range | Solid door +10 °C/+30 °C, Glass door +10 °C/+38 °C |
| Control unit | Dedicated ExGuard extraction controller and software inhibiting access to the storage chamber unless safe extraction of cabinet interior has occurred. Timing of steps in the access procedure can be adjusted to suit your specifications. Separate controller managing normal operation as with the BioPlus range. |
| Alarms | Acoustic and visual, High/Low temperature alarms |
| Access port | 1 pcs. Ø 24.5 mm |
| Material interior | Stainless steel |
| Material exterior | White lacquered steel or stainless steel |
| Dimensions (WxDxH) | 820 x 789 x 1996/2246 (min./max. height)* |
| Net weight | Unpackaged net weight without optional fittings: 166 kg |
| Gross volume | 614 litres |
| Net volume | 486 litres |
| Modules for shelves and drawers | 47 shelves or 9 drawers |
| Insulation | 70 mm polyurethane with HFC-free cyclopentane propellant |
| K-Value | Solid door 0.26 W/m2K; glass door 0.45 W/m2K |
| Refrigerant | R290 |
| Refrigerant charge | 90 g |
| CO2e | – |
| Energy consumption (kWh/24h) (R290) | Solid door: 1.62 kWh/24h / Glass door 2.08 kWh/24h |
| Heat emission (Watt) (R290) | 236,8** |
| Base | Legs, Castors |
| Connection | 230 V, 50 Hz, 16 Amp |
| Connection load (Watt) (R290) | 316 |
| Start current (R290) | 9,7 A |
| Sound level | 46.3 dB(A) |
| Air system | BioLine ventilated air distribution system |
| Defrost system | Automatic smart defrost with re-evaporation of defrost water |
Options Gram Bioline ExGuard ER600 Ducted Fridge
- Aluminium drawers
- ABS drawers
- Perforated stainless steel shelf
- Stainless steel – wire shelf
- plastic white coated wire shelf
- Wire basket
- Glass door
- Refference container
- Legs, castors or plinths
- Wall mounting
- Low temperature protection
- IQ OQ
- PQ
