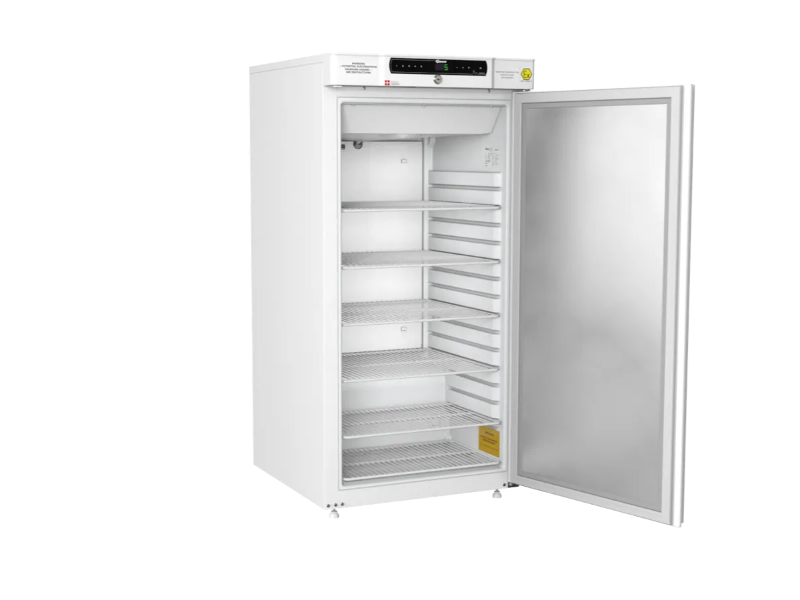

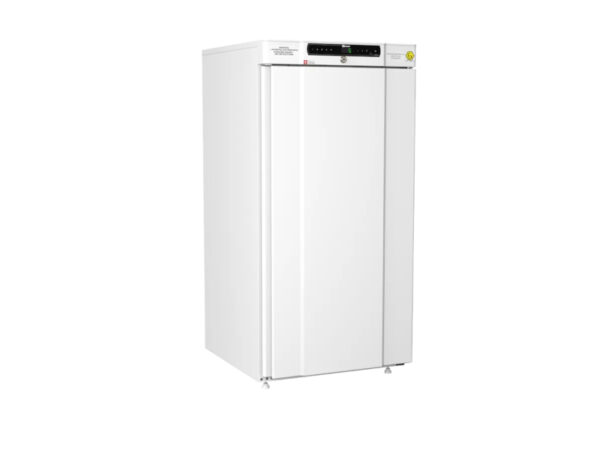

Gram BioCompact II RF310 Laboratory Freezer
Gram BioCompact II RF310 Laboratory Freezer
Pricing on request
The Gram BioCompact II RF310 is a robust laboratory freezer with a 189 L net capacity, ensuring reliable low-temperature storage from –25 °C to –5 °C. Built with the trusted Gram BioLine air distribution system, it provides uniform internal conditions, while its compact design makes it perfect for labs with limited space. Consuming only 1.56 kWh/24h and certified to ATEX Cat. 3 Zone 2 standards, this model is both energy-efficient and safe for demanding laboratory environments.
Compact Laboratory Freezer for Reliable Cold Storage – BioCompact II RF310
The Gram BioCompact II RF310 is designed for laboratories that need consistent, low-temperature storage in a small footprint. With a net capacity of 189 L and a temperature range from –25 °C to –5 °C, it’s perfect for storing biological samples, reagents, and other sensitive materials.
Equipped with Gram’s advanced BioLine air distribution system, the RF310 delivers uniform internal temperatures while avoiding damaging cold walls. It is highly energy-efficient at just 1.56 kWh/24h, meets ATEX Cat. 3 Zone 2 requirements, and operates quietly at 37.8 dB(A). Combined with flexible shelving and optional accessories, this lab freezer provides both performance and adaptability.
Warranty: 1 year
Lead time: 2 weeks
Specifications Gram BioCompact II RF310 Freezer
| Temperature range | -25 °C/-5 °C |
| Ambient temperature range | +10 °C/+35 °C |
| Control unit | Gram Control Unit with voltage free contact, alarms and offset function |
| Alarms | Acoustic and visual, High/Low temperature alarms and door alarm |
| Access port | 1 pcs. Ø 24.5 mm |
| Material interior | PS lining |
| Material exterior | White lacquered steel or stainless steel |
| Dimensions (WxDxH) | 595 x 640 x 1190/1390* |
| Net weight | Unpackaged net weight without optional fittings: 55 kg |
| Gross volume | 218 litres |
| Net volume | 189 litres |
| Modules for shelves and drawers | 14 shelves, 7 drawers, 4 wire baskets |
| Insulation | 50 mm polyurethane with HFC-free cyclopentane propellant |
| K-Value | Solid door 0.35 W/m²K |
| Refrigerant | R600a |
| Refrigerant charge | 35 g |
| Refrigeration capacity at -25°C | R600a 204 watt |
| CO2e | – |
| Energy consumption (kWh/24h) (R600a) | 1.56 |
| Heat emission (Watt) (R600a) | 138** |
| Connection | 230 V, 50 Hz |
| Connection load (Watt) (R600a) | 143 |
| Start current (R600a) | 8 A |
| Sound level | 37,8 dB(A) |
| Air system | BioLine ventilated air distribution system |
| Defrost system | Automatic smart defrost with re-evaporation of defrost water |
Options Gram BioCompact II RF310 Lab Freezer
- Aluminium drawers
- ABS drawers
- Perforated stainless steel shelf
- Stainless steel – wire shelf
- plastic white coated wire shelf
- Wire basket
- Refference container
- Legs, castors or plinths
- Wall mounting
- Chart recorder
- Low temperature protection
- Stainless steel exterior
- On-site qualification
- IQ OQ
- PQ
