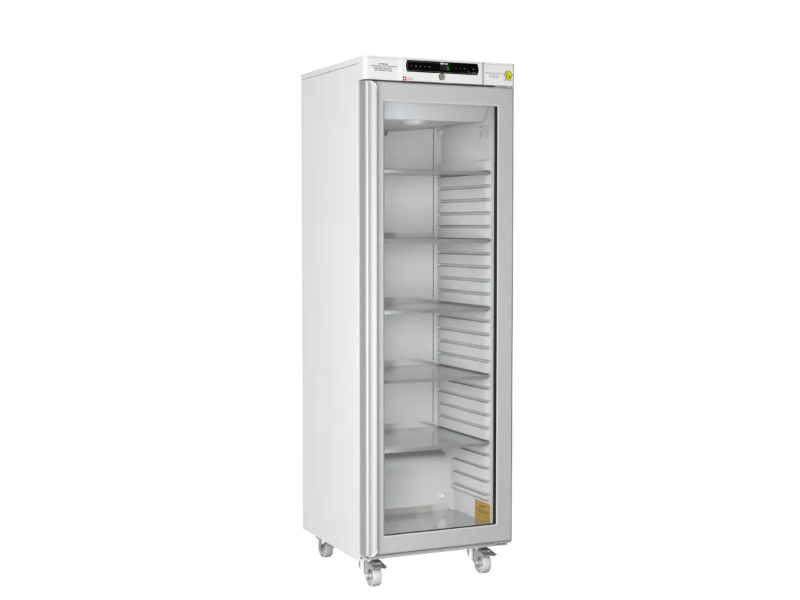

Gram BioCompact II RR410 Laboratory Fridge
€2.490,00 excl. VAT
The Gram BioCompact II RR410 offers 312 L of stable, reliable cold storage with a wide temperature range of +2 to +20 °C. Thanks to the innovative Gram BioLine air distribution system and finned tube evaporator, cold walls are eliminated—preserving the integrity of sensitive biomaterials. The RR410 stands out for its energy efficiency, consuming only 0.59 kWh/day, and is ATEX Cat. 3 Zone 2 compliant for enhanced safety in demanding laboratory environments.
Reliable Biostorage with Precision Cooling – Gram BioCompact II RR410
The Gram BioCompact II RR410 is a space-efficient laboratory refrigerator designed for critical biostorage tasks. With a net volume of 312 L and an operating range of +2 to +20 °C, it ensures optimal preservation conditions for temperature-sensitive materials. Its unique Gram BioLine air distribution system eliminates cold walls, preventing sample freezing and maintaining internal uniformity.
The RR410 is a standout performer in its class, using just 0.59 kWh/day while meeting ATEX Cat. 3 Zone 2 requirements—ensuring compliance and safety in explosive-risk zones. With a range of interior configurations, a quiet operation at 33 dB(A), and environmentally friendly R600a refrigerant, this model is a reliable and sustainable solution for laboratories that demand precision, safety, and energy performance.
Warranty: 1 year
Lead time: 2 weeks
Specifications Gram Bioline BioCompact II RR410 Fridge
| Temperature range | +2 °C/+20 °C |
| Ambient temperature range | Solid door +10 °C/+35 °C; glass door +10 °C/+32 °C |
| Control unit | Gram Control Unit with voltage free contact, alarms, and offset function |
| Alarms | Acoustic and visual, High/Low temperature alarms and door alarm |
| Access port | 1 pcs. Ø 24.5 mm |
| Material interior | PS lining |
| Material exterior | White lacquered steel or stainless steel finish |
| Dimensions (WxDxH) | 595 x 640 x 1776/1976* |
| Net weight | Unpackaged net weight without optional fittings: 78 kg |
| Gross volume | 346 litres |
| Net volume | 312 litres |
| Modules for shelves and drawers | 25 shelves, 13 drawers and 8 wire baskets |
| Insulation | 50 mm polyurethane with HFC-free cyclopentane propellant |
| K-Value | Solid door 0.35 W/m²K; glass door 0.53 W/m²K |
| Refrigerant | R600a |
| Refrigerant charge | Solid door 60 g; Glass door 51 g |
| Refrigeration capacity at -10°C | R600a 207 watt |
| CO2e | – |
| Energy consumption (kWh/24h) (R600a) | Solid door: 0.59 / Glass door: 1.31 |
| Heat emission (Watt) (R600a) | Solid door: 106 / Glass door: 159** |
| Connection | 230 V, 50 Hz |
| Connection load (Watt) (R600a) | Solid door: 122 / Glass door: 156 |
| Start current (R600a) | Solid door: 3,16 A / Glass door: 17,2 A |
| Sound level | Solid door 33,2 dB(A); Glass door 33,7 dB(A) |
| Air system | BioLine ventilated air distribution system |
| Defrost system | Automatic smart defrost with re-evaporation of defrost water |
Options Gram Bioline BioCompact II RR410 Fridge
- Aluminium drawers
- ABS drawers
- Perforated stainless steel shelf
- Stainless steel – wire shelf
- plastic white coated wire shelf
- Wire basket
- Glass door
- Reference container
- Legs, castors or plinths
- Wall mounting
- Chart recorder
- DIN-kit 13277
- Low temperature protection
- Stainless steel exterior
- On-site qualification
- IQ OQ
- PQ
