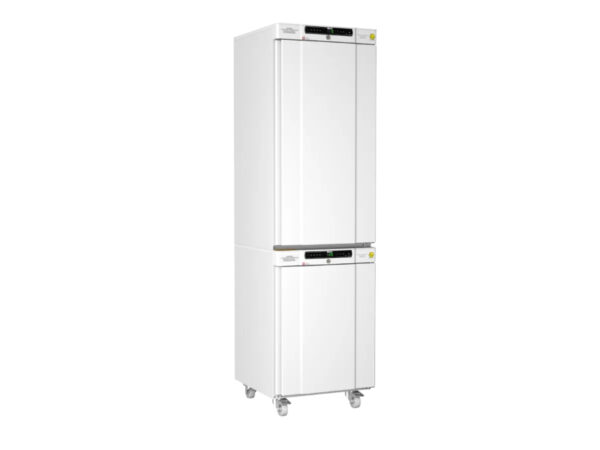

Gram BioCompact II RR310/RF210 Combo Lab Fridge & Freezer
€4.750,00 excl. VAT
The Gram BioCompact II RR310/RF210 combination is an ideal lab-grade fridge-freezer solution. This dual-unit setup offers reliable storage at +2 to +20 °C in the upper 218 L refrigerator and –25 to –5 °C in the 125 L freezer compartment below. The advanced BioLine air distribution ensures uniform, stable temperatures without damaging cold walls. Energy-efficient performance, intuitive alarms, and ATEX Cat. 3 Zone 2 compliance make it perfect for bioscience labs, pharmaceutical storage, and clinical applications.
Reliable Combination Lab Fridge-Freezer for Stable Biostorage

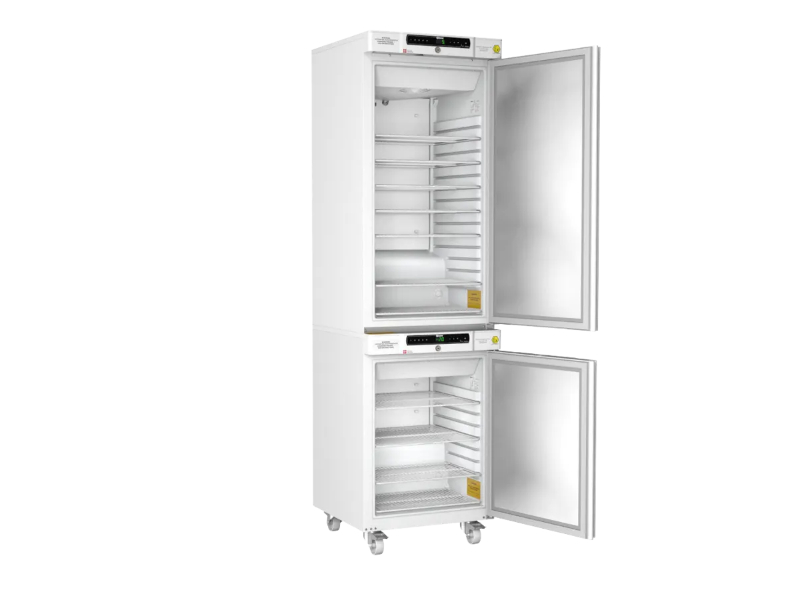

The Gram BioCompact II RR310/RF210 is a compact refrigerator-freezer designed for professional biostorage. The fridge offers a +2 to +20 °C range for sensitive samples, while the freezer operates from –25 to –5 °C. A finned tube evaporator eliminates cold walls and ensures homogenous internal temperatures across both compartments. Equipped with the Gram BioLine control system, E-sensor, and ATEX Cat. 3 Zone 2 compliance, this combination unit delivers safe and consistent storage with minimal energy use. Its modular interior adapts to your lab’s needs, making it a flexible, future-proof choice for biological, pharmaceutical, and clinical environments.
Warranty: 1 year
Lead time: 2 weeks
Specifications Gram BioCompact II RR310/RF210 Combo Lab Fridge & Freezer
| Temperature range | RR310 +2/+20 °C and RF210 -25/-5 °C |
| Ambient temperature range | RR310/RF210 Solid door +10 °C/+35 °C; RR310 glass door +10 °C/+32 °C |
| Control unit | Gram Control Unit with voltage free contact, alarms and offset function |
| Alarms | Acoustic and visual, High/Low temperature alarms and door alarm |
| Access port | 2 pcs. Ø 24.5 mm |
| Material interior | PS lining |
| Material exterior | White lacquered steel or stainless steel |
| Dimensions mm (W x D x H) | 595 x 640 x 1991/2191* |
| Net weight | Unpackaged net weight without optional fittings: 101 kg |
| Gross volume | RR310: 218 litres and RF 210: 125 litres |
| Net volume | RR310: 189 litres and RF210: 104 litres |
| Modules for shelves and drawers | 4 x 430 mm + 3 x 300 mm and 4 x 430 mm + 3 x 300 mm |
| Insulation | 50 mm polyurethane with HFC-free cyclopentane propellant |
| K-Value | RR310: Solid door 0.35 W/m²K; glass door 0.50 W/m²K, RF210: Solid door 0.35 W/m²K |
| Refrigerant | R600a |
| Refrigerant charge | RR310: 45 g and RF210: 43 g |
| RR: Refrigeration capacity at -10°C | R600a 154 watt |
| RF: Refrigeration capacity at -25°C | R600a 159 watt |
| CO2e | – |
| Energy consumption (kWh/24h) (R600a) | RR310: 0.51, RR310 Glass door 0.90 and RF210: 1.47 |
| Heat emission (Watt) (R600a) | RR310: 93**, RR310 Glass door 103**, RF210: 134** |
| Connection | 230 V, 50 Hz |
| Connection load (Watt) (R600a) | RR310: 95, RR310 Glass door: 101, RF210: 132.8 |
| Start current (R600a) | RR310: 7.6 A, RF210: 17.2 A |
| Sound level | 39,3 dB(A) |
| Air system | BioLine ventilated air distribution system |
| Defrost system | Automatic smart defrost with re-evaporation of defrost water |
Specifications Gram BioCompact II RR310/RF210 Combo Lab Fridge & Freezer
- Aluminium drawers
- ABS drawers
- Perforated stainless steel shelf
- Stainless steel – wire shelf
- plastic white coated wire shelf
- Wire basket
- Glass door
- Reference container
- Legs, castors or plinths
- Wall mounting
- Chart recorder
- DIN-kit 13277
- Low temperature protection
