Exacta EOF239BMY23 Type 90 Fire-Resistant Chemical Storage Cabinet
Exacta EOF239BMY23 Type 90 Fire-Resistant Chemical Storage Cabinet
€2.410,00 excl. VAT
The Exacta EOF239BMY23 is a professional Type 90 fire-resistant safety cabinet designed for the compliant storage of flammable solvents in laboratories and industrial environments.
Certified to EN 14470-1 and EN 16121, it provides 90 minutes of fire protection under real fire conditions.
This compact model includes three retention shelves and a bottom spill tray for controlled chemical storage.
Ventilation ports allow connection to external exhaust systems or chemical filtration modules for additional safety.
Exacta EOF239BMY23 – Type 90 Fire-Resistant Chemical Safety Cabinet
The Exacta EOF239BMY23 is engineered for the safe and compliant storage of flammable liquids and hazardous chemicals in laboratories, pharmaceutical facilities and industrial sites.
Certified according to EN 14470-1 Type 90, the cabinet offers 90 minutes of fire resistance, while also complying with EN 16121 and being tested to EN 1363-1 for structural fire performance.
Its robust electro-galvanised steel construction is combined with multi-layer thermal insulation made from mineral wool and fire-resistant panels. Thermo-expanding seals automatically close the compartment in the event of rising temperatures, preventing flames and heat from penetrating the interior.

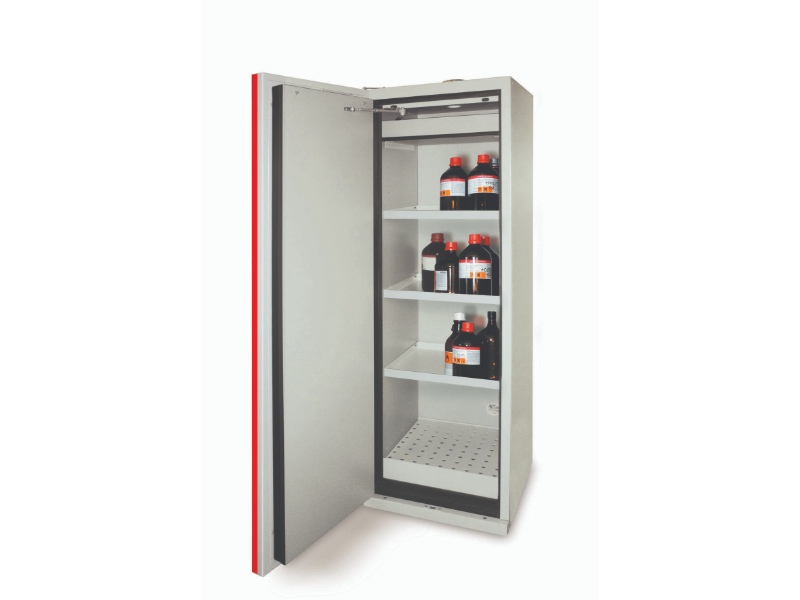

Inside, three adjustable retention shelves and a fully integrated spill tray allow organised and safe storage of solvent containers. Automatic door-closing systems activate when ambient temperatures increase, adding another layer of fire protection.
The rear Ø100 mm ventilation connection enables easy integration with building exhaust systems or molecular filtration units. Additional safety features include key locking, grounding points and levelling feet for compliant installation.
Technical specifications – Exacta EOF239BMY23
| Specification | Value |
|---|---|
| Type | Fire-resistant safety cabinet |
| Model | EOF239BMY23 |
| Fire resistance | Type 90 – 90 minutes |
| Certifications | EN 14470-1, EN 16121, EN 1363-1 |
| External dimensions W×D×H | 595 × 600 × 1950 mm |
| Internal dimensions W×D×H | 496 × 446 × 1540 mm |
| Storage capacity | 100 L (based on 1-L bottles) |
| Number of shelves | 3 retention shelves |
| Shelf load capacity | Max 60 kg evenly distributed |
| Spill tray | Included |
| Ventilation connection | Ø100 mm |
| Locking system | Key lock |
| Insulation | Mineral wool and fire panels |
| Colour | Light grey RAL 7035 |
| Grounding | Yes |
| Levelling feet | Yes |
| Weight | approx. 190 kg |
Available options for Exacta EOF239BMY23
• Additional steel or stainless-steel retention shelves
• Sliding shelf systems
• Automatic internal CO₂ fire-extinguishing unit
• External ventilation modules
• Molecular filtration units to NF X 15-211
• Activated carbon filters for solvents
• Acid-resistant filters
• Combined solvent/acid filters
• Aldehyde filters
• Pre-filters
• Exhaust connection kits
