Binder MKFT 240 dynamic climate chamber
Pricing on request *
Benefits:
- Homogeneous climate conditions thanks to APT.line™ technology
- Automatic water and wastewater management
- Pressure humidification with fast response times
- Comprehensive programming and data acquisition
- Large heated viewing window
Important features:
- Temperature range: -70 °C to +180 °C
- Humidity range: 10 % to 98 % RH
- Integrated water-storage tank, 20 liters
- 4 zero-voltage relay contacts
- APT.line™ preheating chamber technology
- Programmable condensation protection for test material
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Heated viewing window with LED interior lighting
- Humidity regulation with capacitative humidity sensor and vapor humidification
- BINDER Multi Management Software APT-COM™ Basic Edition
- Troubleshooting system with visual and audible alarms
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- Access port with silicone plug (Models 115, 240: 50 mm, left)
- 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
- 4 castors, two with brakes
- Computer interface: Ethernet
- Adjustable ramp function
- Integrated chart recorder
- Real-time clock
- Door heating
- Alarm notification in the event of insufficient water in fresh water tank
- 1 stainless steel rack
- Complete safety connection kit for water supply and drainage, up to 1 m in height
- Inner chamber made of stainless steel
- CFC-free refrigerants R-452A and R-23
- Cooling with cascade compressor cooling unit
Description

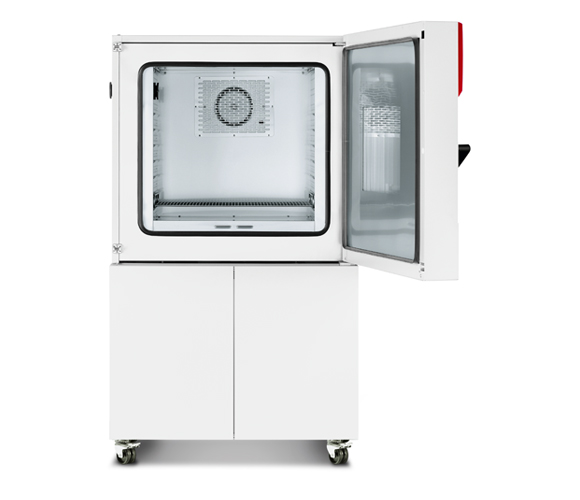

Binder MKFT 240 Climate Chamber – 228 L Dynamic Environmental Chamber with Extended Low-Temperature Capability
The Binder MKFT 240 climate chamber is a powerful 228-liter dynamic environmental chamber designed for precise simulation of extreme temperature and humidity conditions. With a wide temperature range from –70 °C to +180 °C and humidity control from 10 % to 98 % RH, it is ideal for demanding tests in automotive, aerospace, electronics, and materials research.
This unit combines fast temperature change rates with accurate climate control, making it perfect for cyclic testing. APT.line™ preheating technology ensures uniform temperature distribution, while the steam humidification system and capacitive humidity sensor guarantee precise humidity control even during rapid changes.
The MKFT 240 features an integrated 20-liter water tank for automatic water supply and drainage, eliminating the need for external connections. A modern touchscreen controller allows for time-segment and real-time programming with USB and Ethernet data logging. Additional features include a heated viewing window with LED lighting, programmable condensation protection, door heating, and a Class 2 temperature safety device.
Mobility is provided by four castors (two lockable), and the unit uses environmentally friendly refrigerants R-452A and R-23.
Key Features:
-
Temperature range: –70 °C to +180 °C
-
Humidity range: 10 % to 98 % RH
-
Chamber volume: 228 L
-
Uniform conditions: APT.line™ preheating technology
-
Humidity system: Steam humidification with capacitive sensor
-
Integrated water tank: 20 L with auto supply and drainage
-
Controller: Touchscreen with time-segment and real-time programming
-
Data logging: USB and Ethernet
-
Visibility: Heated viewing window with LED lighting
-
Access port: 50 mm on left side
-
Condensation protection and door heating
-
Safety: Class 2 temperature safety device with alarms
-
Mobility: Four castors (two lockable)
-
Refrigeration: R-452A and R-23
Specifications
Warranty: 2 years
Lead time: 2-3 weeks
| Designation | MKFT240-400V |
| Article Number | 9020-0383 |
| Performance Data Temperature | |
| Temperature range | -70…180 °C |
| Temperature uniformity dependent on set value | 0.2…1.8 ± K |
| Temperature fluctuation dependent on set value | 0.1…0.5 ± K |
| Average heating-up rate according to IEC 60068-3-5 | 5.0 K/min |
| Cooling down time from 180°C to -70°C | 110 min |
| Average cooling down time according to IEC 60068-3-5 | 4.2 K/min |
| Performance Data Climate | |
| Temperature range with humidity | 10…95 °C |
| Humidity range | 10…98 % RH |
| Temperature fluctuation with humidity dependent on set value | 0.1…1.5 ± K |
| Humidity fluctuation with humidity dependent on set value | ≤2,5 ± % r.F. |
| Max. heat compensation at 25°C and 90% RH | 400 W |
| Measures | |
| Interior volume | 228 L |
| Net weight of the unit (empty) | 415 kg |
| Load per rack | 30 kg |
| Permitted load | 70 kg |
| Doors | |
| Unit doors | 1 |
| Internal Dimensions | |
| Interior width | 735 mm |
| Interior height | 700 mm |
| Interior depth | 443 mm |
| Wall clearance | |
| Wall clearance back | 300 mm |
| Wall clearance sidewise | 200 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 1,115 mm |
| Height net | 1,940 mm |
| Depth net | 925 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 400 V |
| Power frequency | 50 Hz |
| Nominal power | 6 kW |
| Nominal current | 12,5 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 3~/N/PE |
| Environment-specific data | |
| Sound-pressure level | 67 dB(A) |
| Energy consumption at 25°C and 60% RH | 1,000 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 1/6 |
Full list: see datasheet
