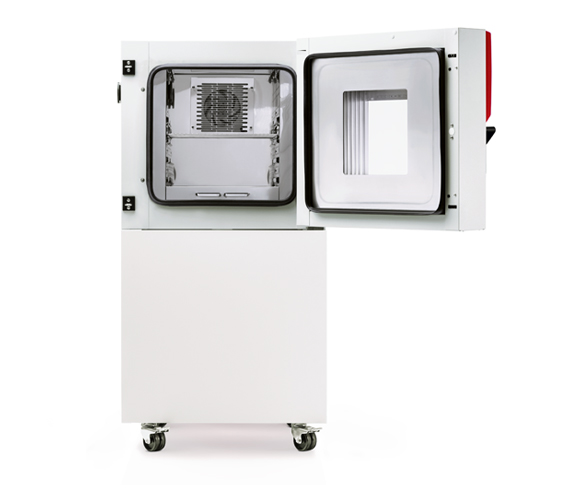

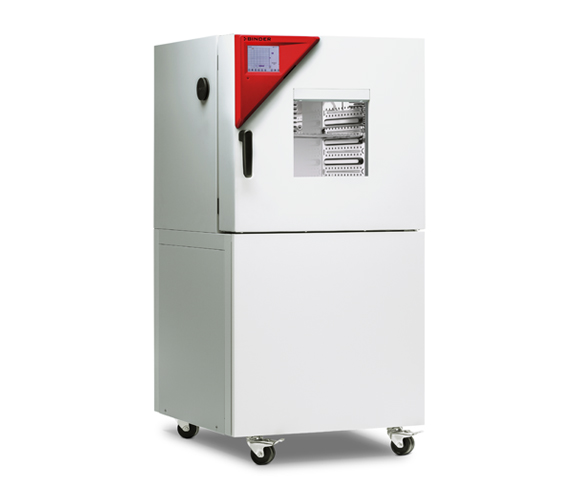

Binder MKF 56 dynamic climate chamber
Pricing on request *
Benefits:
- Homogeneous climate conditions thanks to APT.line™ technology
- Automatic water and wastewater management
- Pressure humidification with fast response times
- Comprehensive programming and data acquisition
- Large heated viewing window
Important features:
- Temperature range: -40 °C to +180 °C
- Humidity range: 10 % to 98 % RH
- 4 zero-voltage relay contacts that can be activated via MCS controller
- APT.line™ preheating chamber technology
- Programmable condensation protection for test material
- Heated viewing window with LED interior lighting
- Humidity regulation with capacitative humidity sensor and vapor humidification
- BINDER Multi Management Software APT-COM™ Basic Edition
- Troubleshooting system with visual and audible alarms
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Access port with silicone plug: 50 mm, left
- 4 castors, two with brakes
- Computer interface: Ethernet
- Adjustable ramp function
- Integrated chart recorder
- Real-time clock
- Door heating
- 1 stainless steel rack
- Complete safety connection kit for water supply and drainage, up to 1 m height
- BINDER test confirmation
- Inner chamber made of stainless steel
- Pt 100 temperature sensor
- Thermal insulation using PUR foam
- CFC-free refrigerant R-452A
- Cooling with compressor cooling unit
- Fin evaporator
Description
Binder MKF 56 Climate Chamber – Compact Dynamic Environmental Chamber with Humidity Control
The Binder MKF 56 dynamic climate chamber combines precision, performance, and compact design for demanding environmental simulations. With a chamber volume of 60 L, it is ideal for applications requiring fast temperature changes and accurate humidity control, such as thermal cycling, accelerated aging, and stress testing in accordance with DIN and IEC standards.
Operating in a temperature range from –40 °C to +180 °C with exceptional uniformity (±0.5 to 1.5 K) and humidity control from 10 % to 98 % RH (±2.5 %), the MKF 56 ensures stable and repeatable conditions. The chamber uses APT.line™ preheating technology for uniform air distribution and features a capacitive humidity sensor with rapid steam humidification for fast and precise climate regulation.
Key design features include a stainless steel interior, LED chamber lighting, heated viewing window with humidity protection, a 50 mm access port for external probes, and a lockable door. The touchscreen controller allows real-time and time-segment programming, with data logging via USB or Ethernet using APT-COM™ software. An integrated 20-liter water tank supports the humidity system without external connections.
Built on castors for mobility and insulated with environmentally friendly materials, the MKF 56 runs on CFC-free R-452A refrigerant and includes safety features such as programmable condensation protection and alarm systems.
Key Features:
-
Temperature range: –40 °C to +180 °C (±0.5 to 1.5 K)
-
Humidity range: 10 % to 98 % RH (±2.5 %)
-
Chamber volume: 60 L (400 × 420 × 348 mm)
-
Humidity control: Steam humidification with capacitive sensor
-
Preheating system: APT.line™ for uniform temperature
-
Controller: Touchscreen with USB/Ethernet data logging
-
Interior: Stainless steel with heated viewing window
-
Mobility: Castors with brake locks
-
Access port: Ø 50 mm for external sensors
-
Water supply: Integrated 20 L tank
-
Refrigerant: R-452A, CFC-free
-
Compliance: DIN/IEC, with safety and alarm features
Specifications
Warranty: 2 years
Lead time: 2-3 weeks
| Designation | MKF056-230V |
| Article Number | 9020-0378 |
| Performance Data Temperature | |
| Temperature range | -40…180 °C |
| Temperature uniformity dependent on set value | 0.5…1.5 ± K |
| Temperature fluctuation dependent on set value | 0.1…0.5 ± K |
| Average heating-up rate according to IEC 60068-3-5 | 5.0 K/min |
| Cooling down time from 180°C to -40°C | 90 min |
| Average cooling down time according to IEC 60068-3-5 | 5.0 K/min |
| Performance Data Climate | |
| Temperature range with humidity | 10…95 °C |
| Humidity range | 10…98 % RH |
| Temperature fluctuation with humidity dependent on set value | 0.1…0.5 ± K |
| Humidity fluctuation with humidity dependent on set value | ≤2,5 ± % r.F. |
| Max. heat compensation at 25°C and 90% RH | 250 W |
| Measures | |
| Interior volume | 60 L |
| Net weight of the unit (empty) | 175 kg |
| Load per rack | 15 kg |
| Permitted load | 60 kg |
| Doors | |
| Unit doors | 1 |
| Internal Dimensions | |
| Interior width | 400 mm |
| Interior height | 420 mm |
| Interior depth | 348 mm |
| Wall clearance | |
| Wall clearance back | 300 mm |
| Wall clearance sidewise | 200 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 720 mm |
| Height net | 1,445 mm |
| Depth net | 780 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 200…230 V |
| Power frequency | 50 Hz |
| Nominal power | 2,8 kW |
| Nominal current | 12,5 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Sound-pressure level | 59 dB(A) |
| Energy consumption at 25°C and 60% RH | 800 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 1/4 |
Full list: see datasheet
