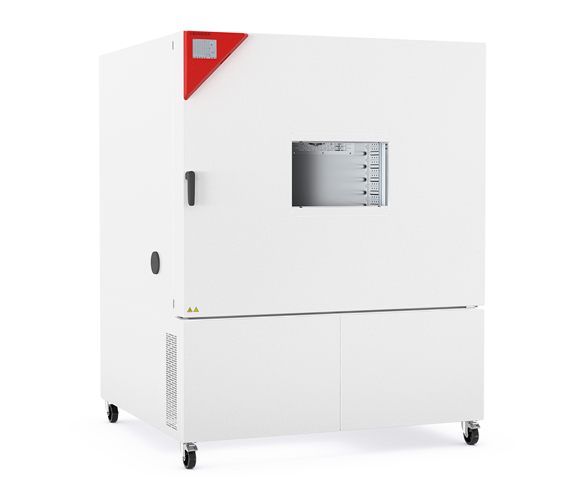

Binder MKF 1020 dynamic climate chamber
Pricing on request *
Benefits:
- Homogeneous climate conditions thanks to APT.line™ technology
- Automatic water and wastewater management
- Pressure humidification with fast response times
- Comprehensive programming and data acquisition
- Large heated viewing window
Important features:
- Temperature range: -40°C to +180°C
- Humidity range: 10% to 98% RH
- Humidity regulation with capacitive humidity sensor and steam humidification
- APT.line™ preheating chamber technology
- Intuitive touchscreen controller with time-segment and real-time programming
- CFC-free refrigerant R-452A
- Integrated water-storage tank, 20 L
- 1 stainless steel rack
- Access port with silicone plug (models 56, 115, 240, 400), 50 mm, left
- 2 access ports with silicone plugs (models 720, 1020), 80 mm, left and right
- 4 zero-voltage relay contacts
- Heated viewing window with LED interior lighting
Description
Binder MKF 1020 Climate Chamber – 991 L Dynamic Environmental Chamber for Precise Temperature and Humidity Testing
The Binder MKF 1020 climate chamber offers a large 991-liter stainless steel chamber designed for demanding environmental testing applications requiring fast temperature cycling and precise humidity control. Ideal for industries such as electronics, automotive, aerospace, and materials science, this environmental chamber ensures reliable and reproducible test conditions.
Operating within a broad temperature range of –40 °C to +180 °C and a humidity range of 10 % to 98 % RH, the MKF 1020 guarantees excellent temperature uniformity and humidity accuracy. APT.line™ preheating technology provides uniform temperature distribution, while steam humidification combined with a capacitive humidity sensor delivers rapid and exact humidity control.
The chamber includes a 20-liter integrated water tank for automatic water supply and drainage, removing the need for external plumbing. The intuitive touchscreen controller supports real-time and time-segment programming, with data logging available via USB and Ethernet interfaces. Additional features include a heated viewing window with LED lighting, two 80 mm access ports, programmable condensation protection, and door heating.
Mobility is facilitated by four lockable castors, and safety is ensured through a Class 2 temperature safety device with alarms. The chamber uses eco-friendly R‑452A refrigerant, aligning with modern environmental standards.
Key Features:
-
Temperature range: –40 °C to +180 °C
-
Humidity range: 10 % to 98 % RH
-
Chamber volume: 991 L
-
APT.line™ preheating for even temperature distribution
-
Steam humidification with capacitive humidity sensor
-
Integrated 20 L water tank for automatic humidification and drainage
-
Touchscreen controller with real-time and time-segment programming
-
Data logging: USB and Ethernet with integrated chart recorder
-
Heated viewing window with LED lighting
-
Two 80 mm access ports for external sensors
-
Programmable condensation protection and door heating
-
Class 2 temperature safety device with alarms
-
Mounted on lockable castors for easy mobility
-
Refrigerant: CFC-free R‑452A
Specifications
Warranty: 2 years
Lead time: 2-3 weeks
| Designation | MKF1020-400V |
| Article Number | 9020-0409 |
| Performance Data Temperature | |
| Temperature range | -40…180 °C |
| Temperature uniformity dependent on set value | 0.1…1.8 ± K |
| Temperature fluctuation dependent on set value | 0.1…0.5 ± K |
| Average heating-up rate according to IEC 60068-3-5 | 5.5 K/min |
| Cooling down time from 180°C to -40°C | 120 min |
| Average cooling down time according to IEC 60068-3-5 | 5.0 K/min |
| Performance Data Climate | |
| Temperature range with humidity | |
| Humidity range | 10…98 % RH |
| Temperature fluctuation with humidity dependent on set value | 5…94 °C |
| Humidity fluctuation with humidity dependent on set value | |
| Max. heat compensation at 25°C and 90% RH | 1,500 W |
| Measures | |
| Interior volume | 991 L |
| Net weight of the unit (empty) | 636 kg |
| Load per rack | 40 kg |
| Permitted load | 200 kg |
| Doors | |
| Unit doors | 1 |
| Internal Dimensions | |
| Interior width | 1,200 mm |
| Interior height | 1,020 mm |
| Interior depth | 810 mm |
| Wall clearance | |
| Wall clearance back | 300 mm |
| Wall clearance sidewise | 200 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 1,580 mm |
| Height net | 2,005 mm |
| Depth net | 1,480 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP20 |
| Rated Voltage | 400 V |
| Power frequency | 50 Hz |
| Nominal power | 12,5 kW |
| Nominal current | 22,5 A |
| Unit fuse | 32,0 A |
| Phase (Nominal voltage) | 3~/N/PE |
| Environment-specific data | |
| Sound-pressure level | 69 dB(A) |
| Energy consumption at 25°C and 60% RH | 2,200 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 1/11 |
Full list: see datasheet
