Binder KBF-S ECO 720 constant climate chamber
Pricing on request
Benefits:
- Safe thanks to standard-compliant testing according to the ICH Q1A guideline, even with full load.
- Reliable thanks to failsafe operation without compromise.
- Smart, as a wide range of accessories makes it highly compatible for adaptation to specific customer requirements.
- Economical, as energy consumption is minimal thanks to optimized thermoelectric cooling.
Important features:
- Temperature range: 0 °C to +70 °C (max. 28 °C under ambient temperature)
- Humidity range: 10% to 80% RH
- APT.line™ preheating chamber technology
- Independent water supply via tank
- LCD to display temperature and humidity along with additional information and alarms
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Inner chamber made completely of stainless steel
- 2 stainless steel racks, including shelf carrier
- Access port with silicone plug Ø 30 mm, left
- Computer interface: Ethernet

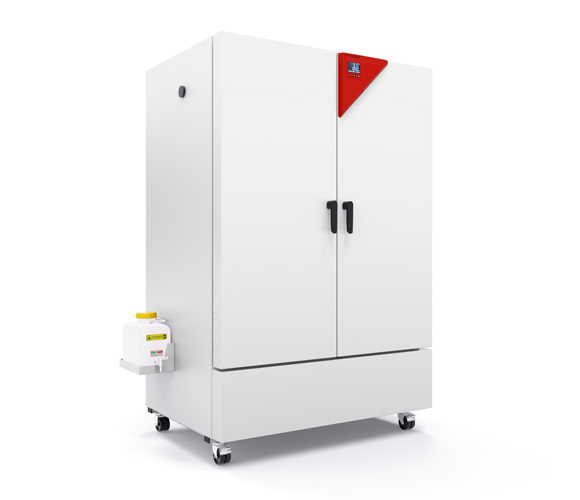

Binder KBF-S ECO 720 Constant Climate Chamber – 700 L with Peltier Efficiency
The Binder KBF-S ECO 720 constant climate chamber is a high-capacity, energy-efficient solution for long-term stability testing and environmental simulation in pharmaceutical, biotech, and research laboratories. With a generous 700-liter stainless steel chamber, it is ideal for large sample volumes and critical testing scenarios.
This unit operates in a temperature range of 0 °C to 70 °C and a humidity range of 10% to 80% RH, ensuring precise and stable conditions across the entire chamber. Powered by advanced Peltier technology, the KBF-S ECO 720 eliminates the need for refrigerants, offering a quiet, low-maintenance, and environmentally friendly alternative to traditional cooling systems.
The chamber features Binder’s proprietary APT.line™ preheating technology for uniform temperature distribution and a capacitive humidity sensor paired with steam humidification for reliable and consistent humidity control. A user-friendly touchscreen controller provides real-time monitoring, easy programming, and GLP-compliant data export via USB or Ethernet.

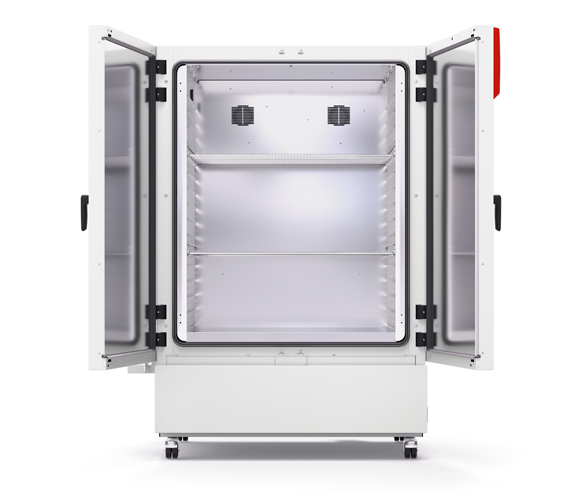

Equipped with two telescopic stainless steel racks (expandable to 15), a 30 mm access port for external sensors, and a Class 3.3 temperature safety device with visual and audible alarms, the KBF-S ECO 720 ensures optimal sample safety and process reliability.
Key Features:
Temperature range: 0 °C to 70 °C
Humidity range: 10% to 80% RH
Chamber volume: 700 liters
Peltier-based cooling/heating—no refrigerants
APT.line™ preheating chamber technology
Capacitive humidity sensor with steam humidification
Intuitive touchscreen controller with real-time display
GLP-compliant USB and Ethernet data export
Class 3.3 temperature safety device with alarms
Ø 30 mm access port for external monitoring
Two telescopic stainless steel racks (expandable to 15)
Mobile frame with locking casters
The Binder KBF-S ECO 720 combines high volume, reliable performance, and energy efficiency, making it a top-tier Binder climate chamber for stable and sustainable testing environments.
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | KBFSECO720-230V |
| Article Number | 9020-0418 |
| Performance Data Temperature | |
| Temperature range | (max. 24 °C under ambient temperature) 0…70 °C |
| Max. heat compensation at 40°C | 400 W |
| Performance Data Climate | |
| Temperature range with humidity | (max. 24 °C under ambient temperature) 5…70 °C |
| Humidity range | 10…80 % RH |
| Temperature uniformity at 25°C and 60% RH | 0.1 ± K |
| Temperature uniformity at 40°C and 75% RH | 0.3 ± K |
| Temperature fluctuation at 25°C and 60% RH | 0.1 ± K |
| Temperature fluctuation at 40°C and 75% RH | 0.1 ± K |
| Recovery time after door was opened for 30 s at 25°C and 60% RH | 7 min |
| Recovery time after door was opened for 30 s at 40°C and 75% RH | 17 min |
| Measures | |
| Interior volume | 700 L |
| Net weight of the unit (empty) | 267 kg |
| Load per rack | 45 kg |
| Permitted load | 150 kg |
| Doors | |
| Unit doors | 2 |
| Internal Dimensions | |
| Interior width | 973 mm |
| Interior height | 1,250 mm |
| Interior depth | 576 mm |
| Wall clearance | |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 180 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 1,254 mm |
| Height net | 1,925 mm |
| Depth net | 885 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 200…230 V |
| Power frequency | 50/60 Hz |
| Nominal power | 1,2 kW |
| Nominal current | 5,3 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Sound-pressure level | 48 dB(A) |
| Energy consumption at 25°C and 60% RH | 90 Wh/h |
| Energy consumption at 40°C and 75% RH | 130 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 2/15 |
Full list: see datasheet
