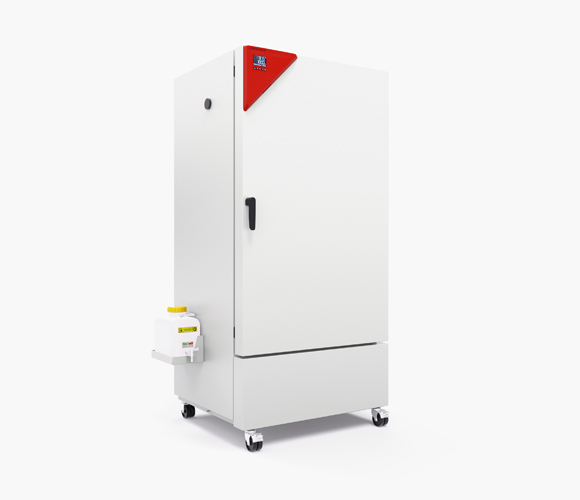

Binder KBF-S ECO 400 constant climate chamber
Pricing on request
Benefits:
- Safe thanks to standard-compliant testing according to the ICH Q1A guideline, even with full load.
- Reliable thanks to failsafe operation without compromise.
- Smart, as a wide range of accessories makes it highly compatible for adaptation to specific customer requirements.
- Economical, as energy consumption is minimal thanks to optimized thermoelectric cooling.
Important features:
- Temperature range: 0 °C to +70 °C (max. 28 °C under ambient temperature)
- Humidity range: 10% to 80% RH
- APT.line™ preheating chamber technology
- Independent water supply via tank
- LCD to display temperature and humidity along with additional information and alarms
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis

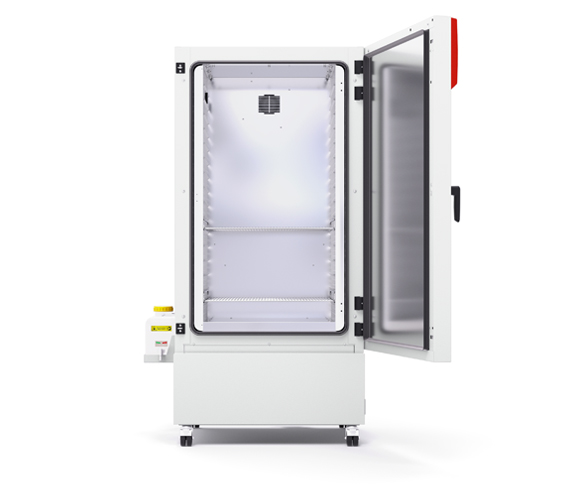

- Inner chamber made completely of stainless steel
- 2 stainless steel racks, including shelf carrier
- Access port with silicone plug Ø 30 mm, left
- Computer interface: Ethernet
Binder KBF-S ECO 400 Constant Climate Chamber – 400 L with Reliable Peltier Climate Control
The Binder KBF-S ECO 400 constant climate chamber combines high volume and energy-efficient operation using Peltier technology, making it suitable for laboratories conducting pharmaceutical stability studies and environmental simulations.
With a 400-liter stainless steel chamber, the unit provides consistent climate conditions within a temperature range of 0 °C to 70 °C and a humidity range of 10% to 80% RH, without employing refrigerants. The silent and maintenance-free Peltier system minimizes environmental impact while maintaining precise control.
The chamber features Binder’s APT.line™ preheating technology for uniform temperature, and a capacitive humidity sensor with steam humidification for accurate moisture regulation. Its user-friendly touchscreen controller allows flexible programming and continuous monitoring. GLP-compliant data export is supported via USB and Ethernet interfaces.
Additional benefits include two telescopic stainless steel racks (expandable to 15), a 30 mm access port, and a Class 3.3 temperature safety device with visual and acoustic alarms. The mobile unit is equipped with locking casters for stability.
Key Features:
Temperature range: 0 °C to 70 °C
Humidity range: 10% to 80% RH
Chamber volume: 400 liters
Peltier cooling/heating technology—no refrigerants involved
APT.line™ preheating chamber for uniform temperature
Capacitive humidity sensor with steam humidification
Touchscreen controller with real-time data display
USB and Ethernet ports for GLP data export
Class 3.3 temperature safety device with alarms
Ø 30 mm access port for external sensors
Two telescopic stainless steel racks (expandable to 15)
Mobile frame with locking wheels
The Binder KBF-S ECO 400 is a sustainable and high-performance solution for constant climate testing, combining precision with energy efficiency.
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | KBFSECO400-230V |
| Article Number | 9020-0463 |
| Performance Data Temperature | |
| Temperature range | (max. 26 °C under ambient temperature) 0…70 °C |
| Max. heat compensation at 40°C | 300 W |
| Performance Data Climate | |
| Temperature range with humidity | (max. 26 °C under ambient temperature) 5…70 °C |
| Humidity range | 10…80 % RH |
| Temperature uniformity at 25°C and 60% RH | 0.1 ± K |
| Temperature uniformity at 40°C and 75% RH | 0.5 ± K |
| Temperature fluctuation at 25°C and 60% RH | 0.1 ± K |
| Temperature fluctuation at 40°C and 75% RH | 0.1 ± K |
| Recovery time after door was opened for 30 s at 25°C and 60% RH | 6 min |
| Recovery time after door was opened for 30 s at 40°C and 75% RH | 15 min |
| Measures | |
| Interior volume | 400 L |
| Net weight of the unit (empty) | 192 kg |
| Load per rack | 30 kg |
| Permitted load | 120 kg |
| Doors | |
| Unit doors | 1 |
| Internal Dimensions | |
| Interior width | 650 mm |
| Interior height | 1,268 mm |
| Interior depth | 485 mm |
| Wall clearance | |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 180 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 925 mm |
| Height net | 1,946 mm |
| Depth net | 796 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 200…230 V |
| Power frequency | 50/60 Hz |
| Nominal power | 1,1 kW |
| Nominal current | 4,8 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Sound-pressure level | 45 dB(A) |
| Energy consumption at 25°C and 60% RH | 60 Wh/h |
| Energy consumption at 40°C and 75% RH | 70 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 2/15 |
Full list: see datasheet
