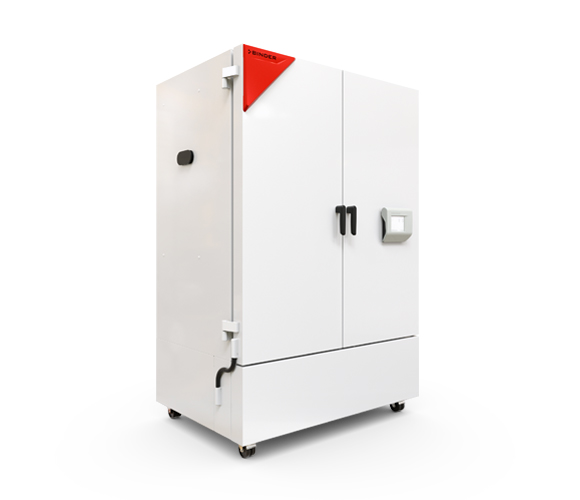

Binder KBF PRO 720 constant climate chamber
Pricing on request
Benefits:
- Reliable and powerful thanks to innovative temperature control technology
- Reliable: failsafe operation over the long term thanks to proven compressor technology and inner chamber made of stainless steel
- Smart: signal triangle with light-up status display, ergonomic control terminal with touchscreen program controller, rack with telescopic rails
- Efficient: low energy consumption thanks to modern inverter cooling technology
Important features:
- Temperature range: -20°C to +100°C
- Humidity range: 10% to 98% RH
- Proven APT.line™ preheating chamber technology
- Up to 40% lower energy consumption compared to the previous model
- Energy-efficient cooling with modern inverter cooling unit
- Cooling with climate-neutral R-290 refrigerant
- Door heating to prevent condensation
- Adjustable fan speed
- Humidity regulation with capacitive humidity sensor and responsive steam humidification
- Robust housing design with HIT sandwich technology
- Stainless-steel inner chamber
- Inner doors made of metal oxide-coated safety glass
- Two racks made of stainless steel (for models from 260 with telescopic rails)
- Large access port with silicone plug
- Floor-standing units (from model 260) featuring robust twin casters, with brakes at the front
- Intuitive touchscreen controller with time-segment and real-time programming
- Ergonomically adjustable control terminal (from model 470)
- Signal triangle with light-up status display (from model 470)
- Internal data logger, measured values can be read out in open format via USB
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
- Unit self-test for comprehensive status analysis
- Data interfaces: Ethernet, USB
- BINDER Multi Management Software APT-COM™ basic edition
- Optional light modules for ICH photostability testing (for models 260, 470, 720)
- Optional LED light modules for plant growth (for models from 260)
Binder KBF PRO 720 Constant Climate Chamber – 727 L Capacity for High-Volume Stability Testing
The Binder KBF PRO 720 constant climate chamber is designed for high-volume stability and stress testing in demanding laboratory environments. With a generous 727-liter stainless steel interior, it offers precise control of both temperature and humidity for long-term studies and accelerated aging protocols in pharmaceutical, biotech, and chemical research.
Operating across a temperature range of –20 °C to +100 °C and a humidity range of 10% to 98% RH, this climate chamber delivers stable and reproducible environmental conditions. Binder’s APT.line™ preheating chamber technology ensures uniform temperature distribution throughout the chamber, while the advanced inverter compressor and eco-friendly R‑290 refrigerant deliver powerful performance with significantly reduced energy usage.
The chamber features a capacitive humidity sensor and steam humidification system for accurate moisture control. An intuitive touchscreen controller allows precise programming and monitoring, while USB and Ethernet interfaces enable GLP-compliant data logging. Safety features include a Class 3.3 independent temperature safety device, visual and audible alarms, and an integrated self-diagnostic system.

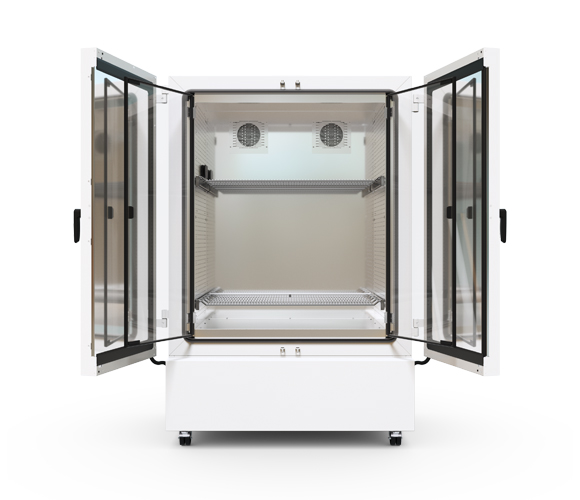

Designed with usability in mind, the KBF PRO 720 includes two stainless steel racks on telescopic rails (expandable to 15), a 30 mm access port, and mobile casters with brakes. Optional ICH-compliant lighting modules make this unit suitable for photostability testing.
Key Features:
Temperature range: –20 °C to +100 °C
Humidity range: 10% to 98% RH
Chamber volume: 727 liters
APT.line™ preheating technology for temperature uniformity
Energy-efficient inverter compressor with R‑290 refrigerant
Steam humidification and capacitive humidity sensor
Touchscreen controller with programmable time segments
USB and Ethernet ports for data export
Class 3.3 temperature safety device with alarms
Self-diagnostic function
Door heating and adjustable fan speed
Ø 30 mm access port
Two stainless steel telescopic racks (expandable to 15)
Mobile with locking casters
Optional ICH-compliant lighting modules
The Binder KBF PRO 720 climate chamber is the ideal solution for laboratories that require large-capacity, high-precision climate control for regulated testing environments.
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | KBFPRO720-230V |
| Article Number | 9020-0442 |
| Performance Data Temperature | |
| Temperature range | -20…100 °C |
| Max. heat compensation at 40°C | 1,000 W |
| Performance Data Climate | |
| Temperature range with humidity | 10…90 °C |
| Humidity range | 10…98 % RH |
| Temperature uniformity at 25°C and 60% RH | 0.3 ± K |
| Temperature uniformity at 40°C and 75% RH | 0.3 ± K |
| Temperature fluctuation at 25°C and 60% RH | 0.1 ± K |
| Temperature fluctuation at 40°C and 75% RH | 0.1 ± K |
| Recovery time after door was opened for 30 s at 25°C and 60% RH | 1 min |
| Recovery time after door was opened for 30 s at 40°C and 75% RH | 5 min |
| Recovery time after door was opened for 30 s at 85°C and 85% RH | 40 min |
| Measures | |
| Interior volume | 727 L |
| Net weight of the unit (empty) | 312 kg |
| Load per rack | 40 kg |
| Permitted load | 100 kg |
| Doors | |
| Unit doors | 2 |
| Inner doors | 2 |
| Internal Dimensions | |
| Interior width | 1,011 mm |
| Interior height | 1,250 mm |
| Interior depth | 575 mm |
| Wall clearance | |
| Wall clearance back | 180 mm |
| Wall clearance sidewise | 180 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 1,285 mm |
| Height net | 1,951 mm |
| Depth net | 900 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 208…240 V |
| Power frequency | 50/60 Hz |
| Nominal power | 1,8 kW |
| Nominal current | 7,5 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| sound level at 25°C and 60 % RH | 50 dB(A) |
| Energy consumption at 25°C and 60% RH | 390 Wh/h |
| Energy consumption at 40°C and 75% RH | 435 Wh/h |
| Energy consumption at 85°C and 85% RH | 600 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 2/16 |
Full list: see datasheet
