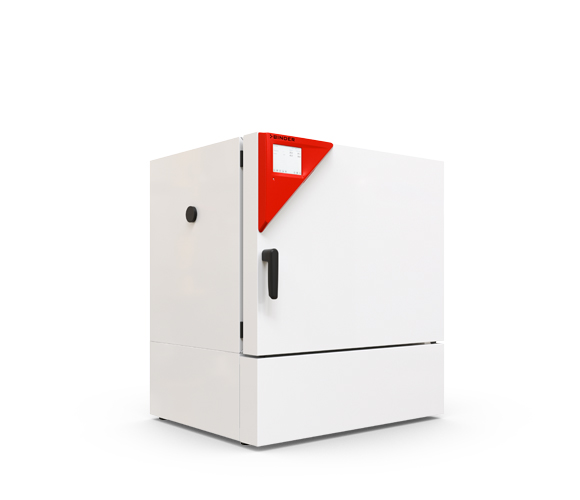

Binder KBF PRO 130 constant climate chamber
€21.462,00 excl. VAT
Benefits:
- Reliable and powerful thanks to innovative temperature control technology
- Reliable: failsafe operation over the long term thanks to proven compressor technology and inner chamber made of stainless steel
- Smart: signal triangle with light-up status display, ergonomic control terminal with touchscreen program controller, rack with telescopic rails
- Efficient: low energy consumption thanks to modern inverter cooling technology
Important features:
- Temperature range: -20°C to +100°C
- Humidity range: 10% to 98% RH
- Proven APT.line™ preheating chamber technology
- Up to 40% lower energy consumption compared to the previous model
- Energy-efficient cooling with modern inverter cooling unit
- Cooling with climate-neutral R-290 refrigerant
- Door heating to prevent condensation
- Adjustable fan speed
- Humidity regulation with capacitive humidity sensor and responsive steam humidification
- Robust housing design with HIT sandwich technology
- Stainless-steel inner chamber
- Inner doors made of metal oxide-coated safety glass
- Two racks made of stainless steel (for models from 260 with telescopic rails)
- Large access port with silicone plug
- Tabletop units (up to model 130) are stackable with stacking adapter
- Floor-standing units (from model 260) featuring robust twin casters, with brakes at the front
- Intuitive touchscreen controller with time-segment and real-time programming
- Ergonomically adjustable control terminal (from model 470)
- Signal triangle with light-up status display (from model 470)
- Internal data logger, measured values can be read out in open format via USB
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
- Unit self-test for comprehensive status analysis
- Data interfaces: Ethernet, USB
- BINDER Multi Management Software APT-COM™ basic edition
- Optional light modules for ICH photostability testing (for models 260, 470, 720)
- Optional LED light modules for plant growth (for models from 260)
Description
Binder KBF PRO 130 Constant Climate Chamber – 127 L Precision Testing in Compact Size
The Binder KBF PRO 130 constant climate chamber offers compact, high-precision performance for demanding material and stability testing in pharmaceutical, biotech, and research laboratories. With a 127-liter stainless steel chamber, it provides tight control of temperature (–20 °C to +100 °C) and humidity (10% to 98% RH), making it ideal for accelerated aging, high humidity cycles, and stability protocols.
The unit incorporates Binder’s advanced APT.line™ preheating technology and an energy-efficient inverter compressor using environmentally friendly R‑290 refrigerant. This ensures consistent climatic conditions throughout the chamber while reducing energy consumption by up to 40% compared to older models.
Key features include door heating to prevent condensation, adjustable fan speed, and highly accurate steam humidification with capacitive humidity control. A modern touchscreen controller allows intuitive time-segment programming and real-time monitoring, while integrated USB and Ethernet ports enable GLP-compliant data logging.
The chamber is equipped with a Class 3.3 independent temperature safety device, visual and audible alarms, and a built-in diagnostic system. The tabletop design is stackable and includes two telescopic stainless steel racks and a Ø 30 mm access port for sensor integration.
Key Features:
-
Temperature range: –20 °C to +100 °C
-
Humidity range: 10% to 98% RH
-
Internal volume: 127 liters
-
APT.line™ preheating technology
-
Inverter compressor with R‑290 refrigerant
-
Up to 40% lower energy consumption
-
Touchscreen controller with segment programming
-
USB and Ethernet data logging interfaces
-
Door heating and adjustable fan speed
-
Steam humidification with capacitive sensor
-
Class 3.3 safety system with alarms
-
Built-in self-diagnostic function
-
Ø 30 mm access port
-
Stackable tabletop format with telescopic racks
The Binder KBF PRO 130 delivers professional-grade performance, combining compact form, energy efficiency, and precise environmental control for critical laboratory testing.
Specifications
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | KBFPRO130-230V |
| Article Number | 9020-0439 |
| Performance Data Temperature | |
| Temperature range | -20…100 °C |
| Max. heat compensation at 40°C | 450 W |
| Performance Data Climate | |
| Temperature range with humidity | 10…90 °C |
| Humidity range | 10…98 % RH |
| Temperature uniformity at 25°C and 60% RH | 0.2 ± K |
| Temperature uniformity at 40°C and 75% RH | 0.2 ± K |
| Temperature fluctuation at 25°C and 60% RH | 0.1 ± K |
| Temperature fluctuation at 40°C and 75% RH | 0.1 ± K |
| Recovery time after door was opened for 30 s at 25°C and 60% RH | 1 min |
| Recovery time after door was opened for 30 s at 40°C and 75% RH | 3 min |
| Recovery time after door was opened for 30 s at 85°C and 85% RH | 5 min |
| Measures | |
| Interior volume | 127 L |
| Net weight of the unit (empty) | 142 kg |
| Load per rack | 25 kg |
| Permitted load | 50 kg |
| Doors | |
| Unit doors | 1 |
| Inner doors | 1 |
| Internal Dimensions | |
| Interior width | 656 mm |
| Interior height | 500 mm |
| Interior depth | 386 mm |
| Wall clearance | |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 100 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 900 mm |
| Height net | 1,005 mm |
| Depth net | 710 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 208…240 V |
| Power frequency | 50/60 Hz |
| Nominal power | 1,9 kW |
| Nominal current | 7,9 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| sound level at 25°C and 60 % RH | 46 dB(A) |
| Energy consumption at 25°C and 60% RH | 235 Wh/h |
| Energy consumption at 40°C and 75% RH | 255 Wh/h |
| Energy consumption at 85°C and 85% RH | 345 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 2/6 |
Full list: see datasheet
