Binder KBF 720 constant climate chamber
€22.995,00 excl. VAT
Benefits:
- A reliable option for critical ICH stability testing thanks to maximum climate homogeneity, even when the unit is fully loaded
- Reliable: failsafe operation over the long term thanks to proven compressor technology and interior made of stainless steel
- Smart: signal triangle with light-up status display and ergonomic control terminal with touchscreen program controller
- Economical: up to 40% lower energy consumption than the previous model thanks to modern inverter cooling technology
Important features:
- Temperature range: 0°C to +70°C
- Humidity range: 10% to 80% RH
- Proven APT.line™ preheating chamber technology
- Up to 40% lower energy consumption compared to the previous model
- Energy-efficient cooling with modern inverter cooling unit
- Cooling with climate-neutral R-600a refrigerant
- Door heating to prevent condensation
- Adjustable fan speed
- Humidity regulation with capacitive humidity sensor and responsive steam humidification
- Robust housing design with HIT sandwich technology
- Stainless-steel inner chamber
- Inner doors made of metal oxide-coated safety glass
- Two racks made of stainless steel
- Large access port with silicone plug
- Floor-standing units (from model 260) featuring robust twin casters, with brakes at the front
- Intuitive touchscreen controller with time-segment and real-time programming
- Ergonomically adjustable control terminal (from model 470)
- Signal triangle with light-up status display (from model 470)
- Internal data logger, measured values can be read out in open format via USB
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
- Unit self-test for comprehensive status analysis
- Data interfaces: Ethernet, USB
- BINDER Multi Management Software APT-COM™ basic edition
- Optional light modules for ICH photostability testing (for models 260, 470, 720)
- Optional LED light modules for plant growth (for models from 260)
Description

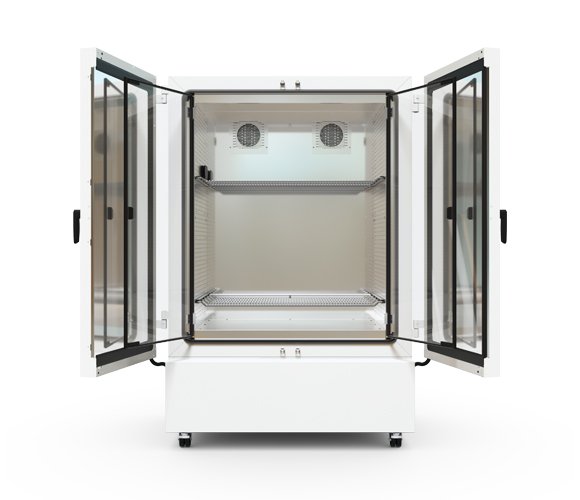

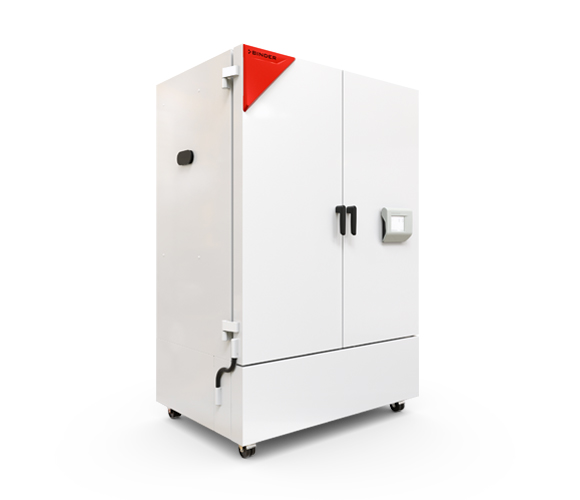

Binder Climatic Chamber KBF 720 – 727 L High-Capacity Constant Climate Chamber
The Binder climatic chamber KBF 720 is a premium constant climate chamber built for high-volume, long-term stability testing in pharmaceutical, biotech, and research laboratories. With an internal volume of 727 liters, it ensures consistent control of temperature (0 °C to +70 °C) and humidity (10% to 80% RH), even when fully loaded.
This model features Binder’s APT.line™ preheating technology for uniform temperature and humidity distribution, while the energy-efficient inverter compressor and R-600a refrigerant provide up to 40% energy savings compared to older models.
The KBF 720 is equipped with a user-friendly touchscreen controller for segment programming, along with integrated USB and Ethernet interfaces for GLP-compliant data logging. Safety is guaranteed by a Class 3.1 independent temperature safety device, as well as visual and audible alarms. Practical design features such as door heating, adjustable fan speed, and a large 80 mm access port support smooth day-to-day operation.
Optional ICH-compliant LED light modules are available for photostability or plant growth testing, enhancing the chamber’s versatility for a wide range of scientific applications.
Key Features:
-
Temperature range: 0 °C to +70 °C
-
Humidity range: 10% to 80% RH
-
Internal volume: 727 liters
-
APT.line™ preheating technology for climate uniformity
-
Inverter compressor with R-600a refrigerant
-
Up to 40% energy savings
-
Touchscreen controller with segment programming
-
Integrated USB and Ethernet data logging
-
Class 3.1 safety system with visual/audible alarms
-
Door heating and adjustable fan speed
-
Ø 80 mm access port
-
2 stainless steel shelves included (expandable)
-
Optional light modules for photostability testing
The Binder climatic chamber KBF 720 offers unmatched reliability, efficiency, and compliance with ICH requirements, making it the ideal choice for researchers conducting stability testing under tightly controlled conditions.
Specifications
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | KBF720-230V |
| Article Number | 9020-0481 |
| Performance Data Temperature | |
| Temperature range | 0…70 °C |
| Max. heat compensation at 40°C | 640 W |
| Performance Data Climate | |
| Temperature range with humidity | 10…70 °C |
| Humidity range | 10…80 % RH |
| Temperature uniformity at 25°C and 60% RH | 0.3 ± K |
| Temperature uniformity at 40°C and 75% RH | 0.2 ± K |
| Temperature fluctuation at 25°C and 60% RH | 0.1 ± K |
| Temperature fluctuation at 40°C and 75% RH | 0.1 ± K |
| Recovery time after door was opened for 30 s at 25°C and 60% RH | 1 min |
| Recovery time after door was opened for 30 s at 40°C and 75% RH | 5 min |
| Measures | |
| Interior volume | 727 L |
| Net weight of the unit (empty) | 298 kg |
| Load per rack | 40 kg |
| Permitted load | 100 kg |
| Doors | |
| Unit doors | 2 |
| Inner doors | 2 |
| Internal Dimensions | |
| Interior width | 1,011 mm |
| Interior height | 1,250 mm |
| Interior depth | 575 mm |
| Wall clearance | |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 180 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 1,285 mm |
| Height net | 1,951 mm |
| Depth net | 900 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 220…240 V |
| Power frequency | 50/60 Hz |
| Nominal power | 1,6 kW |
| Nominal current | 6,7 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Schalldruckpegel bei 25°C und 60 % r.F. | 51 dB(A) |
| Energy consumption at 25°C and 60% RH | 360 Wh/h |
| Energy consumption at 40°C and 75% RH | 360 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 2/16 |
Full list: see datasheet
