Binder KB 65 cooling incubator
€7.400,00 excl. VAT
- Volume: 63 liter
- Temperature range: 0°C to +70°C
- Proven APT.line™ preheating chamber technology
- Up to 40% lower energy consumption compared to the previous model
- Energy-efficient cooling with modern inverter cooling unit
- Cooling with climate-neutral R-600a refrigerant
- Door heating to prevent condensation
- Robust housing design with HIT sandwich technology
- Interior made completely of stainless steel
- Inner doors made of metal oxide-coated safety glass
- Two racks made of stainless steel
- Large access port with silicone plug
- Tabletop units (up to model 130) are stackable with stacking adapter
- Floor-standing units (from model 260) featuring robust twin casters, with brakes at the front
- Simple programming of a second set temperature value
- Internal data logger, measured values can be read out in open format via USB
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
- Unit self-test for comprehensive status analysis
- Data interfaces: Ethernet, USB
Description

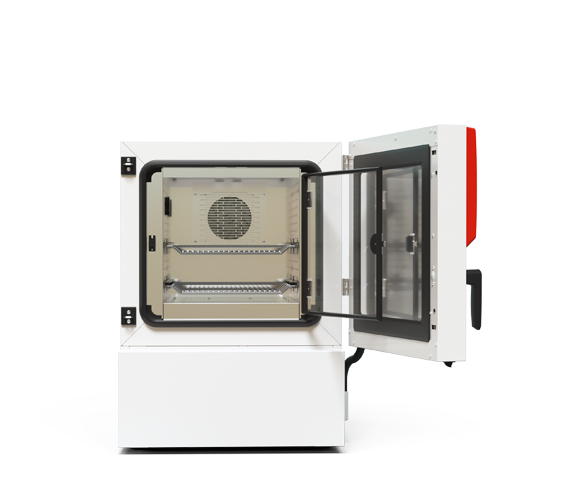

Binder KB 65 Cooling Incubator – Precision Cooling with Energy-Saving Inverter Technology
The Binder KB 65 cooling incubator is a compact, high-performance solution for precise temperature control in microbiology, pharmaceutical, and life science laboratories. Designed for both reliability and energy efficiency, this tabletop incubator delivers stable and uniform cooling from 0 °C to +70 °C, making it ideal for cultivating temperature-sensitive microorganisms and conducting long-term stability tests.
Powered by an advanced inverter compressor system and climate-neutral R-600a refrigerant, the KB 65 provides efficient, eco-friendly operation while reducing energy consumption by up to 40% compared to its predecessor. Binder’s proven APT.line™ preheating chamber technology ensures exceptional temperature uniformity, even when the chamber is fully loaded.
With features like door heating to prevent condensation, a robust HIT™ sandwich-constructed housing, and a stainless steel interior, the KB 65 is engineered for durability and consistent performance. Additional highlights include metal oxide-coated glass inner doors, USB and Ethernet connectivity, and a Class 3.3 temperature safety system (DIN 12880) with visual and audible alarms.
This model also includes an internal data logger for secure documentation, programmable dual temperature setpoints, and a compact footprint, making it a versatile and intelligent choice for modern labs.
Key Features:
-
Temperature range: 0 °C to +70 °C
-
Energy-saving inverter compressor cooling system
-
Up to 40% lower energy consumption vs. previous model
-
APT.line™ preheating chamber technology for temperature uniformity
-
Climate-neutral R-600a refrigerant
-
Door heating to prevent condensation buildup
-
Compact 65-liter stainless steel interior
-
Stackable tabletop design
-
Class 3.3 temperature safety device (DIN 12880) with alarms
-
USB and Ethernet ports for data logging and network integration
-
Internal data logger with exportable open-format files
-
Metal oxide-coated inner glass door for sample visibility
The Binder KB 65 cooling incubator combines smart inverter cooling with proven thermal performance and sustainable design—making it an excellent choice for labs that prioritize accuracy, space efficiency, and environmental responsibility.
Specifications
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | KB065-230V |
| Article Number | 9020-0471 |
| Performance Data Temperature | |
| Temperature range | 0…70 °C |
| Temperature uniformity at 37°C | 0.2 ± K |
| Temperature fluctuation at 37°C | 0.2 ± K |
| Max. heat compensation at 37°C | 160 W |
| Recovery time after door was opened for 30 s at 37°C | 3 min |
| Measures | |
| Interior volume | 63 L |
| Net weight of the unit (empty) | 95 kg |
| Load per rack | 25 kg |
| Permitted load | 50 kg |
| Doors | |
| Unit doors | 1 |
| Inner doors | 1 |
| Internal Dimensions | |
| Interior width | 406 mm |
| Interior height | 400 mm |
| Interior depth | 386 mm |
| Wall clearance | |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 100 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 650 mm |
| Height net | 905 mm |
| Depth net | 710 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 220…240 V |
| Power frequency | 50/60 Hz |
| Nominal power | 0,9 kW |
| Nominal current | 3,8 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Sound-pressure level at 25°C | 44 dB(A) |
| Energy consumption at 37°C | 90 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 2/4 |
- LED light bars: LED light bars in three different lengths (30, 50, 90 cm) can be easily and variably positioned in the BINDER unit, including various attachment options and control unit. Additional light bars can be added as desired.
- Access port with silicone plug: For introducing external measuring instruments. Large selection of different diameters
and positions (left, right, or top) - Interior lighting: The climate-resistant LED light switches on automatically when the door is opened.
- Services: You can access our installation, maintenance, calibration, validation, or warranty services by taking out a Maintenance Service Agreement or by simply getting in touch when you need us. More information is available in the accessories and services chapter.
