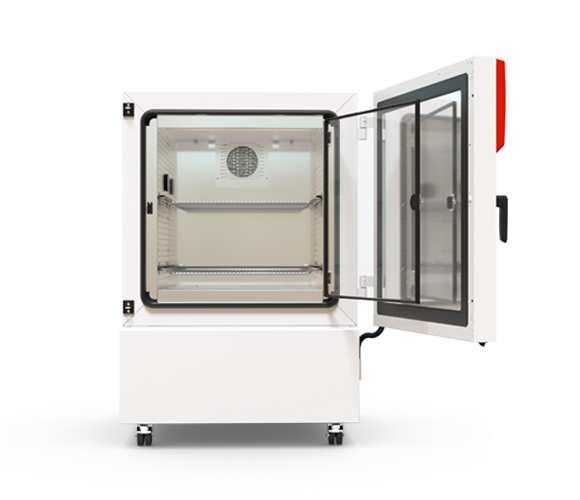

Binder KB 260 cooling incubator
€10.118,00 excl. VAT
- Volume: 262 liter
- Temperature range: 0°C to +70°C
- Proven APT.line™ preheating chamber technology
- Up to 40% lower energy consumption compared to the previous model
- Energy-efficient cooling with modern inverter cooling unit
- Cooling with climate-neutral R-600a refrigerant
- Door heating to prevent condensation
- Robust housing design with HIT sandwich technology
- Interior made completely of stainless steel
- Inner doors made of metal oxide-coated safety glass
- Two racks made of stainless steel
- Large access port with silicone plug
- Tabletop units (up to model 130) are stackable with stacking adapter
- Floor-standing units (from model 260) featuring robust twin casters, with brakes at the front
- Simple programming of a second set temperature value
- Internal data logger, measured values can be read out in open format via USB
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
- Unit self-test for comprehensive status analysis
- Data interfaces: Ethernet, USB
Description
Binder KB 260 Cooling Incubator – High-Performance Cooling for Demanding Laboratory Applications
The Binder KB 260 cooling incubator delivers outstanding temperature precision, energy efficiency, and capacity—making it ideal for demanding laboratory workflows in microbiology, pharmaceutical research, environmental testing, and stability studies. With a temperature range of 0 °C to +70 °C, this versatile unit ensures reliable performance even when fully loaded.
At the heart of the KB 260 is an advanced inverter compressor system, combined with climate-neutral R-600a refrigerant, which reduces energy consumption by up to 40% compared to previous models. Binder’s proven APT.line™ preheating chamber technology guarantees uniform temperature distribution, while the heated door system eliminates condensation—protecting sensitive samples and maintaining clear visibility.
Designed for efficiency and long-term durability, the KB 260 features a robust HIT™ sandwich-construction housing, stainless steel interior, and metal oxide-coated safety glass inner doors. The unit includes a built-in data logger, Ethernet and USB interfaces, and intuitive programming options for multiple temperature setpoints and weekend operation.
The KB 260 is also equipped with a Class 3.3 independent temperature safety device (DIN 12880), providing visual and audible alarms for maximum security.
Key Features:
-
Temperature range: 0 °C to +70 °C
-
Inverter compressor cooling for energy-efficient operation
-
Up to 40% energy savings compared to older models
-
APT.line™ preheating chamber technology for temperature uniformity
-
Climate-neutral R-600a refrigerant
-
Heated door to prevent condensation buildup
-
260-liter stainless steel chamber
-
Robust twin casters with front brakes for mobile flexibility
-
Metal oxide-coated safety glass inner doors
-
Class 3.3 temperature safety device (DIN 12880) with visual and acoustic alarms
-
Internal data logger with USB data export
-
Ethernet connectivity for integration and remote access
The Binder KB 260 combines precise cooling, efficient design, and reliable safety features, making it a top choice for laboratories that demand performance, sustainability, and dependable incubation results.
Specifications
Warranty: 2 years
Lead time: 1-2 weeks
| Designation | KB260-230V |
| Article Number | 9020-0473 |
| Performance Data Temperature | |
| Temperature range | 0…70 °C |
| Temperature uniformity at 37°C | 0.2 ± K |
| Temperature fluctuation at 37°C | 0.1 ± K |
| Max. heat compensation at 37°C | 410 W |
| Recovery time after door was opened for 30 s at 37°C | 3 min |
| Measures | |
| Interior volume | 262 L |
| Net weight of the unit (empty) | 174 kg |
| Load per rack | 30 kg |
| Permitted load | 90 kg |
| Doors | |
| Unit doors | 1 |
| Inner doors | 1 |
| Internal Dimensions | |
| Interior width | 656 mm |
| Interior height | 695 mm |
| Interior depth | 575 mm |
| Wall clearance | |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 180 mm |
| Housing dimensions not incl. fittings and connections | |
| Width net | 930 mm |
| Height net | 1,396 mm |
| Depth net | 900 mm |
| Electrical data | |
| Housing protection acc. to EN 60529 | IP 20 |
| Rated Voltage | 220…240 V |
| Power frequency | 50/60 Hz |
| Nominal power | 1,3 kW |
| Nominal current | 5,4 A |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
| Environment-specific data | |
| Sound-pressure level at 25°C | 50 dB(A) |
| Energy consumption at 37°C | 140 Wh/h |
| Fixtures | |
| Number of shelves (std./max.) | 2/9 |
- LED light bars: LED light bars in three different lengths (30, 50, 90 cm) can be easily and variably positioned in the BINDER unit, including various attachment options and control unit. Additional light bars can be added as desired.
- Access port with silicone plug: For introducing external measuring instruments. Large selection of different diameters
and positions (left, right, or top) - Interior lighting: The climate-resistant LED light switches on automatically when the door is opened.
- Services: You can access our installation, maintenance, calibration, validation, or warranty services by taking out a Maintenance Service Agreement or by simply getting in touch when you need us. More information is available in the accessories and services chapter.
